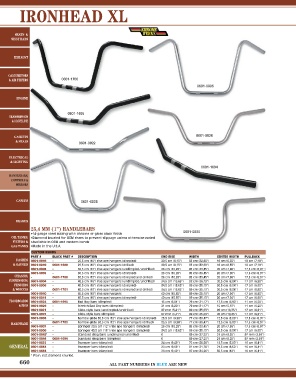

25,4 MM (1”) HANDLEBARS
•14-gauge steel tubing with chrome or gloss black finish 0601-0833
OIL TANKS, •Diamond knurled for OEM risers to prevent slippage unless otherwise noted
FILTERS & •Available in OEM and custom bends
GAS TANKS •Made in the U.S.A.
CUSTOM BENDS
PART # BLACK PART # DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK
DASHES 0601-0816 - 25,5 cm (10”) rise ape hangers (dimpled) 20,5 cm (8,13”) 83 cm (32,80”) 16 cm (6,35”) 18 cm (7,19”)
& GAUGES 0601-0819 0601-1699 25,5 cm (10”) rise ape hangers (drilled) 20,5 cm (8,13”) 83 cm (32,80”) 16 cm (6,35”) 18 cm (7,19”)
0601-0803 - 30,5 cm (12”) rise ape hangers (undimpled/ undrilled) 26 cm (10,20”) 85 cm (33,45”) 20 cm (7,86”) 17,5 cm (6,91”)
0601-0805 - 30,5 cm (12”) rise ape hangers (dimpled) 26 cm (10,20”) 85 cm (33,45”) 20 cm (7,86”) 17,5 cm (6,91”)
CHASSIS, - 0601-1700 30,5 cm (12”) rise ape hangers (dimpled and drilled) 26 cm (10,20”) 85 cm (33,45”) 20 cm (7,86”) 17,5 cm (6,91”)
SUSPENSION, 0601-0804 - 40,5 cm (16”) rise ape hangers (undimpled/ undrilled) 34,5 cm (13,65”) 92 cm (36,13”) 20,5 cm (8,04”) 17 cm (6,80”)
FENDERS 0601-0806 - 40,5 cm (16”) rise ape hangers (dimpled) 34,5 cm (13,65”) 89 cm (35,13”) 20,5 cm (8,04”) 17 cm (6,80”)
& WHEELS - 0601-1701 40,5 cm (16”) rise ape hangers (dimpled and drilled) 34,5 cm (13,65”) 89 cm (35,13”) 20,5 cm (8,04”) 17 cm (6,80”)
0601-0810 - 45,5 cm (18”) rise ape hangers 40 cm (15,65”) 89 cm (35,13”) 20 cm (7,94”) 17 cm (6,80”)
0601-0811 - 45,5 cm (18”) rise ape hangers (dimpled) 40 cm (15,65”) 89 cm (35,13”) 20 cm (7,94”) 17 cm (6,80”)
FLOORBOARDS 0601-0824 0601-1695 Bad Boy bars (dimpled) 15 cm (6,01”) 79 cm (31,17”) 17,5 cm (6,90”) 11 cm (4,20”)
& PEGS 0601-0826 - Stretch Bad Boy bars (dimpled) 21 cm (8,20”) 79 cm (31,17”) 15 cm (5,97”) 11 cm (4,20”)
0601-0821 - Glide-style bars (undimpled/ undrilled) 87 mm (3,41”) 89 cm (35,03”) 26 cm (10,35”) 17 cm (6,81”)
0601-0822 - Glide-style bars (dimpled) 87 mm (3,41”) 89 cm (35,03”) 26 cm (10,35”) 17 cm (6,81”)
0601-0808 - Narrow glide 30,5 cm (12”) rise ape hangers (dimpled) 25,5 cm (9,98”) 77 cm (30,47”) 12,5 cm (5,00”) 17,5 cm (6,91”)
HARDWARE - 0601-1702 Narrow glide 30,5 cm (12”) rise ape hangers (drilled) 25,5 cm (9,98”) 77 cm (30,47”) 12,5 cm (5,00”) 17,5 cm (6,91”)
0601-0807 - Springer 30,5 cm (12”) rise ape hangers (dimpled) 26 cm (10,20”) 85 cm (33,45”) 20 cm (7,86”) 17,5 cm (6,91”)
0601-0809 - Springer 40,5 cm (16”) rise ape hangers (dimpled) 34,5 cm (13,65”) 89 cm (35,13”) 20,5 cm (8,04”) 17 cm (6,80”)
0601-0843 1 - Standard drag bars (undimpled/ undrilled) 0 69 cm (27,23”) 21 cm (8,25”) 97 mm (3,81”)
0601-0844 0601-1694 Standard drag bars (dimpled) 0 69 cm (27,23”) 21 cm (8,25”) 97 mm (3,81”)
0601-0832 - Sweeper bars (dimpled) 24 cm (9,49”) 72 cm (28,26”) 12,5 cm (5,00”) 16 cm (6,41”)
GENERAL 0601-0833 - Sweeper bars (dimpled) 24 cm (9,49”) 81 cm (31,76”) 21,5 cm (8,50”) 16 cm (6,41”)
0601-0834 - Sweeper bars (dimpled) 24 cm (9,49”) 87 cm (34,26”) 30,5 cm (12”) 16 cm (6,41”)
1 Plain, not diamond knurled.
