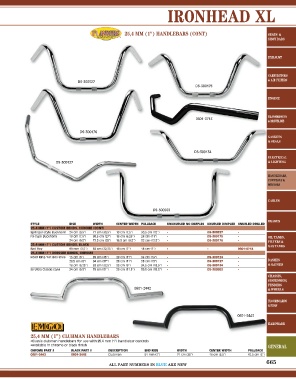

IRONHEAD XL

25,4 MM (1”) HANDLEBARS (CONT) SEATS &
SISSY BARS

EXHAUST

CARBURETORS
& AIR FILTERS
DS-300527
DS-300175

ENGINE

TRANSMISSION
0601-0713
& DRIVELINE
DS-300176
GASKETS
& SEALS

DS-300134
ELECTRICAL
DS-300127 & LIGHTING

HANDLEBARS,
CONTROLS &
MIRRORS

CABLES
DS-300503

BRAKES
STYLE RISE WIDTH CENTER WIDTH PULLBACK UNKNURLED NO DIMPLES KNURLED DIMPLED KNURLED DRILLED
25,4 MM (1”) CUSTOM BENDS, CHROME (CONT)
Springer-style Buckhorn 24 cm (9,5”) 77 cm (30,5”) 19 cm (7,5”) 30,5 cm (12”) - DS-300527 -
FX-type Buckhorn 19 cm (7,5”) 68,5 cm (27”) 16 cm (6,25”) 28 cm (11”) - DS-300175 - OIL TANKS,
24 cm (9,5”) 73,5 cm (29”) 16,5 cm (6,5”) 32 cm (12,5”) - DS-300176 - FILTERS &
25,4 MM (1”) CUSTOM BENDS, BLACK GAS TANKS
Bad Boy 89 mm (3,5”) 82 cm (32,25”) 18 cm (7”) 18 cm (7”) - - 0601-0713
25,4 MM (1”) DRESSER BENDS, CHROME
Road King/ Fat Boy style 15 cm (6”) 89 cm (35”) 28 cm (11”) 33 cm (13”) - DS-300124 -
20,5 cm (8”) 94 cm (37”) 28 cm (11”) 33 cm (13”) - DS-300127 - DASHES
16 cm (6,25”) 83 cm (32,5”) 23 cm (9”) 34,5 cm (13,5”) - DS-300134 - & GAUGES
96 Ultra Classic style 24 cm (9,5”) 79 cm (31”) 29 cm (11,5”) 39,5 cm (15,5”) - DS-300503 -

CHASSIS,
SUSPENSION,
FENDERS
0601-2442 & WHEELS

FLOORBOARDS
& PEGS
0601-2443
HARDWARE

25,4 MM (1”) CLUBMAN HANDLEBARS
•Classic clubman handlebars for use with 25,4 mm (1”) handlebar controls
•Available in chrome or black finish GENERAL
CHROME PART # BLACK PART # DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK
0601-2442 0601-2443 Clubman 51 mm (2”) 71 cm (28”) 14 cm (5,5”) 12,5 cm (5”)

ALL PART NUMBERS IN BLUE ARE NEW 665
