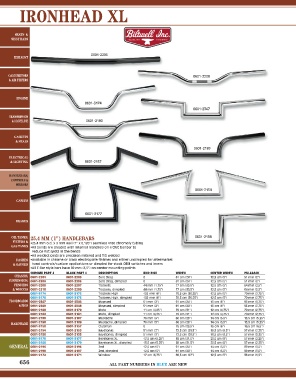

IRONHEAD XL

SEATS &
SISSY BARS

0601-2205
EXHAUST

CARBURETORS 0601-2208
& AIR FILTERS

ENGINE
0601-3174
0601-2347
TRANSMISSION
& DRIVELINE 0601-2180

GASKETS
& SEALS
0601-2189
ELECTRICAL
& LIGHTING 0601-2157

HANDLEBARS,
CONTROLS &
MIRRORS
0601-2154

CABLES

0601-3177
BRAKES

OIL TANKS, 25,4 MM (1”) HANDLEBARS 0601-2198
FILTERS & •25,4 mm o.d. x 3 mm wall (1” x 0,120”) seamless 4130 chromoly tubing
GAS TANKS •All bends are created with internal mandrels on a CNC bender to
reduce flat spots in the bends
•All welded joints are precision mitered and TIG welded
DASHES •Available in chrome or black electroplate finishes and either undimpled for aftermarket
& GAUGES hand controls/ custom applications or dimpled for stock OEM switches and levers
•All T-Bar style bars have 89 mm (3,5”) on-center mounting points
CHROME PART # BLACK PART # DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK
CHASSIS, 0601-2204 0601-2203 Zero Drag 0 61 cm (24”) 12,5 cm (5”) 51 mm (2”)
SUSPENSION, 0601-2206 0601-2205 Zero Drag, dimpled 0 61 cm (24”) 12,5 cm (5”) 51 mm (2”)
FENDERS 0601-2208 0601-2207 Trackers 44 mm (1,75”) 77 cm (30,5”) 12,5 cm (5”) 64 mm (2,5”)
& WHEELS 0601-2210 0601-2209 Trackers, dimpled 44 mm (1,75”) 77 cm (30,5”) 12,5 cm (5”) 64 mm (2,5”)
0601-3174 0601-3173 Trackers High 102 mm (4”) 76,5 cm (30,25”) 12,5 cm (5”) 70 mm (2,75”)
0601-3176 0601-3175 Trackers High, dimpled 102 mm (4”) 76,5 cm (30,25”) 12,5 cm (5”) 70 mm (2,75”)
FLOORBOARDS 0601-2347 0601-2346 Maynard 51 mm (2”) 61 cm (24”) 15 cm (6”) 95 mm (3,75”)
& PEGS 0601-2349 0601-2348 Maynard, dimpled 51 mm (2”) 61 cm (24”) 15 cm (6”) 95 mm (3,75”)
0601-2180 0601-2179 Moto 11 cm (4,25”) 79 cm (31”) 12 cm (4,75”) 70 mm (2,75”)
0601-2182 0601-2181 Moto, dimpled 11 cm (4,25”) 79 cm (31”) 12 cm (4,75”) 70 mm (2,75”)
0601-2188 0601-2187 Mustache 76 mm (3”) 66 cm (26”) 14 cm (5,5”) 13,5 cm (5,25”)
HARDWARE 0601-2190 0601-2189 Mustache, dimpled 76 mm (3”) 66 cm (26”) 14 cm (5,5”) 13,5 cm (5,25”)
0601-2158 0601-2157 Clubman 0 75 cm (29,5”) 15 cm (6”) 16,5 cm (6,5”)
0601-2154 0601-2153 Keystones 51 mm (2”) 72,5 cm (28,5”) 16,5 cm (6,5”) 57 mm (2,25”)
0601-2156 0601-2155 Keystones, dimpled 51 mm (2”) 72,5 cm (28,5”) 16,5 cm (6,5”) 57 mm (2,25”)
0601-3178 0601-3177 Keystones XL 13,5 cm (5,25”) 80 cm (31,5”) 20,5 cm (8”) 57 mm (2,25”)
0601-3180 0601-3179 Keystones XL, dimpled 13,5 cm (5,25”) 80 cm (31,5”) 20,5 cm (8”) 57 mm (2,25”)
GENERAL 0601-2196 0601-2195 Zed 12,5 cm (5”) 61 cm (24”) 14 cm (5,5”) 89 mm (3,5”)
0601-2198 0601-2197 Zed, dimpled 12,5 cm (5”) 61 cm (24”) 14 cm (5,5”) 89 mm (3,5”)
0601-2172 0601-2171 Window 17 cm (6,75”) 68,5 cm (27”) 12,5 cm (5”) 38 mm (1,5”)

656 ALL PART NUMBERS IN BLUE ARE NEW
