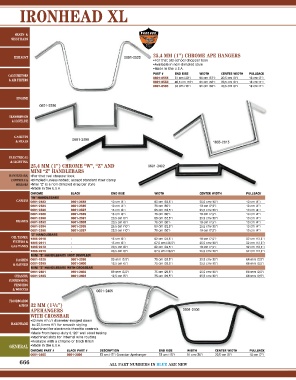

Page 668 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS

25,4 MM (1”) CHROME APE HANGERS
EXHAUST 0601-0533
•For that old-school chopper look
•Available in non-dimpled style
•Made in the U.S.A.
CARBURETORS PART # END RISE WIDTH CENTER WIDTH PULLBACK
51 cm (20”)
0601‑0533
20,5 cm (8”)
94 cm (37”)
18 cm (7”)
& AIR FILTERS
0601‑0534 40,5 cm (16”) 91 cm (36”) 20,5 cm (8”) 18 cm (7”)
0601‑0535 33 cm (13”) 91 cm (36”) 20,5 cm (8”) 18 cm (7”)

ENGINE
0601-2386
TRANSMISSION
& DRIVELINE

GASKETS
& SEALS 0601-2398 1803-2613

ELECTRICAL
& LIGHTING
25,4 MM (1”) CHROME “W”, “Z” AND 0601-2402
MINI “Z” HANDLEBARS
HANDLEBARS, •For that real chopper look
CONTROLS & •Dimpled (unless noted); accept standard riser clamp
MIRRORS •Mini “Z” is a non-dimpled drag bar style
•Made in the U.S.A.
CHROME BLACK END RISE WIDTH CENTER WIDTH PULLBACK
“W” HANDLEBARS
CABLES 0601‑2382 0601‑2383 10 cm (4”) 83 cm (32,5”) 25,5 cm (10”) 10 cm (4”)
0601‑2384 0601‑2385 10 cm (4”) 76 cm (30”) 19 cm (7,5”) 10 cm (4”)
0601‑2386 0601‑2387 15 cm (6”) 83 cm (32,5”) 25,5 cm (10”) 10 cm (4”)
0601‑2388 0601‑2389 15 cm (6”) 76 cm (30”) 19 cm (7,5”) 10 cm (4”)
0601‑2390 0601‑2391 20,5 cm (8”) 83 cm (32,5”) 25,5 cm (10”) 10 cm (4”)
BRAKES 0601‑2392 0601‑2393 20,5 cm (8”) 76 cm (30”) 19 cm (7,5”) 10 cm (4”)
0601‑2394 0601‑2395 25,5 cm (10”) 83 cm (32,5”) 25,5 cm (10”) 10 cm (4”)
0601‑2396 0601‑2397 25,5 cm (10”) 76 cm (30”) 19 cm (7,5”) 10 cm (4”)
“Z” HANDLEBARS
OIL TANKS, 1803‑2610 ‑ 15 cm (6”) 62 cm (24,5”) 19 cm (7,5”) 32 cm (12,5”)
FILTERS & 1803‑2611 ‑ 15 cm (6”) 67,5 cm (26,5”) 25,5 cm (10”) 32 cm (12,5”)
GAS TANKS 1803‑2612 ‑ 20,5 cm (8”) 62 cm (24,5”) 19 cm (7,5”) 32 cm (12,5”)
1803‑2613 ‑ 20,5 cm (8”) 67,5 cm (26,5”) 25,5 cm (10”) 32 cm (12,5”)
MINI “Z” HANDLEBARS (NOT DIMPLED)
DASHES 0601‑1326 0601‑2398 89 mm (3,5”) 75 cm (29,5”) 25,5 cm (10”) 64 mm (2,5”)
& GAUGES 0601‑2399 0601‑2400 12,5 cm (5”) 75 cm (29,5”) 25,5 cm (10”) 64 mm (2,5”)
MINI “Z” HANDLEBARS WITH CROSSBAR
0601‑2401 0601‑2402 89 mm (3,5”) 75 cm (29,5”) 25,5 cm (10”) 64 mm (2,5”)
CHASSIS, 0601‑2403 0601‑2404 12,5 cm (5”) 75 cm (29,5”) 25,5 cm (10”) 64 mm (2,5”)
SUSPENSION,
FENDERS
& WHEELS 0601-2405

FLOORBOARDS
& PEGS 32 MM (1 /4”)
1
APEHANGERS 0601-2406
WITH CROSSBAR
1
•32 mm (1 /4”) diameter swaged down
HARDWARE to 25,4 mm (1”) for smooth styling
•Machined for electronic throttle controls
•Made from heavy-duty 0,120” wall steel tubing
•Machined slots for internal wire routing
•Available with a chrome or black finish
GENERAL •Made in the U.S.A.
CHROME PART # BLACK PART # DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK
0601‑2405 0601‑2406 33 cm (13”) Crossbar Apehanger 33 cm (13”) 91 cm (36”) 20,5 cm (8”) 18 cm (7”)

666 ALL PART NUMBERS IN BLUE ARE NEW
