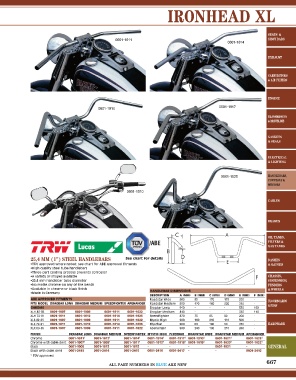

Page 669 - Oldbook 2017

IRONHEAD XL

SEATS &
0601-1611 SISSY BARS
0601-1614

EXHAUST

CARBURETORS
& AIR FILTERS

ENGINE
0601-1917
0601-1914
TRANSMISSION
& DRIVELINE

GASKETS
& SEALS

ELECTRICAL
& LIGHTING

0601-1623 HANDLEBARS,
CONTROLS &
MIRRORS
0601-1310

CABLES

BRAKES

OIL TANKS,
FILTERS &
GAS TANKS

25,4 MM (1”) STEEL HANDLEBARS See chart for details DASHES
•TÜV approved where noted; see chart for ABE approved fitments & GAUGES
•High quality steel tube handlebars
•Three-part coating process prevents corrosion
•A variety of shapes available CHASSIS,
•25,4 mm handlebar tube diameter SUSPENSION,
•No matte chrome on any of the bends FENDERS
•Available in chrome or black finish HANDLEBAR DIMENSIONS & WHEELS
•Made in Germany
DESCRIPTION A (MM) B (MM) C (MM) D (MM) E (MM) F (MM)
ABE APPROVED FITMENTS Roadstar Wide 980 85 170 175 220 - FLOORBOARDS
FITS MODEL DRAGBAR LONG DRAGBAR MEDIUM SPEEDFIGHTER APEHANGER Roadstar Medium 920 170 160 300 240 -
CHROME Dragbar Long 910 - - - 330 160 & PEGS
XLH 82-85 0601‑1907 0601‑1909 0601‑1911 0601‑1622 Dragbar Medium 810 - - - 330 110
XLH 72-81 0601‑1611 0601‑1612 0601‑1614 0601‑1623 Speedfighter 870 75 85 80 200 -
XLS 82-85 0601‑1907 0601‑1909 0601‑1911 0601‑1622 Mystic High 920 160 210 110 300 -
XLS 79-81 0601‑1611 0601‑1612 0601‑1614 0601‑1623 Flyerbar 960 60 180 30 230 - HARDWARE
XLX 83-85 0601‑1907 0601‑1909 0601‑1911 0601‑1622 Apehanger 930 240 180 210 260 -

FINISH DRAGBAR LONG DRAGBAR MEDIUM SPEEDFIGHTER MYSTIC HIGH FLYERBAR ROADSTAR WIDE ROADSTAR MEDIUM APEHANGER
Chrome 0601‑1611 1 0601‑1612 1 0601‑1614 1 0601‑1914 1 0601‑1917 1 0601‑1310 1 0601‑1621 1 0601‑1623 1
Chrome with cable dent 0601‑1907 1 0601‑1909 1 0601‑1911 1 0601‑1913 1 0601‑1916 1 0601‑1619 1 0601‑1620 1 0601‑1622 1
Black 0601‑1908 0601‑1613 0601‑1615 ‑ ‑ ‑ 0601‑1921 ‑ GENERAL
Black with cable dent 0601‑2413 0601‑2414 0601‑2415 0601‑2416 0601‑2417 ‑ ‑ 0601‑2412
1 TÜV approved.
667
ALL PART NUMBERS IN BLUE ARE NEW
