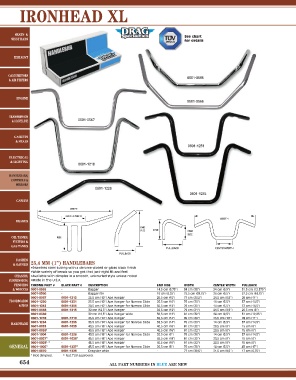

Page 656 - Oldbook 2017

IRONHEAD XL

SEATS & See chart
SISSY BARS
for details

EXHAUST

CARBURETORS 0601‑0565
& AIR FILTERS

ENGINE
0601‑0566

TRANSMISSION
& DRIVELINE 0601‑0567

GASKETS
& SEALS
0601‑1231
ELECTRICAL
& LIGHTING
0601‑1218
HANDLEBARS,
CONTROLS &
MIRRORS
0601‑1226
0601‑1235
CABLES

BRAKES

OIL TANKS,
FILTERS &
GAS TANKS

DASHES
& GAUGES 25,4 MM (1”) HANDLEBARS
•Seamless steel tubing with a chrome‑plated or gloss black finish
•Wide variety of bends so you get that just‑right fit and feel
CHASSIS, •Available with dimples in a smooth, unknurled style unless noted
SUSPENSION, •Made in the U.S.A.
FENDERS CHROME PART # BLACK PART # DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK
& WHEELS 0601‑0565 ‑ Bagger 14,5 cm (5,75”) 84 cm (33”) 24 cm (9,5”) 31,5 cm (12,375”)
0601‑0566 ‑ Bagger/RK 16 cm (6,25”) 75,5 cm (29,75”) 24 cm (9,5”) 37,5 cm (14,75”)
0601‑0567 0601‑1212 25,5 cm (10”) Ape Hanger 25,5 cm (10”) 77 cm (30,5”) 21,5 cm (8,5”) 28 cm (11”)
FLOORBOARDS 0601‑1230 0601‑1231 25,5 cm (10”) Ape Hanger for Narrow Glide 25,5 cm (10”) 76 cm (30”) 14 cm (5,5”) 37 cm (14,5”)
& PEGS 0601‑1232 0601‑1233 30,5 cm (12”) Ape Hanger for Narrow Glide 30,5 cm (12”) 76 cm (30”) 14 cm (5,5”) 37 cm (14,5”)
0601‑0568 0601‑1215 32 cm (12,5”) Ape Hanger 30,5 cm (12”) 79 cm (31”) 21,5 cm (8,5”) 20,5 cm (8”)
0601‑0569 ‑ 32 cm (12,5”) Ape Hanger wide 30,5 cm (12”) 81 cm (32”) 24 cm (9,5”) 31 cm (12,25”)
0601‑1218 0601‑1219 35,5 cm (14”) Ape Hanger 35,5 cm (14”) 99 cm (39”) 25,5 cm (10”) 28 cm (11”)
HARDWARE 0601‑1234 0601‑1235 35,5 cm (14”) Ape Hanger for Narrow Glide 35,5 cm (14”) 76 cm (30”) 14 cm (5,5”) 37 cm (14,5”)
0601‑0025 0601‑1025 40,5 cm (16”) Ape Hanger 40,5 cm (16”) 81 cm (32”) 20,5 cm (8”) 15 cm (6”)
0601‑0026 1 ‑ 40,5 cm (16”) Ape Hanger 40,5 cm (16”) 81 cm (32”) 20,5 cm (8”) 15 cm (6”)
0601‑1004 0601‑1236 40,5 cm (16”) Ape Hanger for Narrow Glide 20,5 cm (8”) 76 cm (30”) 14 cm (5,5”) 37 cm (14,5”)
0601‑0027 3 0601‑1026 3 45,5 cm (18”) Ape Hanger 45,5 cm (18”) 81 cm (32”) 20,5 cm (8”) 15 cm (6”)
0601‑0028 1, 3 ‑ 45,5 cm (18”) Ape Hanger 45,5 cm (18”) 81 cm (32”) 20,5 cm (8”) 15 cm (6”)
GENERAL 0601‑1005 3 0601‑1237 3 45,5 cm (18”) Ape Hanger for Narrow Glide 20,5 cm (8”) 76 cm (30”) 14 cm (5,5”) 43 cm (17”)
0601‑0570 0601‑1226 Dragster wide ‑ 77 cm (30,5”) 21,5 cm (8,5”) 17 cm (6,75”)
1 Not dimpled. 3 Not TÜV approved.
654 ALL PART NUMBERS IN BLUE ARE NEW
