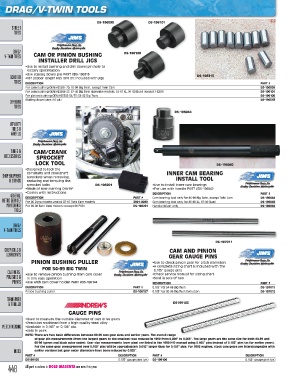

Page 448 - Tires 2017

DRAG/V-TWIN TOOLS

DS‑196099 DS‑196101
STREET
TIRES

DRAG/ DS‑196100
V-TWIN TIRES CAM OR PINION BUSHING
INSTALLER DRILL JIGS
•Use to install bushing and drill dowel pin hole to
factory specification
•Use staking dowel pin PART #DS‑196313
SCOOTER •#31 jobber length HSS drill bit included with jigs DS‑196313
TIRES DESCRIPTION PART #
For cam bushing OEM #25581‑70; 70‑99 Big Twin, except Twin Cam DS‑196099
For cam bushing OEM #22586‑37; 37‑48 Big Twin sidevalve motors, 54‑17 XL, 91‑09 Buell (except 1125R) DS‑196101
For pinion bushing OEM #25582‑54/73; 54‑92 Big Twin DS‑196100
OFFROAD Staking dowel pins (10‑pk.) DS‑196313

TIRES
DS‑196044

ATV/UTV
TIRES &
WHEELS

TUBES & CAM/ CRANK
ACCESSORIES SPROCKET
LOCK TOOL DS‑196042
•Designed to lock the
SHOP EQUIPMENT camshafts and crankshaft INNER CAM BEARING
sprockets when removing,
& STANDS replacing and torquing the INSTALL TOOL
sprocket bolts DS‑196201 •Use to install inner cam bearings
•Made of non‑marring Delrin ® •For use with handle PART #DS‑196042
•Comes with instructions DESCRIPTION PART #
GENERAL, DESCRIPTION PART # Cam bearing tool only for 84‑99 Big Twin, except Twin Cam DS‑196044
METRIC SERVICE/ For 06 Dyna models and all 07‑17 Twin Cam models 3801‑0060 Cam bearing tool only for 86‑90 XL, 87‑90 Buell DS‑196043
MAINTENANCE For 99‑06 Twin Cam motors (except 06 FXD) DS‑196201 Handle/ driver only DS‑196042
TOOLS

DRAG/
V-TWIN TOOLS

DS‑197011
CHEMICALS & CAM AND PINION
LUBRICANTS GEAR GAUGE PINS
PINION BUSHING PULLER •Use to check pinion gear for pitch diameters
FOR 54‑99 BIG TWIN •A complete sizing chart is included with the
CLEANERS, 0,105” gauge pins
POLISHES & •Use to remove pinion bushing from cam cover •Check service manual for sizing chart
•Sold in sets of two
in one easy operation
PAINTS •Use with cam cover holder PART #DS‑196144 DESCRIPTION PART #
DESCRIPTION PART # 0,105” for 54‑89 Big Twin DS‑197011
Pinion bushing puller DS‑196157 0,108” for 90‑99 Big Twin Evolution DS‑197012

TRANSPORT
& TRAILER DS199105
GAUGE PINS
•Used to measure the outside diameter of cam drive gears
•Precision machined from a high‑quality steel alloy
MERCHANDISING •Available in 0,105” or 0,108” dia.
•Sold in pairs
NOTE: There are two basic differences between 90‑99 cam gear sizes and earlier years. The overall range
of gear pin measurements (from the largest gears to the smallest) was reduced in 1990 from 0,006” to 0,003”. The large gears are the same size for both 84‑89 and
90‑99 (green and black color codes). Gear size measurements (over pins) are listed in the 1990 H‑D manual using 0,108” pins instead of 0,105” pins (as for earlier years).
For the same gear, measurement over 0,108” pins will be approximately 0,012” larger than for 0,105” pins. For 1992 engines, stock cam gears are interchangeable with
INDEX earlier versions but gear outer diameters have been reduced by 0,025”.
PART # DESCRIPTION PART # DESCRIPTION
DS199105 0,105” gauge pins (pr.) DS‑199106 0,108” gauge pins (pr.)

448 All part numbers in BOLD MAGENTA are new this year.
