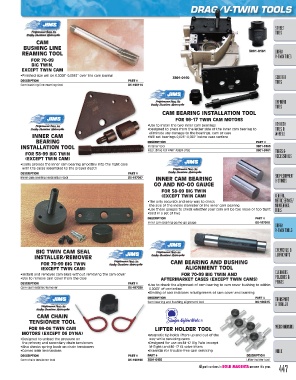

Page 447 - Tires 2017

DRAG/V-TWIN TOOLS

STREET
TIRES
CAM
BUSHING LINE
REAMING TOOL 3801-0161 DRAG/
V-TWIN TIRES
FOR 70-99
BIG TWIN,
EXCEPT TWIN CAM
•Finished size will be 0,0008”-0,0015” over the cam journal 3801-0160 SCOOTER
DESCRIPTION PART # TIRES
Cam bushing line reaming tool DS-196114

OFFROAD
TIRES
CAM BEARING INSTALLATION TOOL
FOR 99-17 TWIN CAM MOTORS
•Use to install the two inner cam bearings ATV/UTV
•Designed to press from the letter side of the inner cam bearing to TIRES &
eliminate any damage to the bearings, cam or case
INNER CAM •Will set bearings 0,023”-0,028” below case surface WHEELS
BEARING DESCRIPTION PART #
INSTALLATION TOOL Installer tool 3801-0160
FOR 58-99 BIG TWIN Repl. drive for PART #3801-0160 3801-0161 TUBES &

ACCESSORIES
(EXCEPT TWIN CAM)
•Easily presses the inner cam bearing smoothly into the right case
with the cases assembled to the proper depth
DESCRIPTION PART #
Inner cam bearing installation tool DS-197047 INNER CAM BEARING SHOP EQUIPMENT
& STANDS
GO AND NO-GO GAUGE
FOR 58-99 BIG TWIN
(EXCEPT TWIN CAM) GENERAL,
•The only accurate and easy way to check METRIC SERVICE/
the size of the inside diameter of the inner cam bearing MAINTENANCE
•Use these gauges to check whether your cam will be too loose or too tight TOOLS
•Sold in a set of two
DESCRIPTION PART #
Inner cam bearing go/no-go gauge DS-197010
DRAG/
V-TWIN TOOLS

BIG TWIN CAM SEAL CHEMICALS &
INSTALLER/ REMOVER LUBRICANTS
FOR 70-99 BIG TWIN CAM BEARING AND BUSHING
(EXCEPT TWIN CAM) ALIGNMENT TOOL
•Installs and removes cam seals without removing the cam cover FOR 70-99 BIG TWIN AND CLEANERS,
•Use to remove cam cover from the case AFTERMARKET CASES (EXCEPT TWIN CAMS) POLISHES &
DESCRIPTION PART # •Use to check the alignment of cam bearing to cam cover bushing to within PAINTS
Cam seal installer/ remover DS-197036 0,0003” of centerline
•Binding of tool indicates misalignment of cam cover and bushing
DESCRIPTION PART # TRANSPORT
Cam bearing and bushing alignment tool DS-196315 & TRAILER

CAM CHAIN
TENSIONER TOOL
FOR 99-06 TWIN CAM LIFTER HOLDER TOOL MERCHANDISING
MOTORS (EXCEPT 06 DYNA) •Magnetic tip holds lifters up and out of the
•Designed to unload the pressure on way while servicing cams
the primary and secondary chain tensioners •Designed for use on 84-17 Big Twin (except
•Also checks spring loads on chain tensioners M-Eight) and 86-17 XL valve lifters
•Comes with instructions •Essential for trouble-free cam servicing INDEX
DESCRIPTION PART # PART # DESCRIPTION
Cam chain tensioner tool DS-196196 3801-0158 Lifter holder tool

447
All part numbers in BOLD MAGENTA are new this year.
