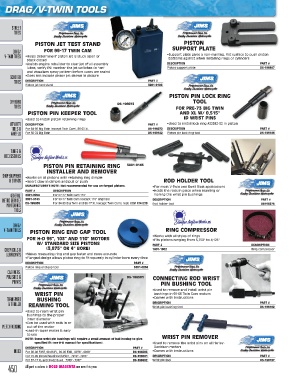

Page 450 - Tires 2017

DRAG/V-TWIN TOOLS

STREET
TIRES

PISTON JET TEST STAND PISTON
DRAG/ FOR 99‑17 TWIN CAM SUPPORT PLATE
V-TWIN TIRES •Helps determine if piston jet is stuck open or •Support plate gives a non‑marring, flat surface to push piston
bottoms against when installing rings or cylinders
stuck closed
•Assists engine rebuilder to clear jet of all assembly DESCRIPTION PART #
lubes; verify PSI number the jet switches to “on” Piston support plate DS‑196407
and visualizes spray pattern before cases are sealed
SCOOTER •Does not include piston jet shown in picture
TIRES DESCRIPTION PART #
Piston jet test stand 3801‑0194

PISTON PIN LOCK RING
OFFROAD DS‑196072 TOOL
TIRES FOR PRE‑73 BIG TWIN
PISTON PIN KEEPER TOOL AND XL W/ 0,515”
•Used to install piston retaining rings ID WRIST PINS
ATV/UTV DESCRIPTION PART # •Used to install lock ring #22582‑52 in piston
TIRES & For 84‑99 Big Twin (except Twin Cam), 86‑03 XL DS‑196072 DESCRIPTION PART #
WHEELS For 36‑72 Big Twin DS‑199102 Piston pin lock ring tool DS‑196166

TUBES &
ACCESSORIES
PISTON PIN RETAINING RING 3801‑0143
INSTALLER AND REMOVER
SHOP EQUIPMENT •Works on all pistons with retaining ring dimple
& STANDS •Insert claw in dimple and pull or push ROD HOLDER TOOL
MANUFACTURER’S NOTE: Not recommended for use on forged pistons. •For most V‑Twin and Buell Blast applications
PART # DESCRIPTION •Holds the rods in place when reaming or
GENERAL, 3801‑0254 For 07‑17 Twin Cam 110” honing the wrist pin bushings
METRIC SERVICE/ 3801‑0143 For 99‑17 Twin Cam (except 110” engines) DESCRIPTION PART #
MAINTENANCE DS‑198808 For 84‑99 Big Twin and 86‑17 XL (except Twin Cam); repl. OEM #34623B Rod holder tool DS196276

TOOLS
DRAG/
V-TWIN TOOLS PISTON RING END GAP TOOL RING COMPRESSOR
FOR H‑D 95”, 103” AND 110” MOTORS •Works with all styles of rings
•Fits pistons ranging from 3,750” to 4,125”
W/ STANDARD SIZE PISTONS PART # DESCRIPTION
CHEMICALS & (3,875” OR 4” BORE) 1601‑1602 Ring compressor
LUBRICANTS •Makes measuring ring end gap faster and more accurate
•Flanged design allows piston ring to fit squarely in cylinder bore every time
DESCRIPTION PART #
Piston ring end gap tool 3801‑0236
CLEANERS,
POLISHES & DS‑196501 CONNECTING ROD WRIST
PAINTS PIN BUSHING TOOL

•Used to remove and install wrist pin
WRIST PIN bushings in 99‑06 Twin Cam motors
TRANSPORT BUSHING •Comes with instructions
& TRAILER REAMING TOOL DESCRIPTION PART #
Wrist pin bushing tool
DS‑196192
•Used to ream wrist pin
bushings to the proper
inner diameter
•Can be used with rods in or
MERCHANDISING out of the motor
•Lead‑in taper makes it easy
to use
NOTE: Some wrist pin bushings will require a small amount of ball honing to give WRIST PIN REMOVER
specified fit (see H‑D manual for specifications). •Used to remove the wrist pins on all Harley‑
DESCRIPTION PART # Davidson motors
INDEX For 00‑06 FXST, 99‑06 FL, 99‑05 FXD, .9276”‑.9280” DS‑196503 •Comes with instructions
For 73‑99 Shovelhead/ Evolution, .7919”‑.7923” DS‑196501 DESCRIPTION PART #
For 57‑17 XL and 94‑02 Buell, .7913”‑.7917” DS‑196502 Wrist pin tool DS‑196197

450 All part numbers in BOLD MAGENTA are new this year.
