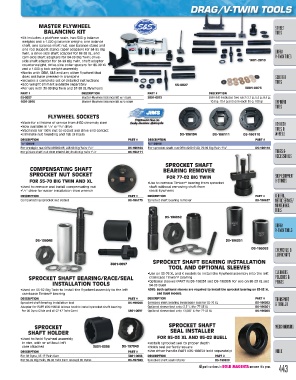

Page 443 - Tires 2017

DRAG/V-TWIN TOOLS

MASTER FLYWHEEL STREET
BALANCING KIT TIRES
•Kit includes: a platform scale, two 500 g balance
weights and a 1.000 g balance weight; one balance
shaft, one balance shaft nut, one balance stand and
one rod support stand; taper adapters for 84-85 Big DRAG/
Twin, a drive-side shaft adapter for 86-99 XL, and
cam-side shaft adapters for 84-99 Big Twin; drive- V-TWIN TIRES
side shaft adapter for 84-99 Big Twin, shaft adapter 1601‑2910
counterweight, drive-side collar spacers for 86-99 XL
and a 1.000 g bob weight assembly
•Works with OEM, S&S and any other flywheel that
does not have pressed-in crankpins SCOOTER
•Includes a complete set of detailed instructions TIRES
•Bob weight shim kit available separately 53‑0027
•For use with 36-99 Big Twin and 57-99 XL flywheels 3801‑0073
PART # DESCRIPTION PART # DESCRIPTION
53‑0027 Master flywheel balance kit w/ scale 3801‑0073 Shim kit (includes two each 2,7 g; 5,4 g; 8,1 g;
1601‑2910 Master flywheel balance kit w/o scale 10,8 g; 13,4 g and one each 50 g, 100 g) OFFROAD
TIRES

FLYWHEEL SOCKETS
•Made for a lifetime of service from 4130 chromoly steel ATV/UTV
•Now available in /2” or /4” drive TIRES &
3
1
•Machined for 100% nut-to-socket and drive-end contact
•Eliminate nut rounding and risk of injury DS‑196104 DS‑196111 DS‑196110 WHEELS
DESCRIPTION PART # DESCRIPTION PART #
1 /2” DRIVE 3 /4” DRIVE
For crankpin nut OEM #23969-83; L83-99 Big Twin 1 1 /2” DS‑196104 For sprocket shaft nut OEM #24017-80; 72-99 Big Twin 1 5 /8” DS‑196110
For pinion shaft nut OEM #24016-80; 81-89 Big Twin 1 1 /4” DS‑196111 TUBES &
ACCESSORIES
SPROCKET SHAFT
COMPENSATING SHAFT BEARING REMOVER
SPROCKET NUT SOCKET FOR 77‑02 BIG TWIN SHOP EQUIPMENT
FOR 55‑70 BIG TWIN AND XL •Use to remove Timken bearing from sprocket & STANDS
®
•Used to remove and install compensating nut shaft without removing shaft from
1
• /2” drive for easier installation than wrench stock flywheels
DESCRIPTION PART # DESCRIPTION PART # GENERAL,
Compensating sprocket nut socket DS‑196175 Sprocket shaft bearing remover DS‑198627 METRIC SERVICE/
MAINTENANCE
TOOLS
DS‑196052
DRAG/
V-TWIN TOOLS

DS‑196048 DS‑196051
DS‑196053 CHEMICALS &
LUBRICANTS
SPROCKET SHAFT BEARING INSTALLATION
3801‑0097
TOOL AND OPTIONAL SLEEVES
•Use on 55-76 XL and K models to install the flywheel assembly into the left CLEANERS,
SPROCKET SHAFT BEARING/ RACE/ SEAL crankcase Timken bearing POLISHES &
®
INSTALLATION TOOLS •Optional sleeves (PART #s DS-196051 and DS-196053) for use on 86-03 XL and PAINTS
94-03 Buell
•Used on 55-02 Big Twin to install the flywheel assembly to the left NOTE: Both optional sleeves are required to install the sprocket bearing on 83‑03 XL
crankcase Timken bearing and Buell models.
®
DESCRIPTION PART # DESCRIPTION PART # TRANSPORT
Sprocket shaft bearing installation tool DS‑196048 Sprocket shaft bearing installation tool for 55-76 XL DS‑196052 & TRAILER
Adapter for PART #DS-196048 (allows tool to install sprocket shaft bearing Optional sleeve tool only (2,5” L) for 77-03 XL DS‑196051
for 06 Dyna Glide and all 07-17 Twin Cam) 3801‑0097 Optional sleeve tool only (2,060” L) for 77-03 XL DS‑196053

SPROCKET SPROCKET SHAFT MERCHANDISING
SHAFT HOLDER SEAL INSTALLER
•Used to hold flywheel assembly FOR 95‑03 XL AND 95‑02 BUELL
in vise, with or without left •Installs sprocket seal to proper depth
case attached 3801‑0098 DS‑197049 •Holds seal perfectly square
DESCRIPTION PART # •Use driver handle PART #DS-198634 (sold separately) INDEX
For 06 Dyna, 07-17 Twin Cam 3801‑0098 DESCRIPTION PART #
For 55-99 Big Twin, 99-06 Twin Cam (except 06 Dyna) DS‑197049 Sprocket shaft seal installer DS‑198628

443
All part numbers in BOLD MAGENTA are new this year.
