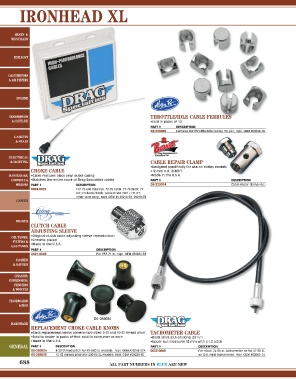

IRONHEAD XL

SEATS &
SISSY BARS

EXHAUST

CARBURETORS
& AIR FILTERS

ENGINE

TRANSMISSION THROTTLE/ IDLE CABLE FERRULES
& DRIVELINE •Sold in packs of 10
PART # DESCRIPTION
DS‑223069 Ferrules for throttle/ idle cables (10‑pk.); repl. OEM #56508‑76

GASKETS
& SEALS

ELECTRICAL
& LIGHTING CABLE REPAIR CLAMP
•Designed specifically for use on Harley models
CHOKE CABLE •12 mm o.d. (0,460”)
HANDLEBARS, •Cable features black vinyl outer casing •Made in the U.S.A.
CONTROLS & •Matches the entire stock of Drag Specialties cables PART # DESCRIPTION
MIRRORS PART # DESCRIPTION DS‑223014 Cable repair clamp (ea.)
0654‑0027 For 72‑E80 XLH/ XLS, 72‑79 XLCH, 77‑78 XLCR, 77
XLT (includes knob; cable is 284 mm L (11,2”):
inner wire only); repl. OEM #s 29216‑72, 29219‑78
CABLES

BRAKES
CLUTCH CABLE
ADJUSTING SLEEVE
OIL TANKS, •Original clutch cable adjusting sleeve reproduction
FILTERS & •Chrome‑plated
GAS TANKS •Made in the U.S.A.
PART # DESCRIPTION
2401‑0529 For E57‑71 XL; repl. OEM #38654‑53
DASHES
& GAUGES

CHASSIS,
SUSPENSION,
FENDERS
& WHEELS

FLOORBOARDS
& PEGS

DS‑289034
HARDWARE
REPLACEMENT CHOKE CABLE KNOBS
•Black replacement knobs come in two sizes: 8‑32 and 10‑32 thread pitch TACHOMETER CABLE
•Sold to dealer in packs of five; sold to consumer as each •Black vinyl; 82,5 cm long (32 /2”)
1
•Made in the U.S.A. •Upper nut measures 12 mm with a 1,0 pitch
GENERAL PART # DESCRIPTION PART # DESCRIPTION
DS‑289034 8‑32 thread pitch for 67‑E80 XL models; repl. OEM #29214‑67A 0656‑0008 For stock 74‑80 XL tachometer or for 57‑80 XL
DS‑289035 10‑32 thread pitch for L80‑85 XL models; repl. OEM #29228‑80 w/ D.S. mini tachometer; repl. OEM #92065‑74

688 ALL PART NUMBERS IN BLUE ARE NEW
