IRONHEAD XL

SEATS &
SISSY BARS

EXHAUST

CARBURETORS
& AIR FILTERS

ENGINE

TRANSMISSION
& DRIVELINE

GASKETS
& SEALS

ELECTRICAL
& LIGHTING

HANDLEBARS,
CONTROLS &
MIRRORS

CABLES

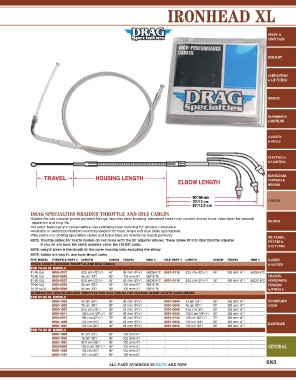

DRAG SPECIALTIES BRAIDED THROTTLE AND IDLE CABLES
•Cables feature chrome-plated polished fittings, stainless-steel braiding, tempered steel inner conduit and an inner nylon liner for smooth
operation and long life BRAKES
•All outer housings are coated with a non-yellowing clear covering for abrasion resistance
•Available in undersize/ standard/ oversize lengths for most single and dual cable applications
•The entire line of Drag Specialties cables and brake lines are braided to match perfectly OIL TANKS,
NOTE: Throttle cables for 74-E76 models do not come with the 90° adjuster elbows. These cables fit into OEM throttle adjuster. FILTERS &
If you do not have the stock adjuster, order the L76-E81 cable. GAS TANKS
NOTE: Length given is the length of the outer housing only, excluding the elbow.
NOTE: Cables will also fit late style Mikuni carbs.
FITS MODEL THROTTLE PART # LENGTH ELBOW TRAVEL OEM # IDLE PART # LENGTH ELBOW TRAVEL OEM # DASHES
STOCK LENGTH BRAIDED THROTTLE AND IDLE CABLES & GAUGES
FOR 74-85 XL MODELS
1
3
1
81-85 XLH 0650-0307 82,5 cm (32 /2”) 45° 95 mm (3 /4”) 56324-81C 0651-0118 82,5 cm (32 /2”) 45° 102 mm (4”) 56323-81C
74-80 XLH 0650-0309 84 cm (33”) 90° 102 mm (4”) 56313-76 - - - - - CHASSIS,
3
1
81-82 XLS 0650-0307 82,5 cm (32 1 /2”) 45° 95 mm (3 /4”) 56324-81C 0651-0118 82,5 cm (32 /2”) 45° 102 mm (4”) 56323-81C SUSPENSION,
79-80 XLS 0650-0309 84 cm (33”) 90° 102 mm (4”) 56313-76 - - - - - FENDERS
74-79 XLCH 0650-0309 84 cm (33”) 90° 102 mm (4”) 56313-76 - - - - - & WHEELS
ALTERNATIVE LENGTH BRAIDED THROTTLE AND IDLE CABLES FOR CUSTOM HEIGHT/ WIDTH HANDLEBARS
FOR 81-85 XL MODELS
0650-1083 61 cm (24”) 90° 95 mm (3 /4”) - 0651-0644 61 cm (24”) 90° 102 mm (4”) - FLOORBOARDS
3
0650-1085 76 cm (30”) 90° 95 mm (3 3 /4”) - 0651-0646 76 cm (30”) 90° 102 mm (4”) - & PEGS
0650-1087 91,5 cm (36”) 90° 95 mm (3 3 /4”) - 0651-0648 91,5 cm (36”) 90° 102 mm (4”) -
0650-0411 100,5 cm (39 1 /2”) 90° 95 mm (3 /4”) - 0651-0242 100,5 cm (39 /2”) 90° 102 mm (4”) -
3
1
0650-0313 108 cm (42 1 /2”) 70° 95 mm (3 /4”) - 0651-0126 108 cm (42 /2”) 70° 102 mm (4”) -
3
1
0650-1089 112 cm (44”) 90° 95 mm (3 3 /4”) - 0651-0650 112 cm (44”) 90° 102 mm (4”) - HARDWARE
0650-1091 122 cm (48”) 90° 95 mm (3 3 /4”) - 0651-0652 122 cm (48”) 90° 102 mm (4”) -
FOR 74-80 XL MODELS
0650-1093 61 cm (24”) 90° 102 mm (4”) - - - - - -
0650-1095 76 cm (30”) 90° 102 mm (4”) - - - - - -
0650-1097 91,5 cm (36”) 90° 102 mm (4”) - - - - - -
0650-0409 100,5 cm (39 1 /2”) 90° 102 mm (4”) - - - - - - GENERAL
0650-1099 112 cm (44”) 90° 102 mm (4”) - - - - - -
0650-1101 122 cm (48”) 90° 102 mm (4”) - - - - - -

683
ALL PART NUMBERS IN BLUE ARE NEW
