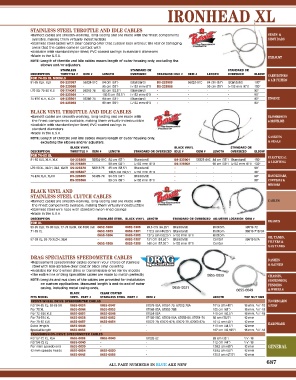

IRONHEAD XL

STAINLESS STEEL THROTTLE AND IDLE CABLES
•Barnett cables are smooth-working, long-lasting and are made with the finest components SEATS &
available, making them virtually indestructible SISSY BARS
•Stainless steel cables with clear coating offer that custom look without the fear of damaging
areas that the cables come in contact with
•Available with standard nylon-lined, PVC-coated casings in standard diameters
•Made in the U.S.A. EXHAUST
NOTE: Length of throttle and idle cables means length of outer housing only, excluding the
elbows and/or adjusters.
STAINLESS STANDARD OR STANDARD OR
DESCRIPTION THROTTLE # OEM # LENGTH OVERSIZED STAINLESS IDLE # OEM # LENGTH OVERSIZED ELBOW CARBURETORS
FOR 74-85 XL MODELS & AIR FILTERS
81-85 XLH, XLS DS-223987 56324-81C 84 cm (33”) [Standard] DS-223985 56323-81C 84 cm (33”) [Standard] 130°
DS-223988 - 99 cm (39”) [+152 mm (6”)] DS-223986 - 99 cm (39”) [+152 mm (6”)] 130°
L76-80; 79-80 XLS DS-224043 56313-76 85 cm (33,5”) [Standard] - - - - 90°
DS-223984 - 100,5 cm (39,5”) [+152 mm (6”)] - - - - 90°
74-E76 XLH, XLCH DS-223961 56389-74 84 cm (33”) [Standard] - - - - 90° ENGINE
DS-223962 - 99 cm (39”) [+152 mm (6”)] - - - - 90°

BLACK VINYL THROTTLE AND IDLE CABLES
•Barnett cables are smooth-working, long-lasting and are made with TRANSMISSION
the finest components available, making them virtually indestructible & DRIVELINE
•Available with standard nylon-lined, PVC-coated casings in
standard diameters
•Made in the U.S.A.
NOTE: Length of throttle and idle cables means length of outer housing only, GASKETS
excluding the elbows and/or adjusters. & SEALS
BLACK VINYL BLACK VINYL STANDARD OR
DESCRIPTION THROTTLE # OEM # LENGTH STANDARD OR OVERSIZED IDLE # OEM # LENGTH OVERSIZED ELBOW
FOR 74-85 XL ELECTRICAL
81-85 XLS, XLH, XLX DS-223868 56324-81C 84 cm (33”) [Standard] DS-223901 56323-81C 84 cm (33”) [Standard] 130°
DS-223869 - 99 cm (39”) [+152 mm (6”)] DS-223902 - 99 cm (39”) [+152 mm (6”)] 130° & LIGHTING
L76-80 XL, XLCH, XLS, XLCR DS-223878 56313-76 85 cm (33,5”) [Standard] - - - - 90°
DS-223867 - 100,5 cm (39,5”) [+152 mm (6”)] - - - - 90°
74-E76 XLH, XLCH DS-223865 56389-74 84 cm (33”) [Standard] - - - - 90° HANDLEBARS,
DS-223866 - 99 cm (39”) [+152 mm (6”)] - - - - 90° CONTROLS &

MIRRORS
BLACK VINYL AND
STAINLESS STEEL CLUTCH CABLES
•Barnett cables are smooth-working, long-lasting and are made with CABLES
the finest components available, making them virtually indestructible
•Stainless steel wire rope with standard nylon-lined casings
•Made in the U.S.A.
DESCRIPTION STAINLESS STEEL BLACK VINYL LENGTH STANDARD OR OVERSIZED ADJUSTER LOCATION OEM #
FOR XL BRAKES
83-85 XLX; 79-80 XLS; 77-78 XLCR, XR-1000 (all) 0652-1306 0652-1305 99,5 cm (39,25”) [Standard] Bottom 38619-72
71-85 XL 0652-1303 0652-1301 112,5 cm (44,25”) [Standard] Bottom 38619-71B/84
0652-1304 0652-1302 127,5 cm (50,25”) [+152 mm (6”)] Bottom -
57-59 XL; 58-70 XLCH, XLH - 0652-1307 131 cm (51,50”) [Standard] Center 38619-57A OIL TANKS,
0652-1309 0652-1308 146 cm (57,50”) [+152 mm (6”)] Center - FILTERS &
GAS TANKS
DRAG SPECIALTIES SPEEDOMETER CABLES
•Replacement speedometer cables come in your choice of stainless DASHES
steel with non-abrasive clear coat or black vinyl covering & GAUGES
•Available for front-wheel drive or transmission-drive Harley models
•The entire line of Drag Specialties cables are made to match perfectly 0655-0033 CHASSIS,
NOTE: Lengths and nut sizes of the cables are provided for installation SUSPENSION,
on custom applications. Measured length is end-to-end of outer FENDERS
casing, including metal casing ends. 0655-0031 0655-0049 & WHEELS
BLACK CLEAR COATED
FITS MODEL VINYL PART # STAINLESS STEEL PART # OEM # LENGTH TOP NUT SIZE
FRONT-WHEEL DRIVE SPEEDOMETER CABLES FLOORBOARDS
For 84-85 XL; 83-85 XR 0655-0031 0655-0047 67078-85A, 67051-73, 67052-78A 101,5 cm (40”) 16 mm, /8”-18 & PEGS
5
For 73 XL 0655-0044 0655-0055 67048-83A, 67052-78B 109 cm (43”) 16 mm, 5 /8”-18
For 73-E84 XLS 0655-0032 0655-0048 67054-83A 118 cm (46,5”) 16 mm, 5 /8”-18
For 74-E84 XL 0655-0038 0655-0052 67186-88C, 67024-84A, 67038-84, 67051-74 98 cm (38,5”) 12 mm
For 79-82 XLS 0655-0037 0655-0051 67072-79, 67072-87B, 67072-79, 67060-87A 101,5 cm (40”) 12 mm HARDWARE
Extra length 0655-0046 - - 113 cm (44,5”) 12 mm
Special length 0655-0035 - - 107 cm (42,125”) 16 mm, 5 /8”-18
TRANSMISSION-DRIVE SPEEDOMETER CABLES
For 57-72 XL, XLH 0655-0033 0655-0049 67026-62 89 cm (35”) 5 /8”-18
For 54-72 XL 0655-0040 - - 112 cm (44”) 5 /8”-18
For mini speedo and 0655-0039 - - 124,5 cm (49”) 12 mm GENERAL
12 mm speedo heads 0655-0034 0655-0050 - 134,5 cm (53”) 12 mm
0655-0045 0655-0056 - 120,5 cm (47,5”) 12 mm

ALL PART NUMBERS IN BLUE ARE NEW 687
