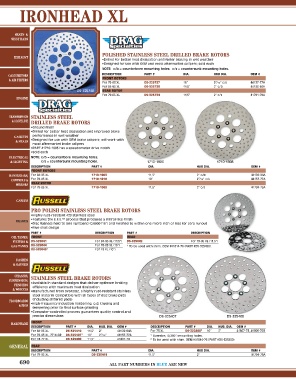

IRONHEAD XL

SEATS &
SISSY BARS

POLISHED STAINLESS STEEL DRILLED BRAKE ROTORS
EXHAUST
•Drilled for better heat dissipation and faster braking in wet weather
•Designed for use with OEM and most aftermarket calipers; sold each
NOTE: c/b = counterbore mounting holes. c/s = countersunk mounting holes.
CARBURETORS DESCRIPTION PART # DIA. HUB DIA. OEM #
& AIR FILTERS FRONT ROTORS
7
For 78‑83 XL DS‑325737 10” 2 /16” c/s 44137‑77A
For 84‑85 XL DS‑325738 11,5” 2” c/b 44136‑84A
DS‑325738 REAR ROTOR
For 79‑85 XL DS‑325734 11,5” 2” c/s 41791‑79A
ENGINE

TRANSMISSION STAINLESS STEEL
& DRIVELINE DRILLED BRAKE ROTORS
•Ground finish
•Drilled for better heat dissipation and improved brake
GASKETS performance in wet weather
& SEALS •Designed for use with OEM brake calipers; will work with
most aftermarket brake calipers
•PART #1710‑1903 has a speedometer drive notch
•Sold each
ELECTRICAL NOTE: c/b = counterbore mounting holes.
& LIGHTING c/s = countersunk mounting holes. 1710‑1903 1710‑1908
DESCRIPTION PART # DIA. HUB DIA. OEM #
FRONT ROTORS
HANDLEBARS, For 84‑85 XL 1710‑1903 11,5” 2” c/b 44136‑84A
CONTROLS & For 78‑83 XL 1710‑1910 10” 2 7 /16” c/s 44137‑77A
MIRRORS REAR ROTOR
For 79‑85 XL 1710‑1908 11,5” 2” c/s 41791‑79A

CABLES
PRO POLISH STAINLESS STEEL BRAKE ROTORS
•Highly rust‑resistant 420 stainless steel
BRAKES •Features the E.F.S.™ process that produces a mirror‑like finish
•Disc flatness held to one lightband (0,0000116”) and finished to within one micro inch or less for zero runout
•Five‑shot design
PART # DESCRIPTION PART # DESCRIPTION
OIL TANKS, FRONT REAR
FILTERS & DS‑325041 For 84‑85 XL (11,5”) DS‑325042 For 79‑85 XL (11,5”)
GAS TANKS DS‑325044 For 78‑83 XL (10”) 1 To be used with shim, OEM #41814‑76 (PART #DS‑325450).
DS‑325045 1 For 73 XL (10”)

DASHES
& GAUGES

CHASSIS, STAINLESS STEEL BRAKE ROTORS
SUSPENSION,
FENDERS •Available in standard designs that deliver optimum braking
efficiency with maximum heat dissipation
& WHEELS •Manufactured from SVS420JZ, a highly rust‑resistant stainless
steel material compatible with all types of disc brake pads
FLOORBOARDS (including sintered pads)
& PEGS •High‑frequency induction hardening, o.d. trueing and
tempering prior to final surface grinding
•Computer‑controlled process guarantees quality control and
precise dimensions DS‑325407 DS‑325408
HARDWARE FRONT
DESCRIPTION PART # DIA. HUB. DIA. OEM # DESCRIPTION PART # DIA. HUB. DIA. OEM #
For 84‑85 XL DS‑325410 11,5” 2” 44136‑84A For 73 XL DS‑325408 2 10” 2” 41807‑73, 41806‑72B
For 78‑83 XL, 77 XLCR DS‑325407 1 10” 2 /16” 44137‑77A 1 Oversize, (0,380”) mounting holes.
7
For 74‑77 XL DS‑325409 11,5” ‑ 41807‑74 2 To be used with shim, OEM #41814‑76 (PART #DS‑325450).

GENERAL REAR
DESCRIPTION PART # DIA. HUB DIA. OEM #
For 79‑85 XL DS‑325411 11,5” 2” 41791‑79A

690 ALL PART NUMBERS IN BLUE ARE NEW
