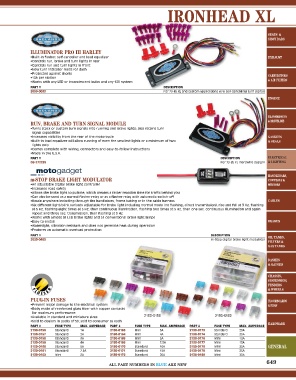

Page 651 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS

ILLUMINATOR PRO III HARLEY
•Built-in flasher, self-canceller and load equalizer EXHAUST
•Controls run, brake and turn lights in rear
•Controls run and turn lights in front
•New turn indicator feeds for dash
•Protected against shorts CARBURETORS
•10A per station
•Works with any LED or incandescent bulbs and any 12V system & AIR FILTERS
PART # DESCRIPTION
2050‑0033 For 73-85 XL and custom applications w/o self-cancelling turn signals

ENGINE

TRANSMISSION
RUN, BRAKE AND TURN SIGNAL MODULE & DRIVELINE
•Turns stock or custom turn signals into running and brake lights; also retains turn
signal capabilities
•Increases visibility from the rear of the motorcycle GASKETS
•Built-in load equalizer will allow running of even the smallest lights or a minimum of two & SEALS
lights only
•Comes complete with wiring, connectors and easy-to-follow instructions
•Made in the U.S.A.
PART # DESCRIPTION ELECTRICAL
DS‑272235 For 73-85 XL (hardwire design) & LIGHTING

HANDLEBARS,
m-STOP BRAKE LIGHT MODULATOR CONTROLS &
•An adjustable digital brake light controller MIRRORS
•Increases road safety
•Allows the brake light to pulsate, which creates a faster reaction time for traffic behind you
•Can also be used as a normal flasher relay or as a flasher relay with automatic switch-off
•Route anywhere including through the handlebars, frame tubing or in the cable harness CABLES
•Six different light/ blink variants adjustable for brake light including normal mode (no flashing, direct transmission), rise and fall at 3 Hz, flashing
at 5 Hz, flashing eight times at 5 Hz, then continuous illumination, flashing two times at 5 Hz, then one sec. continuous illumination and again
repeat and three sec. transmission, then flashing at 5 Hz
•Works with almost all LED brake lights and all conventional brake light lamps
•Easy-to-install BRAKES
•Watertight, vibration resistant and does not generate heat during operation
•Features an automatic overload protection
PART # DESCRIPTION OIL TANKS,
2020‑0465 m-Stop digital brake light modulator
FILTERS &
GAS TANKS

DASHES
& GAUGES

CHASSIS,
SUSPENSION,
FENDERS
& WHEELS

PLUG-IN FUSES FLOORBOARDS
•Prevent major damage to the electrical system & PEGS
•Body made of reinforced glass fiber with copper contacts
for maximum performance
•Available in standard and miniature sizes 2130-0156 2130-0162
•Sold to dealers in packs of 50; sold to consumer as each HARDWARE
PART # FUSE TYPE MAX. AMPERAGE PART # FUSE TYPE MAX. AMPERAGE PART # FUSE TYPE MAX. AMPERAGE
2130‑0156 Standard 1A 2130‑0163 Mini 3A 2130‑0173 Standard 25A
2130‑0157 Standard 2A 2130‑0164 Mini 4A 2130‑0174 Standard 30A
2130‑0158 Standard 3A 2130‑0165 Mini 5A 2130‑0176 Mini 10A
2130‑0159 Standard 4A 2130‑0166 Mini 7,5A 2130‑0177 Mini 15A
2130‑0160 Standard 5A 2130‑0170 Standard 10A 2130‑0178 Mini 20A GENERAL
2130‑0161 Standard 7,5A 2130‑0171 Standard 15A 2130‑0179 Mini 25A
2130‑0162 Mini 2A 2130‑0172 Standard 20A 2130‑0180 Mini 30A
