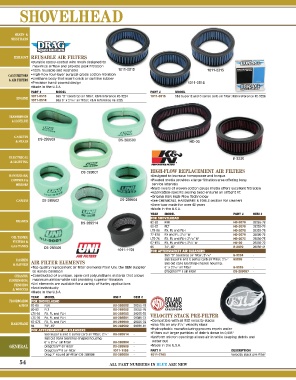

Page 56 - Oldbook 2017

SHOVELHEAD

SEATS &
SISSY BARS

EXHAUST REUSABLE AIR FILTERS
•Durable epoxy‑coated wire mesh designed to
maximize airflow and provide peak filtration
•100% reusable and washable 1011‑0313 1011‑0315
CARBURETORS •High‑flow four‑layer surgical‑grade cotton filtration
& AIR FILTERS •Urethane body that won’t crack or curl like rubber
•Precision hand‑poured design 1011‑0314
•Made in the U.S.A.
PART # MODEL PART # MODEL
1011‑0313 S&S “D” teardrop air filter; K&N reference #E‑3224 1011‑0315 S&S Super E and G series carb air filter; K&N reference #E‑3226
ENGINE
1011‑0314 S&S 6” x 2 3 /16” air filter; K&N reference #E‑3225

TRANSMISSION
& DRIVELINE

GASKETS
& SEALS DS‑289503 DS‑289500 HD‑20

ELECTRICAL E‑3225
& LIGHTING
DS‑289501 HIGH-FLOW REPLACEMENT AIR FILTERS
HANDLEBARS, •Designed to increase horsepower and torque
CONTROLS & •Pleated media provides a large filtration area offering long
MIRRORS service intervals
•Multi‑layers of woven cotton gauze media offers excellent filtration
•Application‑specific sealing bead ensures an airtight fit
•Original K&N High‑Flow Technology
CABLES DS‑289502 DS‑289504 •See CHEMICALS, HARDWARE & TOOLS section for cleaners
•American‑made for over 40 years
•Made in the U.S.A.
YEAR MODEL PART # OEM #
FOR SHOVELHEAD
BRAKES 82‑83 FXR HD‑2078 29255‑78
DS‑289514
80‑82 FLT HD‑2078 29255‑78
L78‑84 FX, FL and FLH HD‑2078 29255‑78
77‑E78 FX and FL; 3 1 /2” W HD‑2076 29086‑75
OIL TANKS, L75‑76 FX, FL and FLH; 2 7 /16” W HD‑2075 29086‑73
FILTERS & 67‑E75 FX, FL and FLH; 2 5 /8” W HD‑20 29036‑72
GAS TANKS 66 74”, 45” E‑2470 29036‑41
DS‑289509
1011‑1159 FOR AFTERMARKET AIR CLEANERS
S&S “D” teardrop air filter; 2 /16” E‑3224 ‑
1
DASHES AIR FILTER ELEMENTS S&S Super E and G series carb air filter; 2 1 /2” E3226 ‑
& GAUGES S&S old style teardrop‑shaped housing;
•Top‑quality replacement air filter elements from Uni, the OEM supplier 6” x 2 3 /16” air filter E‑3225 ‑
to Harley‑Davidson Dragtron™ II air filter DS‑289057 ‑
CHASSIS, •Constructed of a unique, open‑cell polyurethane material that allows
SUSPENSION, maximum airflow while still providing superior filtration
FENDERS •Uni elements are available for a variety of Harley applications
& WHEELS •Sold individually
•Made in the U.S.A.
YEAR MODEL UNI # OEM #
FLOORBOARDS FOR SHOVELHEAD
& PEGS 82‑83 FXR DS‑289503 29255‑78
80‑82 FLT DS‑289503 29255‑78
L78‑84 FX, FL and FLH DS‑289503 29255‑78 VELOCITY STACK PRE-FILTER
L75‑76 FX, FL and FLH DS‑289501 29086‑73
67‑E75 FX, FL and FLH DS‑289500 29036‑72 •Compatible with all RSD velocity stacks
HARDWARE •Also fits on any 3 /4” velocity stack
3
66 74”, 45” DS‑289502 29036‑41
FOR AFTERMARKET AIR CLEANERS •Hydrophobic manufacturing process repels water
S&S Super E and G series carb air filter; 2 /2” DS‑289514 ‑ •Filters out larger particles of debris down to 0,005”
1
S&S old style teardrop‑shaped housing; •Uniform micron openings allows air in while keeping debris and
6” x 2 3 /16” air filter DS‑289504 ‑ water out
GENERAL Dragtron™ air filter DS‑289509 ‑ •Made in the U.S.A.
Dragtron™ II air filter 1011‑1159 ‑ PART # DESCRIPTION
Drag 7” round air filter (DS‑288998) DS‑289504 ‑ 1011‑2763 Velocity stack pre‑filter

54 ALL PART NUMBERS IN BLUE ARE NEW
