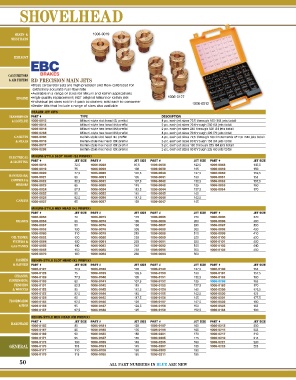

Page 52 - Oldbook 2017

SHOVELHEAD

SEATS & 1006-0019
SISSY BARS

EXHAUST

CARBURETORS
& AIR FILTERS RD PRECISION MAIN JETS
•Brass carburetor jets are high precision and flow-calibrated for
extremely accurate fuel flow rate
•Available in a range of sizes for Mikuni and Keihin applications
ENGINE •High-quality replacement; NOT original Mikuni or Keihin jets 1006-0127
•Individual jet sizes sold in 4-pack to dealers; sold each to consumer 1006-0012
•Dealer kits that include a range of sizes also available
DEALER JET KITS
TRANSMISSION PART # TYPE DESCRIPTION
& DRIVELINE 1006‑0012 Mikuni-style slot head (SJ prefix) 4-pc. each jet sizes 72,5 through 160 (144 jets total)
1006‑0013 Mikuni-style hex head (HJ prefix) 2-pc. each jet sizes 70 through 230 (54 jets total)
1006‑0014 Mikuni-style hex head (HJ prefix) 2-pc. each jet sizes 240 through 500 (54 jets total)
1006‑0264 Mikuni-style hex head (HJ prefix) 4-pc. each jet sizes 70 through 420 (72 jets total)
GASKETS 1006‑0265 Keihin-style slot head (KJ prefix) 4-pc. each jet sizes 72,5 through 160 (increments of 2,5) (144 jets total)
& SEALS 1006‑0016 Keihin-style hex head (CR prefix) 2-pc. each jet sizes 80 through 158 (64 jets total)
1006‑0017 Keihin-style hex head (CR prefix) 2-pc. each jet sizes 160 through 235 (64 jets total)
1006‑0298 Keihin-style hex head (CR prefix) 2-pc. each jet sizes 80 through 225 (60 jets total)

ELECTRICAL MIKUNI‑STYLE SLOT HEAD (SJ PREFIX)
& LIGHTING PART # JET SIZE PART # JET SIZE PART # JET SIZE PART # JET SIZE
1006‑0018 72,5 1006‑0028 97,5 1006‑0038 122,5 1006‑0048 147,5
1006‑0019 75 1006‑0029 100 1006‑0039 125 1006‑0049 150
1006‑0020 77,5 1006‑0030 102,5 1006‑0040 127,5 1006‑0050 152,5
HANDLEBARS, 1006‑0021 80 1006‑0031 105 1006‑0041 130 1006‑0051 155
CONTROLS & 1006‑0022 82,5 1006‑0032 107,5 1006‑0042 132,5 1006‑0052 157,5
MIRRORS 1006‑0023 85 1006‑0033 110 1006‑0043 135 1006‑0053 160
1006‑0024 87,5 1006‑0034 112,5 1006‑0044 137,5 1006‑0054 170
1006‑0025 90 1006‑0035 115 1006‑0045 140
1006‑0026 92,5 1006‑0036 117,5 1006‑0046 142,5
CABLES 1006‑0027 95 1006‑0037 120 1006‑0047 145

MIKUNI‑STYLE HEX HEAD (HJ PREFIX)
PART # JET SIZE PART # JET SIZE PART # JET SIZE PART # JET SIZE
1006‑0055 70 1006‑0072 170 1006‑0085 270 1006‑0095 370
BRAKES 1006‑0056 80 1006‑0074 180 1006‑0086 280 1006‑0096 380
1006‑0057 90 1006‑0076 190 1006‑0087 290 1006‑0097 390
1006‑0058 100 1006‑0078 200 1006‑0088 300 1006‑0098 400
1006‑0060 110 1006‑0079 210 1006‑0089 310 1006‑0099 410
OIL TANKS, 1006‑0062 120 1006‑0080 220 1006‑0090 320 1006‑0100 420
FILTERS & 1006‑0064 130 1006‑0081 230 1006‑0091 330 1006‑0101 430
GAS TANKS 1006‑0066 140 1006‑0082 240 1006‑0092 340 1006‑0102 440
1006‑0068 150 1006‑0083 250 1006‑0093 350 1006‑0103 450
1006‑0070 160 1006‑0084 260 1006‑0094 360

DASHES KEIHIN‑STYLE SLOT HEAD (KJ PREFIX)
& GAUGES PART # JET SIZE PART # JET SIZE PART # JET SIZE PART # JET SIZE
1006‑0127 72,5 1006‑0138 100 1006‑0149 127,5 1006‑0160 155
1006‑0128 75 1006‑0139 102,5 1006‑0150 130 1006‑0161 157,5
CHASSIS, 1006‑0129 77,5 1006‑0140 105 1006‑0151 132,5 1006‑0162 160
SUSPENSION, 1006‑0130 80 1006‑0141 107,5 1006‑0152 135 1006‑0266 165
FENDERS 1006‑0131 82,5 1006‑0142 110 1006‑0153 137,5 1006‑0163 170
& WHEELS 1006‑0132 85 1006‑0143 112,5 1006‑0154 140 1006‑0299 172,5
1006‑0133 87,5 1006‑0144 115 1006‑0155 142,5 1006‑0300 175
1006‑0134 90 1006‑0145 117,5 1006‑0156 145 1006‑0301 177,5
FLOORBOARDS 1006‑0135 92,5 1006‑0146 120 1006‑0157 147,5 1006‑0302 180
& PEGS 1006‑0136 95 1006‑0147 122,5 1006‑0158 150 1006‑0303 185
1006‑0137 97,5 1006‑0148 125 1006‑0159 152,5 1006‑0164 190

KEIHIN‑STYLE HEX HEAD (CR PREFIX)
PART # JET SIZE PART # JET SIZE PART # JET SIZE PART # JET SIZE
HARDWARE
1006‑0165 80 1006‑0181 120 1006‑0197 160 1006‑0213 200
1006‑0167 85 1006‑0183 125 1006‑0199 165 1006‑0215 205
1006‑0169 90 1006‑0185 130 1006‑0201 170 1006‑0217 210
1006‑0171 95 1006‑0187 135 1006‑0203 175 1006‑0219 215
1006‑0173 100 1006‑0189 140 1006‑0205 180 1006‑0221 220
GENERAL 1006‑0175 105 1006‑0191 145 1006‑0207 185 1006‑0223 225
1006‑0177 110 1006‑0193 150 1006‑0209 190
1006‑0179 115 1006‑0195 155 1006‑0211 195

50 ALL PART NUMBERS IN BLUE ARE NEW
