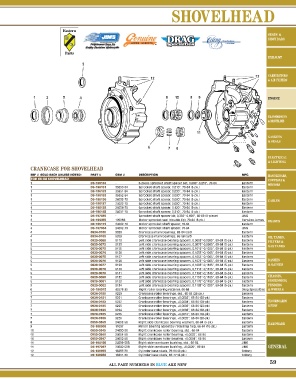

CRANKCASE FOR SHOVELHEAD
REF # (SOLD EACH UNLESS NOTED) PART # OEM # DESCRIPTION MFG. HANDLEBARS,
FOR 66-84 SHOVELHEAD CONTROLS &
1 DS-196135 - 6-piece sprocket shaft spacer set, 0,060”-0,210”, 70-84 Eastern MIRRORS
1 DS-196151 35850-84 Sprocket shaft spacer, 0,010”, 70-84 (5-pk.) Eastern
1 DS-196152 35851-84 Sprocket shaft spacer, 0,020”, 70-84 (5-pk.) Eastern
1 DS-196153 35852-84 Sprocket shaft spacer, 0,030”, 70-84 (5-pk.) Eastern
1 DS-196136 24032-70 Sprocket shaft spacer, 0,060”, 70-84 (5-pk.) Eastern CABLES
1 DS-196137 24033-70 Sprocket shaft spacer, 0,090”, 70-84 (5-pk.) Eastern
1 DS-196138 24034-70 Sprocket shaft spacer, 0,120”, 70-84 (5-pk.) Eastern
1 DS-196143 24037-70 Sprocket shaft spacer, 0,210”, 70-84 (5-pk.) Eastern
1 DS-197035 - Sprocket shaft spacer kit, 0,336”-0,666”, 66-69 (8-piece) JIMS
2 DS-194455 12026B Motor sprocket seal (double lip), 70-84 (5-pk.) Genuine James BRAKES
3 DS-195172 24002-70 Motor sprocket shaft spacer, 70-84 Eastern
3 DS-197034 24002-70 Motor sprocket shaft spacer, 70-84 JIMS
4 0924-0108 9028 Crankcase main bearings, 69-84 (set) Eastern
4 0924-0109 9029 Crankcase main bearings, 66-68 (set) Eastern OIL TANKS,
5 0920-0068 9110 Left side crankcase bearing spacers, 0,0895”-0,0905”, 69-84 (5-pk.) Eastern FILTERS &
5 0920-0072 9123 Left side crankcase bearing spacers, 0,0975”-0,0985”, 69-84 (5-pk.) Eastern GAS TANKS
5 0920-0073 9125 Left side crankcase bearing spacers, 0,1015”-0,1025”, 69-84 (5-pk.) Eastern
5 0920-0074 9126 Left side crankcase bearing spacers, 0,1035”-0,1045”, 69-84 (5-pk.) Eastern
5 0920-0075 9127 Left side crankcase bearing spacers, 0,1055”-0,1065”, 69-84 (5-pk.) Eastern
5 0920-0076 9128 Left side crankcase bearing spacers, 0,1075”-0,1085”, 69-84 (5-pk.) Eastern DASHES
5 0920-0077 9129 Left side crankcase bearing spacers, 0,1095”-0,1105”, 69-84 (5-pk.) Eastern & GAUGES
5 0920-0078 9130 Left side crankcase bearing spacers, 0,1115”-0,1125”, 69-84 (5-pk.) Eastern
5 0920-0079 9131 Left side crankcase bearing spacers, 0,1135”-0,1145”, 69-84 (5-pk.) Eastern
5 0920-0080 9132 Left side crankcase bearing spacers, 0,1155”-0,1165”, 69-84 (5-pk.) Eastern CHASSIS,
5 0920-0081 9133 Left side crankcase bearing spacers, 0,1175”-0,1185”, 69-84 (5-pk.) Eastern SUSPENSION,
5 0920-0082 9134 Left side crankcase bearing spacers, 0,1195”-0,1205”, 69-84 (5-pk.) Eastern FENDERS
6 DS-194015 43578-35 Right roller bearing retainer, 66-84 Drag Specialties & WHEELS
7 0924-0180 9220 Crankcase roller bearings, std., 66-84 (28-pk.) Eastern
7 0924-0181 9221 Crankcase roller bearings, +0,0002”, 66-84 (28-pk.) Eastern
7 0924-0182 9222 Crankcase roller bearings, +0,0004”, 66-84 (28-pk.) Eastern FLOORBOARDS
7 0924-0183 9223 Crankcase roller bearings, +0,0006”, 66-84 (28-pk.) Eastern & PEGS
7 0924-0184 9224 Crankcase roller bearings, +0,0008”, 66-84 (28-pk.) Eastern
7 0924-0185 9225 Crankcase roller bearings, +0,0010”, 66-84 (28-pk.) Eastern
7 0924-0186 9226 Crankcase roller bearings, +0,0020”, 66-84 (28-pk.) Eastern
8 0950-0363 24692-58 Right side crankcase bearing washers, 66-84 (5-pk.) Eastern HARDWARE
9 DS-188008 11007 Pinion bearing assembly retaining ring, 66-84 (10-pk.) Eastern
10 0950-0345 24650-58 Right crankcase roller bearing, std., 66-84 Eastern
10 0950-0346 24651-58 Right crankcase roller bearing, +0,0002”, 66-84 Eastern
10 0950-0347 24652-58 Right crankcase roller bearing, +0,0004”, 66-84 Eastern
11 DS-194100 24599-58B Right-side crankcase bushing, std., 66-84 JIMS
11 DS-197067 24600-58B Right-side crankcase bushing, +0,0020”, 66-84 JIMS GENERAL
12 DS-189955 16837-78 Cylinder base studs, 78-84 (8-pk.) Colony
12 DS-189956 16831-30 Cylinder base studs, 66-77 (8-pk.) Colony

59
ALL PART NUMBERS IN BLUE ARE NEW
