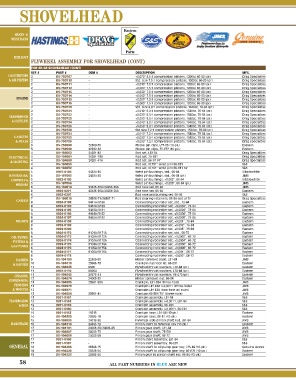

Page 60 - Oldbook 2017

SHOVELHEAD

SEATS &
SISSY BARS

EXHAUST
FLYWHEEL ASSEMBLY FOR SHOVELHEAD (CONT)
FOR 66-84 SHOVELHEAD (CONT)
REF # PART # OEM # DESCRIPTION MFG.
CARBURETORS 2 DS-750707 - +0,070” 8,5:1 compression pistons, 1200cc 66-80 (pr.) Drag Specialties
& AIR FILTERS 2 DS-750710 - Std. size 7,5:1 compression pistons, 1200cc 66-80 (pr.) Drag Specialties
2 DS-750711 - +0,010” 7,5:1 compression pistons, 1200cc 66-80 (pr.) Drag Specialties
2 DS-750712 - +0,020” 7,5:1 compression pistons, 1200cc 66-80 (pr.) Drag Specialties
2 DS-750713 - +0,030” 7,5:1 compression pistons, 1200cc 66-80 (pr.) Drag Specialties
2 DS-750714 - +0,040” 7,5:1 compression pistons, 1200cc 66-80 (pr.) Drag Specialties
ENGINE 2 DS-750715 - +0,050” 7,5:1 compression pistons, 1200cc 66-80 (pr.) Drag Specialties
2 DS-750716 - +0,060” 7,5:1 compression pistons, 1200cc 66-80 (pr.) Drag Specialties
2 DS-750720 - Std. size 8,0:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
2 DS-750721 - +0,010” 8,0:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
2 DS-750722 - +0,020” 8,0:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
TRANSMISSION 2 DS-750723 - +0,030” 8,0:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
& DRIVELINE 2 DS-750724 - +0,040” 8,0:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
2 DS-750725 - +0,050” 8,0:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
2 DS-750730 - Std size 7,2:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
2 DS-750731 - +0,010” 7,2:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
GASKETS 2 DS-750732 - +0,020” 7,2:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
& SEALS 2 DS-750733 - +0,030” 7,2:1 compression pistons, 1340cc, 78-84 (pr.) Drag Specialties
3 DS-750598 22588-78 Piston pin clips, L77-83 (10-pk.) Eastern
3 DS-750599 22582-52 Piston pin clips, 73-E77 (10-pk.) Eastern
4 DS-194662 24281-83 Rod set, L83-84 Drag Specialties
ELECTRICAL 4 DS-194661 24281-74A Rod set, 74-E81 Drag Specialties
& LIGHTING 4 DS-194660 24281-41A Rod set, 66-73 74” Drag Specialties
4 DS-194653 - Rod set, (0,791” wrist pin) 66-E81 S&S
4 DS-194652 - Rod set, (0,791” wrist pin) 66-E81 74” S&S
5 0922-0104 24334-36 Wrist pin bushings, std., 66-84 Kibblewhite
HANDLEBARS, 5 DS-197065 24334-36 Wrist pin bushings, std., 66-84 (pr.) JIMS
CONTROLS & 5 0922-0105 - Wrist pin bushings, +0,002”, 66-84 Kibblewhite
MIRRORS 5 DS-197066 - Wrist pin bushings, +0,005”, 66-84 (pr.) JIMS
6 DS-194014 23435-36A/ 24356-36A Rod race set, 66-84 JIMS
6 0923-0271 23435-36A/ 24356-36A Rod race set, 66-84 Eastern
6 0923-0207 - Rod race and bushing set, 66-84 S&S
7 DS-194018 24366-71/ 24367-71 Rod bearing retainers, 66-84 (set of 3) Drag Specialties
CABLES 8 0924-0193 9441A/ 9186 Connecting rod roller set, std., 73-84 Eastern
8 0924-0194 9442A/ 9180 Connecting rod roller set, +0,0002”, 73-84 Eastern
8 0924-0195 9443A/ 9181 Connecting rod roller set, +0,0004”, 73-84 Eastern
8 0924-0196 9444A/ 9182 Connecting rod roller set, +0,0006”, 73-84 Eastern
8 0924-0197 9445A/ 9183 Connecting rod roller set, +0,0008”, 73-84 Eastern
BRAKES 8 0924-0198 - Connecting rod roller set, +0,001”, 73-84 Eastern
8 0924-0199 - Connecting rod roller set, +0,002”, 73-84 Eastern
8 0924-0200 - Connecting rod roller set, +0,003”, 73-84 Eastern
8 0924-0172 9101A/ 9171A Connecting rod roller set, std., 66-72 Eastern
OIL TANKS, 8 0924-0173 9102A/ 9172A Connecting rod roller set, +0,0002”, 66-72 Eastern
FILTERS & 8 0924-0174 9103A/ 9173A Connecting rod roller set, +0,0004”, 66-72 Eastern
GAS TANKS 8 0924-0175 9104A/ 9174A Connecting rod roller set, +0,0006”, 66-72 Eastern
8 0924-0176 9105A/ 9175A Connecting rod roller set, +0,0008”, 66-72 Eastern
8 0924-0177 9106A/ 9176A Connecting rod roller set, +0,001”, 66-72 Eastern
8 0924-0178 - Connecting rod roller set, +0,002”, 66-72 Eastern
DASHES 9 DS-194190 22309-80 Motor sprocket shaft, L81-84 JIMS
& GAUGES 10 DS-194010 23966-78 Crankpin nut/ lock kit, 66-E81 Eastern
11 DS-194043 6506 Flywheel thrust washers, L70-84 (pr.) Eastern
11 0922-0110 6506A Flywheel thrust washers, L70-84 (pr.) Eastern
CHASSIS, 11 DS-194042 23973-41 Flywheel thrust washers, 66-E70 (pr.) Eastern
SUSPENSION, 12 DS-194074 24003-55 Motor sprocket nut, 66-84 Eastern
13 DS-194005 23961-80A Crankpin, L81-E84 (three-hole) JIMS
FENDERS 13 DS-193970 - Crankpin L81-E84 (+0,001”) (three-hole) JIMS
& WHEELS 13 DS-193971 - Crankpin L81-E84 (two-hole w/ nuts) JIMS
13 DS-194004 23961-41 Crankpin 66-E81 74” (three-hole) JIMS
13 0921-0161 - Crankpin assembly, L81-84 S&S
FLOORBOARDS 13 0921-0162 - Crankpin assembly (+0,001”), L81-84 S&S
& PEGS 13 0921-0159 - Crankpin assembly, 66-E81 S&S
13 0921-0160 - Crankpin assembly (+0,001”), 66-E81 S&S
14 0921-0143 11218 Crankpin keys, L81-84 (10-pk.) Eastern
14 DS-194300 23985-18 Crankpin keys, 66-81 (10-pk.) Eastern
15 DS-198835 24016-80 Flywheel-side pinion shaft nut, L81-84 JIMS
HARDWARE 16 DS-194310 23985-12 Pinion shaft to flywheel key (10-pk.) Eastern
17 DS-194191 24006-80/ 24006-83 Pinion gear shaft, L81-84 JIMS
17 DS-194087 24006-73 Pinion gear shaft, 73-E81 JIMS
17 DS-194086 24006-58 Pinion gear shaft, 66-72 JIMS
17 0921-0168 - Pinion shaft assembly, L81-84 S&S
17 0921-0167 - Pinion shaft assembly, 66-E81 S&S
GENERAL 18 DS-194206 26348-15 Pinion shaft to oil pump gear key, L75-84 (10-pk.) Genuine James
18 DS-194325 23928-54 Pinion shaft to oil pump gear key, 66-E75 (10-pk.) Eastern
19 DS-194325 23985-54 Pinion gear to pinion shaft key, 66-84 (10-pk.) Eastern

58 ALL PART NUMBERS IN BLUE ARE NEW
