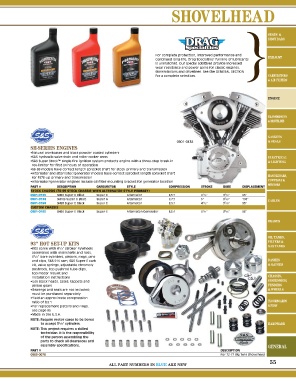

SHOVELHEAD

SEATS &
SISSY BARS

For complete protection, improved performance and EXHAUST
continued long-life, Drag Specialties’ full line of lubricants
is unmatched. Our special additives provide increased
wear resistance and power gains for classic engines,
transmissions and drivelines. See the GENERAL SECTION
for a complete selection. CARBURETORS
& AIR FILTERS

ENGINE

TRANSMISSION
& DRIVELINE

GASKETS
0901-0134 & SEALS
SH-SERIES ENGINES
•Natural crankcases and black powder coated cylinders
•S&S hydraulic valve train and roller rocker arms ELECTRICAL
•S&S Super Stock™ single fire ignition system protects engine with a three-step break-in & LIGHTING
rev-limiter for first 24 hours of operation
•66-69 models have correct length sprocket shaft for stock primary and transmission
•Alternator and alternator/ generator models have correct sprocket length sprocket shaft
for 1970-up primary and transmission HANDLEBARS,
•Alternator/ generator engines include oil filter mounting bracket for generator location CONTROLS &
MIRRORS
PART # DESCRIPTION CARBURETOR STYLE COMPRESSION STROKE BORE DISPLACEMENT
STOCK CHASSIS (70-99 STOCK CHASSIS WITH ALTERNATOR STYLE PRIMARY)
5
0901-0129 SH93 Super E Billet Super E Alternator 8,5:1 4 /2” 3 /8” 93”
1
0901-0134 SH103 Super G Billet Super G Alternator 9,7:1 5” 3 5 /8” 103” CABLES
0901-0194 SH93 Super E Black Super E Alternator 8,5:1 4 1 /2” 3 /8” 93”
5
CUSTOM CHASSIS
5
1
0901-0185 SH93 Super E Black Super E Alternator/ Generator 8,5:1 4 /2” 3 /8” 93”

BRAKES
OIL TANKS,
93” HOT SET-UP KITS FILTERS &
GAS TANKS
1
•Kits come with 4 /2” stroker flywheels
assembled with mainshafts and rods,
3 /8” bore cylinders, pistons, rings, pins
5
and clips, S&S 514 cam, S&S Super E carb DASHES
kit, valve springs, adjustable chromoly & GAUGES
pushrods, top pushrod tube clips,
top motor mount and
installation instructions CHASSIS,
•Use stock heads, cases, tappets and SUSPENSION,
pinion gears FENDERS
•Bearings and seals are not included; & WHEELS
must be purchased separately
•Yield an approximate compression
ratio of 8,5:1 FLOORBOARDS
•For replacement pistons and rings, & PEGS
see page 65
•Made in the U.S.A.
NOTE: Require motor cases to be bored
5
to accept 3 /8” cylinders. HARDWARE
NOTE: This project requires a skilled
technician. It is the responsibility
of the person assembling the
parts to check all clearances and
assembly specifications. GENERAL
PART # DESCRIPTION
0903-0070 For 73-77 Big Twin Shovelhead

ALL PART NUMBERS IN BLUE ARE NEW 55
