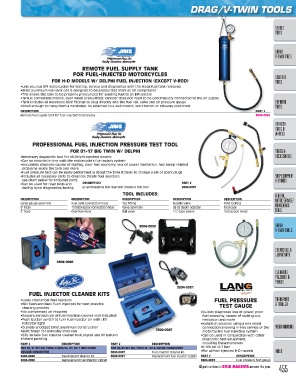

Page 455 - Tires 2017

DRAG/V-TWIN TOOLS

STREET
TIRES

DRAG/
V-TWIN TIRES

REMOTE FUEL SUPPLY TANK
FOR FUEL‑INJECTED MOTORCYCLES SCOOTER
FOR H‑D MODELS W/ DELPHI FUEL INJECTION (EXCEPT V‑ROD) TIRES
•Lets you run EFI motorcycles for testing, service and diagnostics with the stock fuel tank removed
•Billet aluminum fuel tank cell is designed to be pressurized from an air compressor
•This allows the tank to be properly pressurized for sending fuel to an EFI system
•Tank is completely mobile, even when pressurized; canister does not need to be continuously connected to the air supply
•Tank includes all necessary OEM fittings to plug directly into the fuel rail, valve and air pressure gauge OFFROAD
•Small enough to hang from a handlebar, be attached to a wall mount, work bench or rollaway tool chest TIRES
DESCRIPTION PART #
Remote fuel supply tank for fuel‑injected motorcycles 3850‑0362

ATV/UTV
TIRES &
WHEELS

PROFESSIONAL FUEL INJECTION PRESSURE TEST TOOL
FOR 01‑17 BIG TWIN W/ DELPHI TUBES &
•Necessary diagnostic tool for all Delphi injected models ACCESSORIES
•Can be installed in line with the motorcycle’s fuel supply system
•Accurately diagnose causes of stalling, poor fuel economy, loss of power, hesitation, fuel pump‑related
problems inside the tank and more
•Fuel pressure test can be easily performed in about the time it takes to change a set of spark plugs
•Includes all necessary parts to diagnose Delphi fuel injection; SHOP EQUIPMENT
see chart below for included parts & STANDS
•Can be used for road tests and DESCRIPTION PART #
during Dyno diagnostics/ tuning EFI professional fuel injection pressure test tool 3804‑0007

TOOL INCLUDES: GENERAL,
DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION METRIC SERVICE/
Large gauge assembly Fuel tank connection hose Tee fitting Needle valve #243 locktite MAINTENANCE
8” hose Throttle body connection hose Valve assembly 08‑09 depth adapter Tool case
2’ hose Overflow hose Ball valve 1 /4” tube sleeve Instruction sheet TOOLS

3804‑0050 DRAG/
V-TWIN TOOLS

CHEMICALS &
LUBRICANTS
3804‑0046

CLEANERS,
POLISHES &
PAINTS
3804‑0051
FUEL INJECTOR CLEANER KITS
•Easily clean most fuel injectors FUEL PRESSURE TRANSPORT
•Will flush and back flush injectors for best possible TEST GAUGE & TRAILER
cleaning process
•No compressed air required •Quickly diagnoses loss of power, poor
•Require aerosol can of fuel injection cleaner (not included) fuel economy, causes of stalling out,
•Push button switch to turn fuel injector on with LED hesitation and more
indicator light •Installs in seconds using a one‑point
•Durable anodized billet aluminum construction connection allowing in‑line service of the MERCHANDISING
•Built tough for everyday shop use 3804‑0047 motorcycle’s fuel injection system
•Kits include fuel injector cleaner tool, pigtail and 9V battery •Can be used in conjunction with other
•Patent pending diagnostic test equipment,
PART # DESCRIPTION PART # DESCRIPTION including Dynamometers
FOR 95‑17 EFI BIG TWIN/V‑ROD/XL W/ EV‑1 MINITIMER FOR 95‑05 EFI BIG TWIN W/ EV‑6 USCAR CONNECTOR •0‑100 psi (0‑7 bar)
SQUARE CONNECTOR 3804‑0047 Fuel injector cleaner kit •For all fuel‑injected H‑D models INDEX
3804‑0046 Fuel injector cleaner kit 3804‑0051 Replacement fuel injector pigtail PART # DESCRIPTION
3804‑0050 Replacement fuel injector pigtail 3804‑0031 Fuel pressure test gauge

455
All part numbers in BOLD MAGENTA are new this year.
