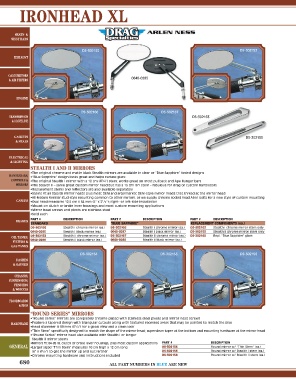

IRONHEAD XL

SEATS &
SISSY BARS

DS-302150 DS-302152
EXHAUST

CARBURETORS
& AIR FILTERS 0640-0285

ENGINE

DS-302166 DS-302167
TRANSMISSION DS-302163
& DRIVELINE

GASKETS DS-302153
& SEALS

ELECTRICAL
& LIGHTING
STEALTH I AND II MIRRORS
•The original chrome and matte black Stealth mirrors are available in clear or “Blue Sapphire” tinted designs
HANDLEBARS, •”Blue Sapphire” design looks great and helps reduce glare
3
CONTROLS & •The original Stealth I mirror with a 12 cm (4 /4”) stem; works great on most pullback and Ape Hanger bars
MIRRORS •The Stealth II – same great custom mirror head but has a 15 cm (6”) stem – fabulous for drag or custom handlebars
•Replacement stems and reflectors are also available separately
•Stems fit all Stealth mirror heads plus most OEM and aftermarket OEM-style mirror heads that thread at the mirror head
•All feature familiar stud-style mounting common to other mirrors, or we supply chrome socket head Allen bolts for a new style of custom mounting
1
CABLES •Oval head measures 12,5 cm x 64 mm (5” x 2 /2”); right- or left-side installation
•Mount on clutch or brake lever housings and most custom mounting applications
•Mirror head screws and pivots are stainless steel
•Sold each
BRAKES PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION
STANDARD “BLUE SAPPHIRE” REPLACEMENT COMPONENTS (ea.)
DS‑302150 Stealth I chrome mirror (ea.) DS‑302166 Stealth I chrome mirror (ea.) DS‑302163 Stealth I chrome mirror stem only
0640‑0285 Stealth I black mirror (ea.) 0640‑0287 Stealth I black mirror (ea.) DS‑302153 Stealth II chrome mirror stem only
OIL TANKS, DS‑302152 Stealth II chrome mirror (ea.) DS‑302167 Stealth II chrome mirror (ea.) DS‑302168 Repl. “Blue Sapphire” glass
FILTERS & 0640‑0286 Stealth II black mirror (ea.) 0640‑0288 Stealth II black mirror (ea.)

GAS TANKS
DS-302154 DS-302155 DS-302156
DASHES
& GAUGES

CHASSIS,
SUSPENSION,
FENDERS
& WHEELS

FLOORBOARDS
& PEGS
“ROUND SERIES” MIRRORS
•”Round Series” mirrors are completely chrome-plated with stainless steel pivots and mirror head screws
HARDWARE •Feature a tapered design with triangular cutouts along with textured recessed areas that may be painted to match the bike
•Head diameter is 89 mm (3 /2”) for a good view and a clean look
1
•”Thin Stem” specifically designed to match the shape of the mirror head; superclean taper at the bottom and mounting hardware at the mirror head
•”Round Series” mirror head also available with Stealth I or longer
Stealth II mirror stems
•Mirrors fit 84-85 XL clutch or brake lever housings, plus most custom applications PART # DESCRIPTION
GENERAL •Larger sized “Thin Stem” measures 10 cm high x 12 cm long DS‑302154 Round mirror w/ “Thin Stem” (ea.)
(4” x 4 /8”) to get the mirror up and out farther DS‑302155 Round mirror w/ Stealth I stem (ea.)
5
•Chrome mounting hardware and instructions included DS‑302156 Round mirror w/ Stealth II stem (ea.)

680 ALL PART NUMBERS IN BLUE ARE NEW
