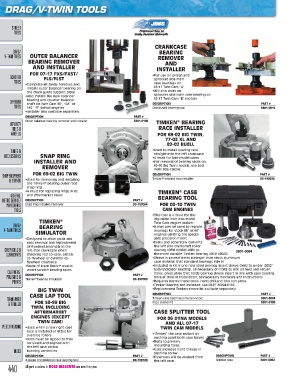

Page 440 - Tires 2017

DRAG/V-TWIN TOOLS

STREET
TIRES

CRANKCASE
DRAG/ BEARING
V-TWIN TIRES OUTER BALANCER REMOVER
BEARING REMOVER AND
AND INSTALLER INSTALLER
FOR 07-17 FXS/ FXST/
SCOOTER FLS/ FLST •For use on pinion and
sprocket side main
TIRES •Complete kit safely removes and case bearings on
installs outer balancer bearing on 03-17 Twin Cam “A”
the chain guide support plate •Will also work on
•Also installs the new balancer sprocket side main case bearing on
03-17 Twin Cam “B” motors
OFFROAD bearing and counter balancer DESCRIPTION PART #
shaft on Twin Cam 96”, 103” or
TIRES 110” “B” Softail engines Crankshaft bearing tool 3801-0012
•Installer also available separately
DESCRIPTION PART #
Outer balancer bearing remover and installer 3801-0109 ®
ATV/UTV TIMKEN BEARING
TIRES & RACE INSTALLER
WHEELS FOR 69-02 BIG TWIN,
77-03 XL AND
82-02 BUELL
TUBES & •Used to install bearing race
straight into the left crankcase
ACCESSORIES SNAP RING •A must for late-model cases
INSTALLER AND •For removal of bearing races on
REMOVER 69-99 Big Twin models, use tool
PART #DS-196046
SHOP EQUIPMENT FOR 69-02 BIG TWIN DESCRIPTION PART #
& STANDS •Used for removing and installing Timken ® bearing race installer DS-198636
®
the Timken bearing outer race
snap ring
•A must for replacing rings in OE TIMKEN CASE
®
GENERAL, and aftermarket cases BEARING TOOL
METRIC SERVICE/ DESCRIPTION PART #
MAINTENANCE Snap ring installer/ remover DS-197064 FOR 03-10 TWIN
TOOLS CAM ENGINES
•This tool is a must for the
TIMKEN big-cubic-inch late-model
®
Twin Cam engine builder
DRAG/ BEARING •It may also be used to replace
V-TWIN TOOLS SIMULATOR bearings for stock 88” or 96”
engines utilizing the special
•Designed to allow quick and JIMS precision insert
easy removal and replacement •Easily and accurately converts
of flywheel assembly in the the left side crankshaft roller
CHEMICALS & left-side crankcase when bearing (OEM #24604-00D) to 3801-0084
LUBRICANTS checking rod-to-case, piston- the more durable Timken Bearing (OEM #9028)
to-flywheel or cylinder-to- •Sleeve is several times stronger than stock aluminum
flywheel clearance case material that standard bearings ride in
®
•Made of black Delrin plastic; •Included in kit is one new steel bearing insert sleeve (held to under ,0002”
CLEANERS, won’t scratch bearing races total indicator reading), all necessary drill bits to drill oil feed and return
holes, press plate that holds bearing sleeve insert in line with case bearing
POLISHES & DESCRIPTION PART # bore at time of installation, all necessary hardware and instructions
Timken ® bearing simulator
DS-197080
PAINTS •Requires normal hand tools, hand drill and two-ton press
•Timken bearing not included; see PART #0924-0108
BIG TWIN •Replacement Timken sleeve kit available separately
CASE LAP TOOL DESCRIPTION PART #
TRANSPORT Timken case bearing conversion tool 3801-0084
& TRAILER FOR 58-99 BIG Repl. sleeve kit 3801-0108
TWIN, INCLUDING
AFTERMARKET CASE SPLITTER TOOL
ENGINES (EXCEPT FOR 06 DYNA MODELS
TWIN CAM) AND ALL 07-17
MERCHANDISING •Used when a new right case TWIN CAM MODELS
race is installed or fitted for
oversize rollers •”Breaks” the case sealant by
•Race must be lapped to true pushing apart both case halves
(or sized) and aligned with •Bolts to primary
the left case pinion mounting holes
INDEX bushing centerline •Uses included hand thread-in
pushing screw
DESCRIPTION PART # •Flywheels will be pushed from DESCRIPTION PART #
4-speed transmission race lapping tool DS-196160 the left case Splitter case 3801-0062

440 All part numbers in BOLD MAGENTA are new this year.
