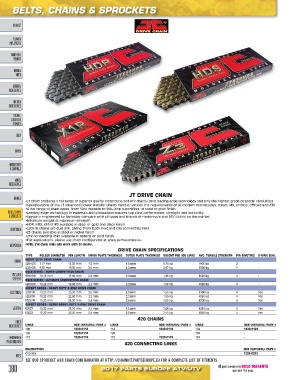

Page 380 - ATV 2017

BELTS, CHAINS & SPROCKETS

EXHAUST

PLOWS &
IMPLEMENTS

WINCHES &
MOUNTS

AUDIO &
VIDEO

GENERAL
ACCESSORIES

RACKS &
ACCESSORIES

TRUNKS,
LUGGAGE &
STORAGE

BODY

ARMOR

HANDLEBARS
& CONTROLS

WHEEL
ACCESSORIES

JT DRIVE CHAIN
BRAKES
•JT Chain produces a full range of superior quality motorcycle and ATV chains using leading-edge technology and only the highest grade of special steel alloys
•Specifications of the JT advanced power transfer chains meet or exceed the requirements of all modern motorcycles, street, MX, enduro, offroad and ATV
•A full range of chain types, from 50cc mopeds to 200+ bhp superbikes, in steel or gold finish
BELTS, CHAINS •Leading edge technology in materials and production ensures top class performance, strength and durability
& SPROCKETS •Specially engineered to favorably compare with all types and brands of motorcycle and ATV chains on the market
•Minimum weight at maximum strength
•HDR, HDS, X1R/ X1R2 available in steel or gold and black finish
DRIVETRAIN •520X1R chains are dual link, giving them both rivet and clip connecting links
•Z3 chains available in steel or nickel finish
•Z1R connecting links available in natural or gold finish
•For applications, please use chain configurator at www.partseurope.eu
SUSPENSION NOTE: Z1R chain links will work with Z3 chains.
DRIVE CHAIN SPECIFICATIONS
TYPE ROLLER DIAMETER PIN LENGTH INNER PLATE THICKNESS OUTER PLATE THICKNESS WEIGHT PER 100 LINKS AVG. TENSILE STRENGTH PIN RIVETING X‑RING SEAL
ENGINE HEAVY DUTY DRIVE CHAIN
420HDR 7,77 mm 15,05 mm 1,6 mm 1,6 mm 0,74 kg 1900 kg 2 -
428HDR 8,50 mm 18,30 mm 2,0 mm 2,0 mm 0,97 kg 2500 kg 2 -
RACE SERIES ‑ SUPER COMPETITION CHAIN
FUEL/AIR 520HDR 10,16 mm 17,80 mm 2,0 mm 2,0 mm 1,46 kg 3680 kg 4 -
SYSTEMS RACE SERIES ‑ ULTIMATE COMPETITION CHAIN
520HDS 10,22 mm 18,60 mm 2,2 mm 2,2 mm 1,56 kg 4020 kg 4 -
EXPERT SERIES ‑ HEAVY DUTY X‑RING DRIVE CHAIN
ELECTRICAL 520X1R 10,22 mm 20,30 mm 2,0 mm 2,0 mm 1,55 kg 3700 kg 4 Yes
525X1R 10,22 mm 22,60 mm 2,2 mm 2,2 mm 1,89 kg 4050 kg 4 Yes
530X1R 10,22 mm 24,90 mm 2,4 mm 2,4 mm 2,08 kg 4200 kg 4 Yes
EXPERT SERIES ‑ SUPER HEAVY DUTY X‑RING DRIVE CHAIN
LIGHTING 525Z3 10,32 mm 23,70 mm 2,4 mm 2,6 mm 2,06 kg 4850 kg 4 Yes
530Z3 10,32 mm 25,30 mm 2,4 mm 2,6 mm 2,15 kg 4850 kg 4 Yes
420 CHAINS
RIDER
ACCESSORIES LINKS HDR (NATURAL) PART # LINKS HDR (NATURAL) PART # LINKS HDR (NATURAL) PART #
100 1220‑0113 114 1220‑0118 124 1220‑0122
104 1220‑0114 120 ‑ 130 ‑
HARDWARE & 110 1220‑0116 122 1220‑0121 134 ‑
MERCHANDISING
420 CONNECTING LINKS
DESCRIPTION HDR (NATURAL) PART #
INDEX Clip link 1225‑0232

SEE OUR SPROCKET AND CHAIN CONFIGURATOR AT HTTP://CHAINKIT.PARTSEUROPE.EU FOR A COMPLETE LIST OF FITMENTS.
