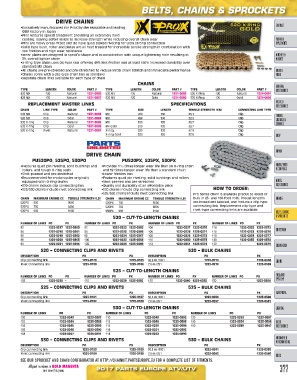

Page 377 - ATV 2017

BELTS, CHAINS & SPROCKETS

DRIVE CHAINS
•Exclusively manufactured for ProX by the reputable and leading EXHAUST
OEM factory in Japan
•Pins features special treatment providing an extremely hard
coating, leaving softer inside to increase strength while reducing overall chain wear PLOWS &
•Pins are heavy press‑fitted and do have quad staked riveting for ultra strong connection IMPLEMENTS
•Solid type bush, roller and plates are all heat treated for incredible tensile strength in combination with
low friction and high wear resistance
•Inner plates are designed in specific shape and in combination with unique lightening hole resulting in WINCHES &
3% overall lighter chain MOUNTS
•X‑Ring type chain uses QX‑type seal offering 40% less friction and at least 150% increased durability over
standard MX chain
•All chains are pre‑stressed and pre‑stretched to reduce initial chain stretch and immediate performance AUDIO &
•Chains come with a clip‑type chain link as standard VIDEO
•Separate chain links available for each type of chain
CHAINS GENERAL
TYPE LENGTH COLOR PART # TYPE LENGTH COLOR PART # TYPE LENGTH COLOR PART # ACCESSORIES
420 MX 130 Natural 1231‑0885 520 MX 120 Natural 1231‑0889 520 X‑Ring 120 Natural 1231‑0891
428 MX 130 Natural 1231‑0887 520 MX 120 Gold 1231‑0890 520 X‑Ring 120 Gold 1231‑0892
RACKS &
REPLACEMENT MASTER LINKS SPECIFICATIONS ACCESSORIES
CHAIN LINK TYPE COLOR PART # TYPE SIZE LENGTH TENSILE STRENGTH (KN) CONNECTING LINK TYPE
520 MX Clip Natural 1231‑0893 MX 420 130 23,1 Clip TRUNKS,
520 MX Clip Gold 1231‑0894 MX 428 130 22,2 Clip LUGGAGE &
520 X‑ring Clip Natural 1231‑0895 MX 520 120 39,7 Clip STORAGE
520 X‑ring Clip Gold 1231‑0896 MX Gold 520 120 39,7 Clip
520 X‑ring Rivet Natural 1231‑0897 X‑ring 520 120 37,8 Clip
X‑ring Gold 520 120 37,8 Clip BODY

ARMOR
DRIVE CHAIN
PU520PO, 525PO, 530PO PU520PX, 525PX, 530PX
1
•Features quad pin riveting, solid bushings and •Provides 1 /2 times longer wear life than an O‑ring chain HANDLEBARS
rollers, and tough O‑ring seals and 12 times longer wear life than a standard chain & CONTROLS
•Shot‑peened and pre‑stretched •Lower friction loss
•Recommended for motorcycles originally •Features quad pin riveting, solid bushings and rollers
equipped with O‑ring chains •Shot‑peened and pre‑stretched WHEEL
•520 chains include clip connecting link •Quality and durability at an affordable price ACCESSORIES
•525/ 530 chains include rivet connecting link •520 chains include clip connecting link HOW TO ORDER:
•525/ 530 chains include rivet connecting link Pro Series chain is available precut as listed or
CHAIN MAXIMUM ENGINE CC TENSILE STRENGTH (LB) CHAIN MAXIMUM ENGINE CC TENSILE STRENGTH (LB) bulk in 25‑ and 100‑foot rolls. Precut lengths BRAKES
520PO 650 8000 520PX 750 8500 are boxed and labeled, and include a clip‑type
525PO 750 8400 525PX 750 8800 connecting link. Replacement clip‑type and
530PO 900 9100 530PX 900 9100 rivet‑type connecting links are available. BELTS, CHAINS
& SPROCKETS
520 – CUT‑TO‑LENGTH CHAINS
NUMBER OF LINKS PO PX NUMBER OF LINKS PO PX NUMBER OF LINKS PO PX NUMBER OF LINKS PO PX
82 1222‑0217 1223‑0360 92 1222‑0222 1223‑0365 104 1222‑0227 1223‑0370 114 1222‑0232 1223‑0375
84 1222‑0218 1223‑0361 94 1222‑0223 1223‑0366 106 1222‑0228 1223‑0371 116 1222‑0233 1223‑0376 DRIVETRAIN
86 1222‑0219 1223‑0362 98 1222‑0224 1223‑0367 108 1222‑0229 1223‑0372 118 1222‑0234 1223‑0377
88 1222‑0220 1223‑0363 100 1222‑0225 1223‑0368 110 1222‑0230 1223‑0373 120 1222‑0235 1223‑0378
90 1222‑0221 1223‑0364 102 1222‑0226 1223‑0369 112 1222‑0231 1223‑0374 130 ‑ 1223‑0379 SUSPENSION

520 – CONNECTING CLIPS AND RIVETS 520 – BULK CHAINS
DESCRIPTION PO PX DESCRIPTION PO PX
Clip connecting link 1225‑0179 1225‑0185 30,5 m (100’) 1222‑0215 1223‑0358 ENGINE
Rivet connecting link 1225‑0180 1225‑0186 7,6 m (25’) 1222‑0216 1223‑0359

525 – CUT‑TO‑LENGTH CHAINS
NUMBER OF LINKS PO PX NUMBER OF LINKS PO PX NUMBER OF LINKS PO PX NUMBER OF LINKS PO PX FUEL/AIR
108 1222‑0238 ‑ 110 1222‑0239 1223‑0382 120 1222‑0240 1223‑0383 130 ‑ 1223‑0384 SYSTEMS

525 – CONNECTING CLIPS AND RIVETS 525 – BULK CHAINS
DESCRIPTION PO PX DESCRIPTION PO PX ELECTRICAL
Clip connecting link 1225‑0181 1225‑0187 30,5 m (100’) 1222‑0236 1223‑0380
Rivet connecting link 1225‑0182 1225‑0188 7,6 m (25’) 1222‑0237 1223‑0381

530 – CUT‑TO‑LENGTH CHAINS LIGHTING
NUMBER OF LINKS PO PX NUMBER OF LINKS PO PX NUMBER OF LINKS PO PX
100 1222‑0243 1223‑0387 110 1222‑0248 1223‑0392 120 1222‑0253 1223‑0397
102 1222‑0244 1223‑0388 112 1222‑0249 1223‑0393 130 1222‑0254 1223‑0398 RIDER
104 1222‑0245 1223‑0389 114 1222‑0250 1223‑0394 150 1222‑0389 1223‑0847 ACCESSORIES
106 1222‑0246 1223‑0390 116 1222‑0251 1223‑0395
108 1222‑0247 1223‑0391 118 1222‑0252 1223‑0396
530 – CONNECTING CLIPS AND RIVETS 530 – BULK CHAINS HARDWARE &

DESCRIPTION PO PX DESCRIPTION PO PX MERCHANDISING
Clip connecting link 1225‑0183 1225‑0189 30,5 m (100’) 1222‑0241 1223‑0385
Rivet connecting link 1225‑0184 1225‑0190 7,6 m (25’) 1222‑0242 1223‑0386 INDEX

SEE OUR SPROCKET AND CHAIN CONFIGURATOR AT HTTP://CHAINKIT.PARTSEUROPE.EU FOR A COMPLETE LIST OF FITMENTS.
All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 377
are new this year.
