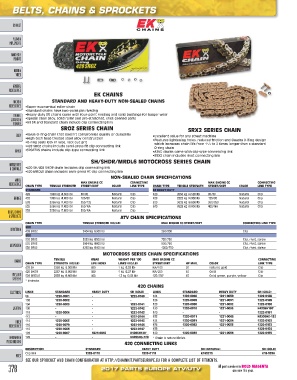

Page 378 - ATV 2017

BELTS, CHAINS & SPROCKETS

EXHAUST

PLOWS &
IMPLEMENTS

WINCHES &
MOUNTS

AUDIO &
VIDEO

GENERAL
ACCESSORIES
EK CHAINS
RACKS & STANDARD AND HEAVY‑DUTY NON‑SEALED CHAINS
ACCESSORIES •Super economical roller chain
•Standard chains have two‑point pin riveting
TRUNKS, •Heavy‑duty SR chains come with four‑point riveting and solid bushings for longer wear
LUGGAGE & •Special steel alloy, solid roller and pre‑stretched, shot‑peened parts
STORAGE •All SR and Standard chain include clip connecting link
SROZ SERIES CHAIN SRX2 SERIES CHAIN
BODY •Value O‑ring chain that doesn’t compromise quality or durability •Excellent value for any street machine
•High‑tech heat‑treated steel alloy construction •Features lightening holes, reduced friction and Quadra X‑Ring design
•O‑ring seals lock in lube, lock out grit which increases chain life from 1 /2 to 2 times longer than a standard
1
•428 SROZ chains include semi‑press fit clip connecting link O‑ring chain
ARMOR •520ATVS chains include clip‑type connecting link •ATVG chains come with clip‑type connecting link
•SRX2 chain includes rivet connecting link
SH/ SHDR/ MRDL6 MOTOCROSS SERIES CHAIN
HANDLEBARS
& CONTROLS •420 SH/ 428 SHDR chain includes clip connecting link
•520 MRDL6 chain includes semi‑press fit clip connecting link
NON‑SEALED CHAIN SPECIFICATIONS
WHEEL
ACCESSORIES CHAIN TYPE TENSILE STRENGTH MAX ENGINE CC COLOR CONNECTING CHAIN TYPE TENSILE STRENGTH MAX ENGINE CC COLOR CONNECTING
STREET/ DIRT
STREET/ DIRT
LINK TYPE
LINK TYPE
STANDARD SR HEAVY‑DUTY
420 1950 kg (4.300 lb) 80/80 Natural Clip 420 2050 kg (4.520 lb) 80/80 Natural Clip
BRAKES 428 1995 kg (4.400 lb) 100/80 Natural Clip 428 2222 kg (4.900 lb) 125/80 Natural Clip
520 3356 kg (7.400 lb) 250/ 125 Natural Clip 520 3628 kg (8.000 lb) 350/ 250 Natural Clip
525 3356 kg (7.400 lb) 350/NA Natural Clip 530 3628 kg (8.000 lb) 400/NA Natural Clip

BELTS, CHAINS 530 3356 kg (7.400 lb) 350/NA Natural Clip

& SPROCKETS ATV CHAIN SPECIFICATIONS
CHAIN TYPE TENSILE STRENGTH (KG/LB) MAX ENGINE CC STREET/ DIRT CONNECTING LINK TYPE
DRIVETRAIN SRO 2404 kg (5300 lb) 250/ 200 Clip
428 SROZ
SRX
520 SRX2 3855 kg (8500 lb) 750/ 750 Clip, rivet, screw
SUSPENSION 525 SRX2 3991 kg (8800 lb) 900/ 750 Clip, rivet, screw
530 SRX2 4263 kg (9400 lb) 1000/ 750 Clip, rivet, screw

MOTOCROSS SERIES CHAIN SPECIFICATIONS
ENGINE TENSILE WEAR WEIGHT PER 100 MAX ENGINE CC CONNECTING
CHAIN TYPE STRENGTH (KG/LB) LIFE INDEX LINKS (KG/LB) STREET/ DIRT HP MAX. COLOR LINK TYPE
420 SH 2358 kg (5.200 lb) 400 1 kg (2,22 lb) NA/ 100 30 Natural, gold Clip
428 SHDR 2267 kg (5.000 lb) 400 1 kg (2,27 lb) NA/ 200 40 Gold Clip
FUEL/AIR 520 MRDL6 2993 kg (6.600 lb) 400 1,3 kg (2,84 lb) 125/ 250 1 45 Gold, green, purple, yellow Clip
SYSTEMS 1 4‑stroke.
420 CHAINS
ELECTRICAL LINKS STANDARD HEAVY DUTY SH (GOLD) LINKS STANDARD HEAVY DUTY SH (GOLD)
86 1220‑0001 ‑ 1222‑0140 124 1220‑0008 1221‑0030 1222‑0148
100 1220‑0002 ‑ ‑ 126 1220‑0009 1221‑0031 1222‑0149
104 1220‑0003 ‑ 1222‑0141 128 1220‑0080 1221‑0032 1222‑0150
LIGHTING 108 ‑ ‑ 1222‑0142 130 1220‑0010 1221‑0033 K420SH130 1
110 1220‑0004 ‑ 1222‑0143 130 ‑ ‑ 1222‑0151
112 ‑ ‑ 1222‑0144 132 1220‑0011 1221‑0046 K420SHG‑132
RIDER 114 1220‑0005 ‑ 1222‑0145 134 1220‑0081 1221‑0034 1222‑0152
ACCESSORIES 116 1220‑0079 ‑ 1222‑0146 136 1220‑0082 1221‑0035 1222‑0153
118 1220‑0006 ‑ 1222‑0147 138 ‑ ‑ 1222‑0154
120 1220‑0007 1221‑0045 K420SH120 1 140 1220‑0083 1221‑0036 1222‑0155
HARDWARE & 120 ‑ ‑ K420SHG‑120 1 Chain is natural finish.
MERCHANDISING 420 CONNECTING LINKS
DESCRIPTION STANDARD HEAVY DUTY SH (NATURAL) SH (GOLD)
Clip link 1225‑0110 1225‑0115 K185215 K18‑5256
INDEX
SEE OUR SPROCKET AND CHAIN CONFIGURATOR AT HTTP://CHAINKIT.PARTSEUROPE.EU FOR A COMPLETE LIST OF FITMENTS.
