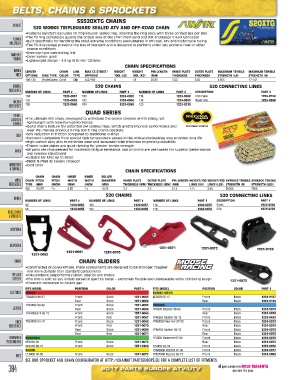

Page 384 - ATV 2017

BELTS, CHAINS & SPROCKETS

SS520XTG CHAINS
EXHAUST
520 WORKS TRIPLEGUARD SEALED ATV AND OFF‑ROAD CHAIN
•Features Sunstar’s Exclusive TG (TripleGuard) sealed ring, meaning the ring seals with three contact lips per side
PLOWS & •The TG ring completely guards the critical area of the chain from sand and dirt and keeps it well lubricated
IMPLEMENTS •Built specifically for handling the most extreme conditions encountered in off‑road, ATV and motorcycle racing
•The TG‑ring design prevents the loss of lubricant and is designed to perform under any extreme heat or other
course conditions
WINCHES & •Uses clip‑type connecting link
•Color option: gold
MOUNTS •Lightweight design – 1,8 kg (4 lb.) for 120 links
CHAIN SPECIFICATIONS
AUDIO & LENGTH CHAIN LINK MAX CC STREET/ WEIGHT WEIGHT PIN LENGTH INNER PLATE OUTER PLATE MAXIMUM TENSILE MAXIMUM TENSILE
VIDEO OPTIONS RING TYPE COLOR TYPE OFFROAD 100L (LB) 100L (KG) (MM) THICKNESS THICKNESS STRENGTH (LB) STRENGTH (N)
104‑120 TripleGuard Gold Clip 450/ 750 4 1,8 20,80 2,00 2,00 3.855 17.147

GENERAL 520 CHAINS 520 CONNECTING LINKS
ACCESSORIES NUMBER OF LINKS PART # NUMBER OF LINKS PART # NUMBER OF LINKS PART # DESCRIPTION PART #
104 1223‑0857 110 1223‑0862 116 1223‑0868 Clip‑type 1225‑0154
RACKS & 106 1223‑0858 112 1223‑0864 118 1223‑0869 Rivet link 1225‑0399
ACCESSORIES 108 1223‑0860 114 1223‑0866 120 1222‑0210

QUAD SERIES
TRUNKS,
LUGGAGE & •The ultimate ATV chain, developed to withstand the severe stresses of ATV riding, yet
STORAGE lightweight with maximum performance
•QUAD chains feature the patented Z44 sealing rings, which greatly improve performance and
wear life, making previous X‑ring and Z‑ring chains obsolete
BODY •50% reduction in friction compared to traditional O‑rings
•Constant lubrication from special high‑temperature grease in the critical pin/ bushing area provides long life
•High‑carbon alloy pins to minimize wear and increased roller thickness to prolong durability
•Thicker outer plates and quad‑riveting for greater tensile strength
ARMOR •All parts are shot‑peened for maximum fatigue resistance, and all chains are pre‑loaded for superior performance
and minimal adjustment
•Suitable for ATVs up to 900cc
•36000 N (7868 lb) tensile strength
HANDLEBARS •Gold color
& CONTROLS
CHAIN SPECIFICATIONS
CHAIN CHAIN INNER INNER ROLLER
WHEEL CHAIN PITCH PITCH WIDTH WIDTH DIAMETER INNER PLATE OUTER PLATE PIN LENGTH WEIGHT/ 100 WEIGHT/ 100 AVERAGE TENSILE AVERAGE TENSILE
ACCESSORIES TYPE (MM) (INCH) (MM) (INCH) (MM) THICKNESS (MM) THICKNESS (MM) (MM) LINKS (KG) LINKS (LBS) STRENGTH (N) STRENGTH (LBS)
520 15,875 5 /8 6,35 1 /4 10,23 2,2 2,2 21,4 1,11 3,88 36000 7868
520 CHAINS 520 CONNECTING LINKS
BRAKES
NUMBER OF LINKS PART # NUMBER OF LINKS PART # NUMBER OF LINKS PART # DESCRIPTION PART #
90 1224‑0052 100 1224‑0057 116 1224‑0075 Rivet 1225‑0224
96 1224‑0055 104 1224‑0058 118 1224‑0078 Clip 1225‑0225
BELTS, CHAINS
& SPROCKETS

DRIVETRAIN

SUSPENSION
1231‑0071 1231‑0072 1231‑0129
1231‑0067 1231‑0070
1231‑0063
ENGINE CHAIN SLIDERS
•Constructed of polyurethane, these components are designed to be stronger, tougher
and more durable than standard components
FUEL/AIR •Polyurethane outperforms rubber, plastics and metals
SYSTEMS •The side is split so you simply spread it apart to install – extremely flexible and unbreakable while still being tough 1231‑0073
•Excellent resistance to oil and gas
FITS MODEL POSITION COLOR PART # FITS MODEL POSITION COLOR PART #
ELECTRICAL HONDA SUZUKI (CONT)
TRX250R 86‑87 Front Black 1231‑0063 LT450R 06‑13 Front Black 1231‑0127
Rear Black 1231‑0064 Rear Black 1231‑0129
TRX250R 88‑89 Front Black 1231‑0065 YAMAHA
LIGHTING Rear Black 1231‑0064 YFS200 Blaster 88‑06 Front Black 1231‑0073
TRX400EX/X 99‑12 Front Black 1231‑0066 Rear Black 1231‑0074
Front Red 1231‑0067 YFM250 Raptor 08‑12 Front Black 1231‑0433
RIDER TRX450R 04‑13 Front Black 1231‑0068 YFM350X Warrior 87‑05 Front Black 1231‑0073
ACCESSORIES Front Red 1231‑0070 Rear Black 1231‑0074
Rear Black 1231‑0069 YFM350 Raptor 06‑12 Front Black 1231‑0073
Rear Red 1231‑0071 Rear Black 1231‑0074
HARDWARE & KAWASAKI YFZ350 Banshee 87‑06 Front Black 1231‑0073
MERCHANDISING KFX400 06 Front Black 1231‑0072 Rear Black 1231‑0075
KFX450 08‑12 Front Black 1231‑0160 YFZ450 04‑13 Front Black 1231‑0076
SUZUKI YFM660R Raptor 01‑05 Front Black 1231‑0077
INDEX LT‑Z400 06‑09 Front Black 1231‑0072 YFM700R Raptor 06‑13 Front Black 1231‑0092

SEE OUR SPROCKET AND CHAIN CONFIGURATOR AT HTTP://CHAINKIT.PARTSEUROPE.EU FOR A COMPLETE LIST OF FITMENTS.
384 2017 PARTS EUROPE ATV/UTV All part numbers in BOLD MAGENTA
