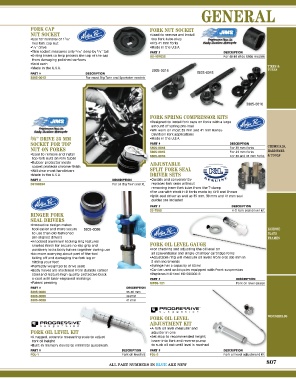

Page 809 - Oldbook 2017

GENERAL

FORK CAP FORK NUT SOCKET
NUT SOCKET •Used to remove and install
3
•Use for removal of 1 /8” top fork-tube plug
hex fork cap nut •Fits 41 mm forks
1
• /2” drive •Made in the U.S.A.
•Thin socket measures only /32” deep by /8” tall PART # DESCRIPTION
5
9
•O-ring insert to help protect the top of the cap DS‑197025 For 48-84 Wide Glide models
from damaging polished surfaces
•Sold each
•Made in the U.S.A. TIRES &
3805-0014 TUBES
PART # DESCRIPTION 3805-0015
3805‑0013 For most Big Twin and Sportster models

3805-0016

FORK SPRING COMPRESSOR KITS
•Designed to install fork caps on forks with a large
amount of spring pre-load
•Will work on most 39 mm and 41 mm Harley-
Davidson fork applications
3 /8” DRIVE 35 MM •Made in the U.S.A.
SOCKET FOR TOP PART # DESCRIPTION CHEMICALS,
NUT ON FORKS 3805‑0014 For 39 mm forks HARDWARE
•Used to remove and install 3805‑0015 For 41 mm forks & TOOLS
For 39 and 41 mm forks
3805‑0016
top fork nuts on fork tubes
•Rubber protector inside ADJUSTABLE
socket protects chrome finish
•Will clear most handlebars SPLIT FORK SEAL
•Made in the U.S.A. DRIVER SETS
PART # DESCRIPTION •Quickly and conveniently
DS196294 For all Big Twin and XL replaces fork seals without
removing inner fork tube from the T-clamp
•For use with stock H-D forks made by KYB and Showa
•Split-seal driver as well as 35 mm, 39 mm and 41 mm seal
guides are included
PART # DESCRIPTION
35‑7568 H-D fork seal driver kit
RINGER FORK
SEAL DRIVERS
•Innovative design makes
tool easier and more secure 3805-0086 LICENSE
to use than old-fashioned PLATE
pin-aligned drivers FRAMES
•Anodized aluminum locking ring features
knurled finish for secure no-slip grip and FORK OIL LEVEL GAUGE
positively locks body halves together during use •For checking and adjusting the oil level on
•No more worrying about part of the tool all conventional and single-chamber cartridge forks
falling off and damaging the fork leg or •Adjustable ring will measure oil levels from 0 to 300 mm in
hitting your feet 5 mm increments
•Perfectly weighted to drive seals •Syringe has a capacity of 60 ml
•Body halves are machined from durable carbon •Can be used on bicycles equipped with front suspension
steel and feature high-quality protective black •Replaces H-D tool HD-590000-B
e-coat with laser-engraved markings PART # DESCRIPTION
•Patent pending MP08‑121 Fork oil level gauge
PART # DESCRIPTION
3805‑0086 35-36 mm
3805‑0088 39 mm
3805‑0089 41 mm

FORK OIL LEVEL WINDSHIELDS
ADJUSTMENT KIT
•A fork oil level measurer and
FORK OIL LEVEL KIT adjuster in one
•A rugged, accurate measuring scale to adjust •Set stop to recommended height,
fork oil height lower into fork and reverse pump
•Built-in memory device to eliminate guesswork to suck oil out until level is reached
PART # DESCRIPTION PART # DESCRIPTION
FOL‑1 Fork oil level kit FOL‑2 Fork oil level adjustment kit

ALL PART NUMBERS IN BLUE ARE NEW 807
