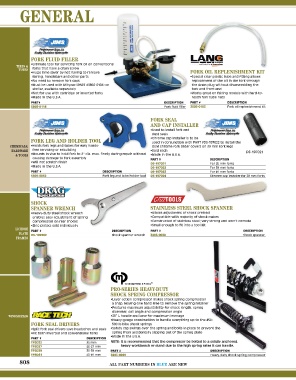

Page 810 - Oldbook 2017

GENERAL

FORK FLUID FILLER
•Ultimate tool for servicing fork oil on conventional
TIRES &
TUBES forks that have a drain screw
•Huge time saver by not having to remove FORK OIL REPLENISHMENT KIT
fairing, handlebars and other parts •Special clear plastic tube and fitting allows
•No need to remove fork caps replacement of the oil in the fork through
•Must be used with Mityvac (PART #3850-0104) or the drain plug without disassembling the
similar, available separately fork and front end
•Not for use with cartridge or inverted forks •Works great on fairing models with hard-to-
•Made in the U.S.A. reach fork tube nuts
PART# DESCRIPTION PART # DESCRIPTION
3805‑0114 Fork fluid filler 3805‑0103 Fork oil replenishment kit

FORK SEAL
AND CAP INSTALLER
•Used to install fork and
dust seals
FORK LEG AND HOLDER TOOL •Chrome cap installer is to be
used in conjunction with PART #DS-197022 to install the
CHEMICALS, •Holds fork legs and tubes for easy hands- OEM chrome fork slider covers on 39 mm fork legs
HARDWARE free servicing or rebuilding •Sold each DS-197021
& TOOLS •Mounts in vise to hold fork to 2” dia. max. firmly during repair without •Made in the U.S.A.
causing damage to fork assembly PART # DESCRIPTION
•Will not scratch finish DS‑197021 For 35 mm forks
•Made in the U.S.A. DS‑197022 For 39 mm forks
PART # DESCRIPTION DS‑197023 For 41 mm forks
3805‑0032 Fork leg and tube holder tool DS‑197024 Chrome cap installer for 39 mm forks

SHOCK
SPANNER WRENCH STAINLESS STEEL SHOCK SPANNER
•Heavy-duty steel shock wrench •Allows adjustment of shock preload
enables easy adjustment of spring •Compatible with majority of shock makes
compression on rear shocks •Constructed of stainless steel; very strong and won’t corrode
•Zinc-plated; sold individually •Small enough to fit into a tool kit
LICENSE PART # DESCRIPTION PART # DESCRIPTION
PLATE DS‑192282 Shock spanner wrench 3805‑0038 Shock spanner
FRAMES

PRO-SERIES HEAVY-DUTY
SHOCK SPRING COMPRESSOR
•Lever-action compressor makes shock spring compression
a snap, leaving one hand free to remove the spring retainer
•Features maximum adjustability for shock length, spring
diameter, coil angle and compression angle
WINDSHIELDS •28” L handle and base for maximum leverage
•Heavy-gauge construction to handle everything up to the 450-
FORK SEAL DRIVERS 500 lb bike shock springs
•Split fork seal drivers save headaches and seals •Safety cap swings over the spring and bolts in place to prevent the
•Fit both inverted and conventional forks spring from accidentally slipping out of the spring plate
PART # DESCRIPTION •Made in the U.S.A.
TFSD35 35 mm NOTE: It is recommended that the compressor be bolted to a solidly anchored,
TFSD37 36-37 mm heavy workbench or stand due to the high spring rates it can handle.
TFSD39 38-39 mm PART # DESCRIPTION
TFSD41 40-41 mm 3805‑0029 Heavy-duty shock spring compressor

808 ALL PART NUMBERS IN BLUE ARE NEW
