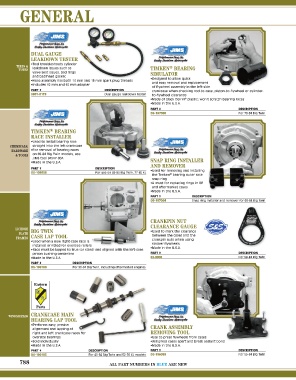

Page 790 - Oldbook 2017

GENERAL

DUAL GAUGE
LEAKDOWN TESTER
•Tool troubleshoots cylinder
TIRES & leakdown issues such as TIMKEN BEARING
®
TUBES
valve seat issues, bad rings SIMULATOR
and bad head gasket
•Hose assembly has both 14 mm and 18 mm spark plug threads •Designed to allow quick
•Includes 12 mm and 10 mm adapter and easy removal and replacement
of flywheel assembly in the left‑side
PART # DESCRIPTION crankcase when checking rod‑to‑case, piston‑to‑flywheel or cylinder‑
3801‑0173 Dual gauge leakdown tester to‑flywheel clearance
•Made of black Delrin plastic; won’t scratch bearing races
®
•Made in the U.S.A.
PART # DESCRIPTION
DS‑197080 For 70‑84 Big Twin

®
TIMKEN BEARING
RACE INSTALLER
•Used to install bearing race
CHEMICALS, straight into the left crankcase
HARDWARE •For removal of bearing races
& TOOLS on 69‑84 Big Twin models, use
JIMS tool 94547‑80A
•Made in the U.S.A. SNAP RING INSTALLER
AND REMOVER
PART # DESCRIPTION
DS‑198636 For use on 69‑84 Big Twin, 77‑85 XL •Used for removing and installing
®
the Timken bearing outer race
snap ring
•A must for replacing rings in OE
and aftermarket cases
•Made in the U.S.A.
PART # DESCRIPTION
DS‑197064 Snap ring installer and remover for 69‑84 Big Twin

CRANKPIN NUT
CLEARANCE GAUGE
LICENSE BIG TWIN
PLATE •Used to mark the clearance
FRAMES CASE LAP TOOL between the cases and the
•Used when a new right‑case race is crankpin nuts when using
installed or fitted for oversize rollers stroker flywheels
•Race must be lapped to true (or sized) and aligned with the left‑case •Made in the U.S.A.
pinion bushing centerline PART # DESCRIPTION
•Made in the U.S.A. 53‑0005 For 58‑84 Big Twin

PART # DESCRIPTION
DS‑196160 For 58‑84 Big Twin, including aftermarket engines

WINDSHIELDS CRANKCASE MAIN
BEARING LAP TOOL
•Performs easy, precise CRANK ASSEMBLY
alignment and lapping of
right and left crankcase races for REMOVING TOOL
oversize bearings •Use to press flywheels from cases
•Sold individually •Will press cases apart and break sealant bond
•Made in the U.S.A. •Made in the U.S.A.
PART # DESCRIPTION PART # DESCRIPTION
DS‑196105 For 40‑84 Big Twin and 52‑76 XL models DS‑196089 For 55‑84 Big Twin

788 ALL PART NUMBERS IN BLUE ARE NEW
