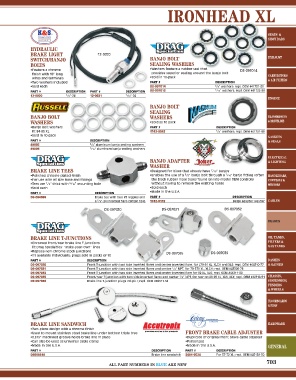

Page 705 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS
HYDRAULIC
BRAKE LIGHT 12‑0020
SWITCH/ BANJO BANJO BOLT EXHAUST
BOLTS SEALING WASHERS
•Feature a chrome •Washers feature a rubber seal that DS‑097014
finish with 19” long provides superior sealing around the banjo bolt CARBURETORS
wires and terminals •Sold in 10‑pack & AIR FILTERS
•Two washers included PART # DESCRIPTION
•Sold each DS‑097014 3 /8” washers; repl. OEM #41731‑88
PART # DESCRIPTION PART # DESCRIPTION DS‑097015 7 /16” washers; repl. OEM #41733‑88
12‑0020 3 /8”‑24 12‑0021 7 /16”‑24
ENGINE
BANJO BOLT
SEALING
BANJO BOLT WASHERS TRANSMISSION
WASHERS •Sold as 10 pack & DRIVELINE
•Banjo bolt washers PART # DESCRIPTION
fit 84‑85 XL 1742‑0042 3 /8” washers; repl. OEM #41731‑88
•Sold in 10‑pack GASKETS
PART # DESCRIPTION & SEALS
49005 3 /8” aluminum banjo sealing washers
49006 7 /16” aluminum banjo sealing washers

ELECTRICAL
BANJO ADAPTER & LIGHTING
WASHER
BRAKE LINE TEES •Designed for bikes that already have /16” banjos
7
7
3
•Polished chrome‑plated finish •Enables the use of a /8” banjo bolt through a /16” banjo fitting (often HANDLEBARS,
•For use with #3 size hose and fittings the black rubber hose types found on late‑model OEM controls) CONTROLS &
5
1
•Tees are /2” thick with /16” mounting hole without having to remove the existing hoses MIRRORS
•Sold each •Sold each
PART # DESCRIPTION •Made in the U.S.A.
DS‑094098 Brake tee with two #3 nipples and PART # DESCRIPTION
a 3 /8”‑24 inverted flare center hole 1742‑0112 Banjo adapter washer CABLES

DS‑097030 DS‑097031 DS‑097032
BRAKES
BRAKE LINE T-JUNCTIONS OIL TANKS,
•Chromed front/ rear brake line T‑junctions FILTERS &
fit Drag Specialties’ “make‑your‑own” lines GAS TANKS
•Replace non‑chrome stock junctions DS‑097035 DS‑097039
•T’s available individually; plugs sold in packs of 10
PART # DESCRIPTION DASHES
DS‑097030 Front T‑junction with two side inverted flares and center inverted flare, for L79‑81 XL, XLCH and XLS; repl. OEM #44310‑77 & GAUGES
DS‑097031 Front T‑junction with two side inverted flares and center 1 /8” NPT, for 78‑E79 XL, XLCH; repl. OEM #43308‑78
DS‑097032 Front T‑junction with two side inverted flares and center inverted flare for 82 XL, XLS; repl. OEM #44311‑80
DS‑097035 Front/ rear T‑junction with two side inverted flares and center 1 /8” NPT, for rear on 80‑85 XL, XLS, XLX; repl. OEM #42318‑51 CHASSIS,
DS‑097039 Brake line T‑junction plugs (10‑pk.); repl. OEM #42311‑58 SUSPENSION,
FENDERS
& WHEELS

FLOORBOARDS
& PEGS

BRAKE LINE SANDWICH HARDWARE
•Two‑piece design with a chrome finish
•Used to mount stainless steel brake line under bottom triple tree FRONT BRAKE CABLE ADJUSTER
•0,375” machined groove holds brake line in place •Duplicate of original front brake cable adjuster
•Can also be used as universal cable clamp •Parkerized
•Made in the U.S.A. •Made in the U.S.A. GENERAL
PART # DESCRIPTION PART # DESCRIPTION
DS096610 Brake line sandwich 2401‑0524 For 57‑72 XL; repl. OEM #45159‑50

ALL PART NUMBERS IN BLUE ARE NEW 703
