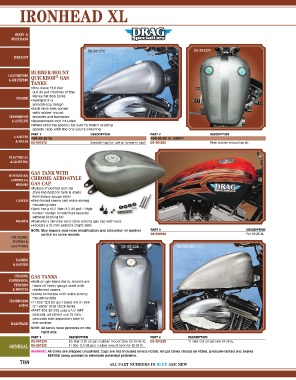

Page 710 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS

DS-391272 DS-391272
EXHAUST

RUBBER-MOUNT
CARBURETORS QUICKBOB GAS
®
& AIR FILTERS
TANKS
•One-piece 13,6 liter
(3,6 US gal.) replicas of the
Harley Fat Bob tanks
ENGINE
•Available in a
smooth-top design
•Each style tank comes
with rubber mount
TRANSMISSION brackets and hardware
& DRIVELINE •Speedometer not included
•When ordering speedo, be sure to match existing
speedo ratio with the one you’re ordering
PART # DESCRIPTION PART # DESCRIPTION
GASKETS FOR 82‑85 XL FOR 82‑85 XL (CONT)
& SEALS DS‑391272 Smooth-top for use w/ screw-in caps DS‑391285 Repl. rubber mounting kit

ELECTRICAL
& LIGHTING
GAS TANK WITH
HANDLEBARS,
CONTROLS & CHROME AERO-STYLE
MIRRORS GAS CAP
•Rubber-mounted bolt-on
style flat-bottom tank is made
from heavy-gauge steel
CABLES •Reinforced seams and extra-strong
mounting tabs
•Tank has a 12,5 liter (3,3 US gal.) “high-
tunnel” design to add fuel capacity
without looking tall
BRAKES •Features a chrome aero-style locking gas cap with keys
•Accepts a 22 mm petcock (right side)
NOTE: May require seat nose modification and relocation of ignition PART # DESCRIPTION
switch on some models. DS‑390340 For 82-85 XL
OIL TANKS,
FILTERS &
GAS TANKS DS-391224 DS-391223

DASHES
& GAUGES

CHASSIS, GAS TANKS
SUSPENSION, •Bolt-on gas tanks for XL models are
FENDERS made of heavy-gauge steel with
& WHEELS reinforced seams
•Come complete with extra-strong
mounting tabs
FLOORBOARDS •11 liter (2,9 US gal.) tanks are 51 mm
& PEGS (2”) wider than stock tanks
•PART #DS-391220 uses a /8” NPT
3
petcock, all others use 22 mm;
petcocks sold separately later in
HARDWARE this section
NOTE: All tanks have petcocks on the
right side.
PART # DESCRIPTION PART # DESCRIPTION
DS‑391224 8,5 liter (2,25 US gal.) rubber mount tank for 82-85 XL DS‑391220 11 liter (2,9 US gal.) for 54-78 XL
GENERAL DS‑391223 11 liter (2,9 US gal.) rubber mount tank for 82-85 XL

WARNING: All tanks are shipped unpainted. Caps are not included unless noted. All gas tanks should be fitted, pressure-tested and sealed
BEFORE being painted to eliminate potential problems.
708 ALL PART NUMBERS IN BLUE ARE NEW
