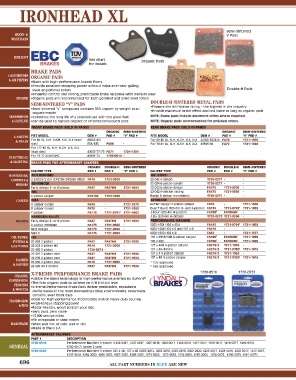

Page 698 - Oldbook 2017

IRONHEAD XL

Semi-Sintered
SEATS & V Pads
SISSY BARS

EXHAUST
See chart Organic Pads
for details
BRAKE PADS
CARBURETORS ORGANIC PADS
& AIR FILTERS
•Made with high-performance Aramid fibers
•Provide excellent stopping power without noise and rotor galling,
even on polished rotors Double-H Pads
•Fingertip control and strong, predictable brake response with medium wear
ENGINE •Organic pads are recommended for both polished and billet steel rotors
SEMI-SINTERED “V” PADS DOUBLE-H SINTERED METAL PADS
•Semi-sintered “V” compound contains 30% copper by weight in an •Feature the HH friction rating – the highest in the industry
•Provide maximum brake effect and last twice as long as organic pads
organic matrix
TRANSMISSION •Combines the long life of a sintered pad with the great feel NOTE: Brake pads include abutment shims where required.
& DRIVELINE •Can be used to replace organic or sintered compound pads NOTE: Organic pads recommended for polished rotors.
FRONT BRAKE PADS (SOLD IN PAIRS) REAR BRAKE PADS (SOLD IN PAIRS)
ORGANIC SEMI-SINTERED ORGANIC SEMI-SINTERED
GASKETS FITS MODEL OEM # PAD # “V” PAD # FITS MODEL OEM # PAD # “V” PAD #
& SEALS For 84 XL, XLH, XLCH, XLS, XLX (dual 43063-83/ For 82-85 XL, XLH, XLCH, XLS, XLX 44209-82/ 82A FA78 1721-1394
disc) 83A/ 83C FA94 - For 79-81 XL, XLH, XLCH, XLS, XLX 43395-80 FA72 1721-1392
For L77-83 XL, XLH, XLCH, XLS, XLX
(dual disc) 44032-77/79 FA71 1721-1391
ELECTRICAL For 73-77 XLH/ XLHC 44281-74 1720-0014 -

& LIGHTING BRAKE PADS FOR AFTERMARKET CALIPERS
ORGANIC DOUBLE-H SEMI-SINTERED ORGANIC DOUBLE-H SEMI-SINTERED
CALIPER TYPE PAD # PAD # “V” PAD # CALIPER TYPE PAD # PAD # “V” PAD #
HANDLEBARS, AP/ LOCKHEED ISR (CONT)
CONTROLS & 2-piston/2-pin (CP2195/ CP2696-38EO) FA16 1721-0206 - 22-043 4-piston 1720-0271 - -
MIRRORS BEHRINGER 22-034 6-piston (small) 1720-0271 - -
Early design 4- or 6-piston FA47 FA47HH 1721-1924 22-032 6-piston (large) FA175 1721-0593 -
EBC 22-042 6-pistion racing FA175 1721-0593 -
4-piston caliper FA2162 1721-1926 - Radial 6-piston monoblock 1720-0271 - -
CABLES GMA JAYBRAKE
A caliper (large) FA36 - 1721-1379 Earlier design 2-piston caliper FA76 - 1721-1393
B caliper (small) FA76 - 1721-1393 Dual 7 Quad (300-04) (2- and 4-piston) FA115 1721-0791 1 1721-1402
F caliper FA115 1721-0791 1 1721-1402 J-Four (300-44) (4-piston) FA188 2 FA188HH 1 -
HARRISON BILLET J-Six (300-64) (6-piston) 1720-0273 1721-0594 -
BRAKES Early design 4- or 6-piston FA47 FA47HH 1721-1924 PERFORMANCE MACHINE
2-piston (1296040) FA175 1721-0593 - 0052-1601 (124 x 4SL) FA115 1721-0791 1 1721-1402
Slim design FA175 1721-0593 - 0053-1604 (125 x 6 and 137 x 6) FA210 - -
Mini 6 FA175 1721-0593 - 0056-1600 (162 x 2) FA32 - 1721-1377
OIL TANKS, ISR 112 x 6RSB/ SSB 6-piston caliper FA190 2 FA190HH 1 1721-1409
FILTERS & 22-028 2-piston FA47 FA47HH 1721-1924 125 x 6QC FA190 2 FA190HH 1 1721-1409
GAS TANKS 22-033 2-piston HD FA16 1721-0206 - 127 x 4HR 4-piston caliper FA216/2 1721-1926 -
22-036 2-piston 1720-0271 - - 127 x 4R/ 4RSPH FA216/3 1721-0139 1 1721-1416
22-027 2-piston rear FA47 FA47HH 1721-1924 137 x 4 4-piston caliper FA216/2 1721-1926 -
22-029 2-piston rear FA47 FA47HH 1721-1924 137 x 4B 4-piston caliper FA216/3 1721-0139 1 1721-1416
DASHES 22-030 2-piston rear FA16 1721-0206 - 1 TÜV approved.
& GAUGES 22-025-XX 4-piston FA47 FA47HH 1721-1924 2 ABE approved.

X-TREME PERFORMANCE BRAKE PADS 1720-0518 1720-0523
CHASSIS, ®
SUSPENSION, •Utilize the latest technology in high-performance aramids by DuPont
FENDERS •The first organic pads to achieve an H/H friction level
•X-treme Performance Brake Pads deliver predictable, repeatable
& WHEELS performance in the most-demanding riding environments, mountains,
canyons, even track days
•Ideal for high-performance motorcycles and/or heavy-duty touring
FLOORBOARDS •High-torque stopping power
& PEGS
•Rotor friendly, won’t scratch your disc
•Zero dust, zero noise
•15,000 service miles
•Fit composite or steel rotors
HARDWARE •Work well hot or cold, wet or dry
•Made in the U.S.A.
AFTERMARKET CALIPERS
PART # DESCRIPTION
1720-0518 Performance Machine 4-piston (1206-0017, 1207-0017, 1207-0018, 1208-0017, 1208-0018, 1217-0017, 1219-0017, 1219-0317, 1219-0318,
GENERAL 1230-0017) (order 2 sets)
1720-0523 Performance Machine 4-piston 125 x 4R, 137 x 4R (0053-2915, 0053-2916, 0053-2919, 0053-2920, 1203-0017, 1203-0018, 1203-9017, 1213-0017,
1213-0018, 1264-0052, 1266-0052, 1267-0052, 1268-0052, 1271-0052, 1272-0052, 1274-0052, 1283-0052, 1274-0072, 1290-0073, 1291-0073)

696 ALL PART NUMBERS IN BLUE ARE NEW
