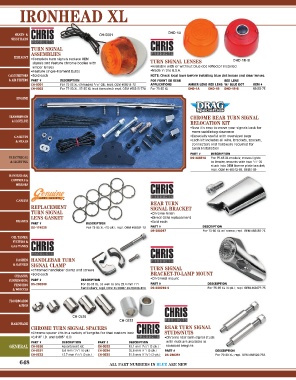

Page 650 - Oldbook 2017

IRONHEAD XL

DHD‑1A
SEATS & CH‑0001
SISSY BARS
TURN SIGNAL
ASSEMBLIES
EXHAUST
•Complete turn signals replace OEM TURN SIGNAL LENSES DHD‑1R‑B
signals and feature chrome bodies with
amber lenses •Available with or without blue dot reflector installed
•Feature single‑filament bulbs •Made in the U.S.A.
CARBURETORS •Sold each NOTE: Check local laws before installing blue dot lenses and clear lenses.
& AIR FILTERS PART # DESCRIPTION FOR FRONT OR REAR RED LENS
CH‑0001 For 73‑83 XL (threaded 5 /16”‑24); repl. OEM #68514‑73 APPLICATIONS AMBER LENS RED LENS W/ BLUE DOT OEM #
CH‑0002 For 77‑80 XL, 83‑85 XL (not threaded); repl. OEM #68515‑77A For 73‑85 XL DHD‑1A DHD‑1R DHD‑1R‑B 68483‑73

ENGINE

TRANSMISSION CHROME REAR TURN SIGNAL
& DRIVELINE RELOCATION KIT
•Now it’s easy to move your signals back for
more saddlebag clearance
GASKETS •Especially useful with oversized bags
& SEALS •Each kit includes all wire, brackets, spacers,
connectors and hardware required for
quick installation
PART # DESCRIPTION
ELECTRICAL DS‑280318 For 75‑85 XL models; moves lights
& LIGHTING to fender, mounts with two 1 /4”‑20
studs into OEM license plate bracket;
repl. OEM #s 68512‑89, 68430‑89

HANDLEBARS,
CONTROLS &
MIRRORS

CABLES REAR TURN
REPLACEMENT SIGNAL BRACKET
TURN SIGNAL •Chrome finish
LENS GASKET •Direct OEM replacement
BRAKES •Sold each
PART # DESCRIPTION
DS‑174528 For 73‑85 XL (10‑pk.); repl. OEM #68481‑73 PART # DESCRIPTION
DS‑280247 For 73‑85 XL w/ screw; repl. OEM #68480‑73

OIL TANKS,
FILTERS &
GAS TANKS

DASHES HANDLEBAR TURN
& GAUGES SIGNAL CLAMP
•Chromed handlebar clamp and screws TURN SIGNAL
CHASSIS, •Sold each BRACKET-TO-LAMP MOUNT
SUSPENSION, PART # DESCRIPTION •Chromed mount
FENDERS DS‑280248 For 82‑85 XL, as well as any 25,4 mm (1”) PART # DESCRIPTION
& WHEELS handlebars; repl. OEM #s 68487‑82/ 68486‑82A DS‑280249‑4 For 73‑85 XL (4‑pk.); repl. OEM #68477‑73

FLOORBOARDS
& PEGS

CH‑0536
CH‑0533
HARDWARE
CHROME TURN SIGNAL SPACERS REAR TURN SIGNAL
•Chrome spacer kits in a variety of lengths for that custom look STUDS/ NUTS
•0,414” I.D. and 0,685” O.D. •Chrome rear turn signal studs
PART # DESCRIPTION PART # DESCRIPTION with nuts are available in
GENERAL CH‑0536 Assortment kit CH‑0533 19,1 mm ( /4”) (2‑pk.) standard lengths
3
CH‑0531 6,4 mm ( 1 /4”) (4‑pk.) CH‑0534 25,4 mm (1”) (2‑pk.) PART # DESCRIPTION
CH‑0532 12,7 mm ( 1 /2”) (2‑pk.) CH‑0535 31,8 mm (1 1 /4”) (2‑pk.) DS‑280251 For 79‑80 XL; repl. OEM #68528‑77A

648 ALL PART NUMBERS IN BLUE ARE NEW
