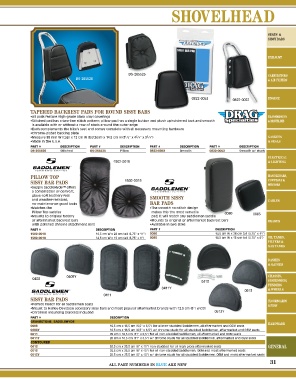

Page 33 - Oldbook 2017

SHOVELHEAD

SEATS &
SISSY BARS

EXHAUST

DS-265525 CARBURETORS
DS-265520 & AIR FILTERS

0822-0053 0822-0052 ENGINE

TAPERED BACKREST PADS FOR ROUND SISSY BARS
•All pads feature high-grade black vinyl coverings TRANSMISSION
•Stitched pad has a two-line stitch pattern; pillow pad has a single button and plush upholstered look and smooth & DRIVELINE
is available with or without a row of studs around the outer edge
•Each complements the bike’s seat and comes complete with all necessary mounting hardware
•Chrome-plated backing plate
•Measure 89 mm W (top) x 12 cm W (bottom) x 14,5 cm H (3 /2” x 4 /4” x 5 /4”) GASKETS
1
3
3
•Made in the U.S.A. & SEALS
PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION
DS‑265520 Stitched DS‑265525 Pillow 0822‑0053 Smooth 0822‑0052 Smooth w/ studs

ELECTRICAL
1502-0018 & LIGHTING
PILLOW TOP HANDLEBARS,
SISSY BAR PADS 1502-0019 CONTROLS &
•Supple SaddleHyde™ offers MIRRORS
a combination of comfort,
glove-soft leathery feel SMOOTH SISSY
and weather-resistant, CABLES
no-maintenance good looks BAR PADS
•Matches the •The smooth no-stitch design
Pillow Top saddles makes this the most versatile 0080
•Mounts to original factory pad; it will match any Saddlemen saddle 0085
or aftermarket backrest bars •Mounts to original or aftermarket backrest bars BRAKES
with polished chrome attachment bars •Available in two sizes
PART # DESCRIPTION PART # DESCRIPTION
1502‑0018 14,5 cm W x 28 cm tall (5,75” x 11”) 0080 14,5 cm W x 28 cm tall (5,75” x 11”)
1502‑0019 14,5 cm W x 15 cm tall (5,75” x 6”) 0085 14,5 cm W x 15 cm tall (5,75” x 6”) OIL TANKS,
FILTERS &
GAS TANKS

DASHES
& GAUGES

0408Y CHASSIS,
0408
0413 SUSPENSION,
FENDERS
0411Y
0513 & WHEELS
0411
SISSY BAR PADS FLOORBOARDS
•Perfect match for all Saddlemen seats & PEGS
•Mount to Harley-Davidson accessory sissy bars and most popular aftermarket brands with 12,5 cm (5”) width
•Chromed mounting brackets included 0513Y
PART # DESCRIPTION
GRAVESTONE, SADDLEHYDE HARDWARE
0408 16,5 cm x 16,5 cm (6,5” x 6,5”) for all non-studded Saddlemen, all aftermarket and OEM seats
0408Y 16,5 cm x 16,5 cm (6,5” x 6,5”) w/ chrome studs for all studded Saddlemen, aftermarket and OEM seats
0411 28 cm x 16,5 cm (11” x 6,5”) for all non-studded Saddlemen, all aftermarket and OEM seats
0411Y 28 cm x 16,5 cm (11” x 6,5”) w/ chrome studs for all studded Saddlemen, aftermarket and OEM seats
CONTOURED
0413 20,5 cm x 25,5 cm (8” x 10”) non-studded for all high gloss aftermarket seats GENERAL
0513 20,5 cm x 25,5 cm (8” x 10”) for all non-studded Saddlemen, OEM and most aftermarket seats
0513Y 20,5 cm x 25,5 cm (8” x 10”) w/ chrome studs for all studded Saddlemen, OEM and most aftermarket seats

ALL PART NUMBERS IN BLUE ARE NEW 31
