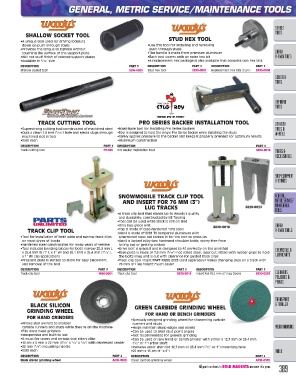

Page 389 - Tires 2017

GENERAL, METRIC SERVICE/MAINTENANCE TOOLS

STREET
SHALLOW SOCKET TOOL TIRES
•A unique tool used for driving locknuts STUD HEX TOOL
down on push-through studs •Use this tool for installing and removing
•Provides the torque to tighten without push-through studs
touching the surface of the support plate •The handle is made from premium aluminum DRAG/
•Will not scuff finish of colored support plates •Each tool comes with an extra hex bit V-TWIN TIRES
5
•Available in /16” size •A replacement hex package is also available that contains two hex bits
DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
Shallow socket tool SCW‑4505 Stud hex tool 3820‑0007 Replacement hex bits (2-pk.) 3820‑0008

SCOOTER
TIRES

OFFROAD
TIRES

TRACK CUTTING TOOL PRO SERIES BACKER INSTALLATION TOOL ATV/UTV
•Superstrong cutting tool constructed of machined steel •Must-have tool for installing Pro Series Backers TIRES &
5
•Cuts a clean 7,9 mm ( /16”) hole and ejects slugs through •Tool is designed to hold the single Pro Series backer while installing the studs WHEELS
machined slot in tool •Safely applies pressure to the backer and keeps it properly oriented for optimum results
•Sold each •Aluminum construction
DESCRIPTION PART # DESCRIPTION PART #
Track cutting tool FT‑146 Pro Backer installation tool 3820‑0016 TUBES &

ACCESSORIES

SHOP EQUIPMENT
& STANDS

SNOWMOBILE TRACK CLIP TOOL GENERAL,
AND INSERT FOR 76 MM (3”) METRIC SERVICE/
LUG TRACKS 3820‑0023 MAINTENANCE
TOOLS
•A track clip tool that stands up to Woody’s quality
and durability; constructed by KB Tooling
•Tool can be used while track is still on sled
•Only two-piece unit 3820‑0018 DRAG/
TRACK CLIP TOOL •Top is made of case-hardened 1018 steel V-TWIN TOOLS
•Anvil is made of 6061 T6 tempered aluminum with
•Tool for installation of both wide and narrow track clips a hardened steel ball locked in for the bolt to press on
on most types of tracks •Anvil is locked in by two hardened shoulder bolts; worry-free from
•Hardened steel construction for many years of service falling out or getting cocked
•Tool includes bending blocks for both narrow 25,4 mm L •Drive bolt is grade 8 and is designed to fit perfectly on the anvil ball CHEMICALS &
1
5
x 25,4 mm W (1” L x 1” W) and 38,1 mm x 25,4 mm (1 /2” L •Base plate is made of 7,9 mm ( /16”) hot rolled steel, laser cut, fitted with rubber grips to hold
x 1” W) clip applications the bolts snug and is cut with clearance for guided track clips LUBRICANTS
•Pressure plate is slotted to allow for easy placement •Track clip tool insert PART #3820-0023 (sold separately) makes changing clips on a track with
and removal of the tool 76 mm (3”) lug height much easier
DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
Track clip tool 1604‑0001 Track clip tool 3820‑0018 Insert for 76,2 mm (3”) lug tracks 3820‑0023 CLEANERS,
POLISHES &
PAINTS

TRANSPORT
BLACK SILICON GREEN CARBIDE GRINDING WHEEL & TRAILER
GRINDING WHEEL FOR HAND OR BENCH GRINDERS
FOR HAND GRINDERS
•Specially designed grinding wheel for sharpening carbide
•Allows sled owners to sharpen runners and studs
carbide runners and studs while they’re on the machine •Helps maintain sharp edges and points MERCHANDISING
•Fits most hand grinders •Can be used to alter stud point angles
•Inexpensive and built to last •Not recommended for general grinding
•A must for racers and serious trail riders alike •Can be used on any hand or bench grinder with either a 12,7 mm or 25,4 mm
1
•10 cm x 6 mm x 22 mm (4 /2” x /4” x /8”) with depressed center ( /2” or 1”) arbor shaft
1
7
1
•22 mm ( /8”) mounting handle •Includes arbor shim for 12,7 mm or 25,4 mm ( /2” or 1”) mounting hole
7
1
•Sold each •25 mm x 15 cm (1” x 6”) INDEX
DESCRIPTION PART # DESCRIPTION PART #
Black silicon grinding wheel AGW‑4500 Green carbide grinding wheel AGW‑4100

389
All part numbers in BOLD MAGENTA are new this year.
