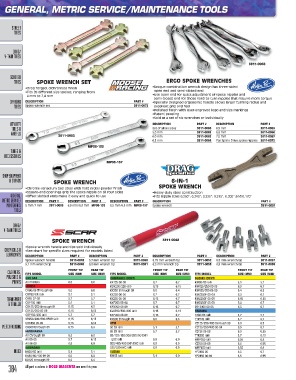

Page 384 - Tires 2017

GENERAL, METRIC SERVICE/MAINTENANCE TOOLS

STREET
TIRES

DRAG/
V-TWIN TIRES
3811‑0068

SCOOTER
TIRES SPOKE WRENCH SET ERGO SPOKE WRENCHES
•Drop forged, dichromate finish •Unique combination wrench design has three-sided
•Fits 20 different size spokes, ranging from open end and semi-closed end
4 mm to 7,4 mm •Use open end for quick adjustment of spoke nipples and
semi-closed end for those hard-to-turn nipples that require more torque
OFFROAD DESCRIPTION PART # •Specially designed ergonomic handle allows larger turning radius and
TIRES Spoke wrench set 3811‑0072 excellent grip and feel
•Polished finish with laser-engraved logo and size markings
•Patent pending
•Sold as a set of six wrenches or individually
ATV/UTV DESCRIPTION PART # DESCRIPTION PART #
TIRES & Set of all six sizes 3811‑0068 6,5 mm 3811‑0065
WHEELS 3811‑0003 5,0 mm 3811‑0062 6,8 mm 3811‑0066
3811‑0063
6,0 mm
7,0 mm
3811‑0067
6,3 mm 3811‑0064 For Spline Drive spoke nipples 3811‑0075

MP08‑133
TUBES &
ACCESSORIES
MP08‑157
SHOP EQUIPMENT
& STANDS SPOKE WRENCH 6‑IN‑1
•Chrome-vanadium tool steel with hard nickel-pewter finish SPOKE WRENCH
•Square-end openings grip the spoke nipple on all four sides •Heavy-duty steel construction
GENERAL, •Offset slotted ends make it easy and quick to use •Fits nipple sizes 0,250”; 0,240”; 0,225”; 0,215”, 0,200” and 0,170”
METRIC SERVICE/ DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
MAINTENANCE 5 mm/7 mm 3811‑0003 6,0 mm/6,3 mm MP08‑133 6,5 mm/6,8 mm MP08‑157 Spoke wrench 3811‑0081
TOOLS

DRAG/
V-TWIN TOOLS

SPOKE WRENCH 3811‑0048
•Spoke wrench handle and tips sold individually
CHEMICALS & •See chart for specific sizes required for models listed
LUBRICANTS DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
Spoke wrench handle 3811‑0048 5,7 mm wrench tip 3811‑0050 6,15 mm wrench tip 3811‑0052 6,8 mm wrench tip 3811‑0057
5,1 mm wrench tip 3811‑0049 6,0 mm wrench tip 3811‑0051 6,3 mm wrench tip 3811‑0053 6,9 mm wrench tip 3811‑0058
FRONT TIP REAR TIP FRONT TIP REAR TIP FRONT TIP REAR TIP
CLEANERS, FITS MODEL SIZE (MM) SIZE (MM) FITS MODEL SIZE (MM) SIZE (MM) FITS MODEL SIZE (MM) SIZE (MM)
POLISHES & GAS GAS KAWASAKI (CONT) SUZUKI (CONT)
PAINTS All models 6,0 6,0 KX125 00-08 6,7 6,7 RM80/85 (all) 5,1 5,1
HONDA KDX200/ 220 (all) 6,15 6,15 RM125/ 250 00-05 6,3 6,7
CR80/85 through 06 6,0 6,0 KX250 through 99 6,0 6,4 RM125/ 250 06-09 6,4 6,8
CRF80/XR (all) 5,1 5,1 KX250 00-04 6,7 6,7 RMZ250F 00-04 6,3 6,7
TRANSPORT CR85 07-09 5,7 5,7 KX250 05-08 6,15 6,7 RMZ250F 05-09 6,15 6,55
& TRAILER CRF100 (all) 5,1 5,1 KXF250 99-04 6,7 6,7 RMZ450F 05-09 6,4 6,7
CR125/ 250 through 01 6,15 6,3 KFX250 06-09 6,15 6,7 DR-Z400 00-05 6,3 6,7
CR125/ 250 02-09 6,15 6,55 KLX250/ 300/ 400 (all) 6,15 6,15 YAMAHA
CRF150/ 230 (all) 5,7 5,7 KXF450 06-09 6,15 6,7 YZ80/85 (all) 5,7 5,7
XR250/ 400/ 600/ 650R (all) 6,15 6,15 KX500 through 99 6,0 6,3 TTR125 (all) 5,7 5,7
CRF450 02-09 6,15 6,55 KTM YZ125/ 250/ 400 through 99 6,0 6,3
MERCHANDISING CR500 through 01 6,15 6,3 50 SX (all) 5,1 5,1 YZ125/ 250/ 400 00-04 6,3 6,7
HUSQVARNA 65 SX (all) 5,7 5,7 YZ125 05-08 6,3 6,55
All through 99 6,3 6,3 85/ 125/ 150/ 200/ 250 SX/ SXF/ TTR250 (all) 5,7 6,15
All 00-05 5,7 6,15 EXC (all) 6,9 6,9 WRF250 (all) 6,55 6,4
All 06-09 6,9 6,9 300/ 400/ 450 SXF/ EXC (all) 6,9 6,9 YZ250 05-09 6,3 6,55
KAWASAKI 525/ 530 EXC (all) 6,9 6,9 WRF450 (all) 6,55 6,9
INDEX KX60/65 (all) 5,1 5,1 SUZUKI YFZ450 05 6,3 6,7
KX80/85/ 100 99-09 6,0 6,0 RM65 (all) 5,1 6,0 YFZ450 06-09 6,3 6,55
KX125 through 99 6,0 6,4

384 All part numbers in BOLD MAGENTA are new this year.
