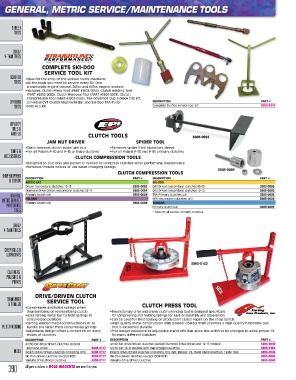

Page 390 - Tires 2017

GENERAL, METRIC SERVICE/MAINTENANCE TOOLS

STREET
TIRES

DRAG/
V-TWIN TIRES

COMPLETE SKI‑DOO
SERVICE TOOL KIT
SCOOTER •Ideal for the shop or the serious home mechanic
TIRES •All the tools you need to service every Ski‑Doo
snowmobile engine (except 583cc and 617cc engine models)
•Includes: Clutch Press Tool (PART #3803‑0050), Clutch Holding Tool
(PART #3803‑0052), Clutch Removal Tool (PART #3803‑0078), Clutch
Compression Tool (PART #3803‑0085), TRA Governor Cup 3‑piece Clip Kit,
OFFROAD Universal CVT Clutch Alignment Bar and Ski‑Doo TRA Puller DESCRIPTION PART #
TIRES •Sold as a kit Complete Ski‑Doo service tool kit 3803‑0118

ATV/UTV
TIRES &
WHEELS CLUTCH TOOLS 3803‑0024
JAM NUT DRIVER SPIDER TOOL
•Easily removes clutch spider jam nut •Removes spider from stationary sleeve
TUBES & •For all Polaris P‑90 and P‑85 primary clutches •For all Polaris P‑90 and P‑85 primary clutches
ACCESSORIES CLUTCH COMPRESSION TOOLS
•Designed so that only one person is needed to compress clutches when performing maintenance
•Removes/ installs helixes or use when changing springs
CLUTCH COMPRESSION TOOLS 3803‑0089
SHOP EQUIPMENT DESCRIPTION PART # DESCRIPTION PART #
& STANDS ARCTIC CAT SKI‑DOO
Driven (secondary) clutches 12‑15 3803‑0092 QRS Driven (secondary) clutches 08‑09 3803‑0089
Diamond Drive Driven (secondary) clutches 05‑11 3803‑0091 QRS Driven (secondary) clutches 10‑15 3803‑0090
GENERAL, Primary clutch (all) 3803‑0024 1 TRA Primary clutches (all) 3803‑0088
METRIC SERVICE/ POLARIS 3803‑0024 1 RER (secondary) clutches (all) 3803‑0024 1
YAMAHA
Primary clutch (all)
MAINTENANCE Primary clutch (all) 3803‑0024 1
TOOLS 1 Also for all Comet primary clutches.

DRAG/
V-TWIN TOOLS

CHEMICALS &
LUBRICANTS

3803‑0132
CLEANERS,
POLISHES &
PAINTS

DRIVE/ DRIVEN CLUTCH
TRANSPORT SERVICE TOOL
& TRAILER CLUTCH PRESS TOOL
•Compresses and holds springs when
disassembling or reassembling clutch •Revolutionary drive and driven clutch servicing tool is designed specifically
•Uses strong metal bar to hold springs in for compressing and holding springs for ease of assembly and disassembly
compressed position •Can be used for field testing or production clutch repair on the shop bench
•Strong welded metal construction built to •High‑quality metal construction with powder coated finish provides a high‑quality functional tool
MERCHANDISING handle the strain from compressed springs that is extremely durable
•Adjustable design offers a correct fit on many •This design incorporates adjustable stand‑offs that allow the width to be changed to allow proper fit
makes of clutches for many different clutches
DESCRIPTION PART # DESCRIPTION PART #
Arctic Cat drive/ driven clutches (except Arctic Cat drive/ driven clutches (except Diamond Drive driven and 12‑17 models) 3803‑0049
Diamond Drive) 3803‑0117 Arctic Cat 16‑17 models with Rapid Response Drive 3803‑0132
INDEX Polaris drive/ driven clutches (including ATV) 3803‑0117 Polaris drive/ driven clutches (including ATV, RZR, Ranger, P2, TEAM Rapid Reaction, TEAM Tied) 3803‑0049
Ski‑Doo driven clutches (except RER) 3803‑0117 Ski‑Doo driven clutches (except OEM RER) 3803‑0049
Yamaha drive/ driven clutches 3803‑0117 Yamaha drive/ driven clutches 3803‑0049
390 All part numbers in BOLD MAGENTA are new this year.
