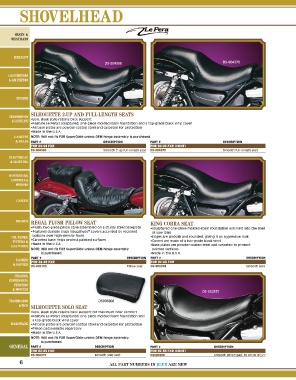

Page 8 - Oldbook 2017

SHOVELHEAD

SEATS &
SISSY BARS

EXHAUST
DS‑904368 DS‑904370

CARBURETORS
& AIR FILTERS

ENGINE

SILHOUETTE 2-UP AND FULL-LENGTH SEATS
TRANSMISSION
& DRIVELINE •Low, sleek style retains back support
•Feature Le Pera’s sculptured, one‑piece molded foam foundation and a top‑grade black vinyl cover
•All base plates are powder‑coated steel and carpeted for protection
•Made in the U.S.A.
GASKETS NOTE: Will not fit FXR SuperGlide unless OEM hinge assembly is purchased.
& SEALS PART # DESCRIPTION PART # DESCRIPTION
FOR 84‑94 FXR FOR 84‑94 FXR (CONT)
DS‑904368 Smooth 2‑up full‑length seat DS‑904370 Smooth full‑length seat

ELECTRICAL
& LIGHTING

HANDLEBARS,
CONTROLS &
MIRRORS

CABLES

BRAKES REGAL PLUSH PILLOW SEAT KING COBRA SEAT
•Plush, two‑piece pillow style assembled on a sturdy steel baseplate •Sculptured one‑piece molded‑foam foundation will melt into the lines
®
•Features durable black Naugahyde covers accented by recessed of your bike
OIL TANKS, buttons over high‑density foam •Edges are smooth and rounded, giving it an aggressive look
FILTERS & •Carpeted base helps protect painted surfaces •Covers are made of a top‑grade black vinyl
GAS TANKS •Made in the U.S.A. •Base plates are powder‑coated steel and carpeted to protect
NOTE: Will not fit FXR SuperGlide unless OEM hinge assembly painted surfaces
is purchased. •Made in the U.S.A.
PART # DESCRIPTION PART # DESCRIPTION
DASHES FOR 82‑83 FXR FOR 82‑83 FXR
& GAUGES
DS‑902103 Pillow seat DS‑903204 Smooth seat

CHASSIS,
SUSPENSION,
FENDERS
& WHEELS
DS‑904372
FLOORBOARDS DS905808
& PEGS SILHOUETTE SOLO SEAT
•Low, sleek style retains back support for maximum rider comfort
•Feature Le Pera’s sculptured, one‑piece molded foam foundation and
a top‑grade black vinyl cover
HARDWARE •All base plates are powder‑coated steel and carpeted for protection
•Pillion pad available separately
•Made in the U.S.A.
NOTE: Will not fit FXR SuperGlide unless OEM hinge assembly
is purchased.
GENERAL PART # DESCRIPTION PART # DESCRIPTION
FOR 82‑83 FXR FOR 82‑83 FXR (CONT)
1
DS‑904372 Smooth solo seat DS905808 Smooth pillion pad; 16 cm W (6 /4”)

6 ALL PART NUMBERS IN BLUE ARE NEW
