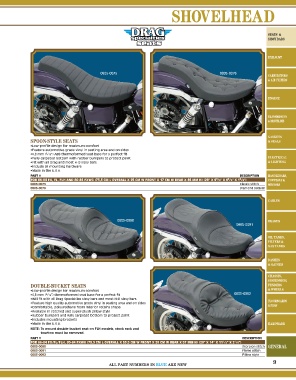

Page 11 - Oldbook 2017

SHOVELHEAD

SEATS &
SISSY BARS

EXHAUST

0805-0075 0805-0076
CARBURETORS
& AIR FILTERS

ENGINE

TRANSMISSION
& DRIVELINE

GASKETS
SPOON-STYLE SEATS & SEALS
•Low-profile design for maximum comfort
•Feature automotive-grade vinyl in seating area and on sides
3
•4,8 mm ( /16”) ABS thermoformed seat base for a perfect fit
•Fully carpeted bottom with rubber bumpers to protect paint ELECTRICAL
•Fit with all Drag and most H-D sissy bars & LIGHTING
•Include all mounting hardware
•Made in the U.S.A.
PART # DESCRIPTION HANDLEBARS,
3
FOR 66‑84 FX, FL, FLH AND 80‑84 FXWG (73,5 CM L OVERALL X 25 CM W FRONT X 17 CM W REAR X 44 MM H) (29” X 9 /4” X 6 /4” X 1 /4”) CONTROLS &
3
3
0805‑0075 Classic stitch MIRRORS
0805‑0076 Diamond pattern

CABLES

0805-0090 BRAKES
0805-0091

OIL TANKS,
FILTERS &
GAS TANKS

DASHES
& GAUGES

CHASSIS,
SUSPENSION,
DOUBLE-BUCKET SEATS FENDERS
•Low-profile design for maximum comfort & WHEELS
•4,8 mm ( /16”) thermoformed seat base for a perfect fit 0805-0092
3
•Will fit with all Drag Specialties sissy bars and most H-D sissy bars FLOORBOARDS
•Feature high quality automotive grade vinyl in seating area and on sides
•Comfortable, polyurethane foam interior retains shape & PEGS
•Available in stitched and super-plush pillow style
•Rubber bumpers and fully carpeted bottom to protect paint
•Includes mounting brackets
•Made in the U.S.A. HARDWARE
NOTE: To mount double-bucket seat on FLH models, stock rack and
tourbox must be removed.
PART # DESCRIPTION
1
1
FOR 66‑84 FX/FL/ FLH, 80‑84 FXWG (73,5 CM L OVERALL X 35,5 CM W FRONT X 29 CM W REAR X 57 MM H) (29” X 14” X 11 /2” X 2 /4”)
0805‑0090 Scorpion stitch GENERAL
0805‑0091 Flame stitch
0805‑0092 Pillow style

ALL PART NUMBERS IN BLUE ARE NEW 9
