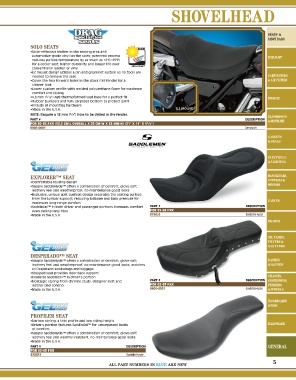

SHOVELHEAD

SEATS &
SISSY BARS
SOLO SEATS
•Solar-reflective leather in the seating area and
automotive-grade vinyl on the sides; patented process EXHAUST
reduces surface temperature by as much as 14°C (25°F)
for a cooler seat, higher durability and longer life over
conventional leather or vinyl
•EZ mount design utilizes a pin and grommet system so no tools are
needed to remove the seat CARBURETORS
•Cover the two forward holes in the stock FXR fender for a & AIR FILTERS
cleaner look
•Lower custom profile with molded polyurethane foam for maximum
comfort and styling
3
•4,8 mm ( /16”) ABS thermoformed seat base for a perfect fit ENGINE
•Rubber bumpers and fully carpeted bottom to protect paint
•Include all mounting hardware
•Made in the U.S.A. EZ Mount
1
NOTE: Require a 13 mm ( /2”) hole to be drilled in the fender. TRANSMISSION
PART # DESCRIPTION & DRIVELINE
FOR 82‑83 FXR (53,5 CM L OVERALL X 28 CM W X 38 MM H) (21” X 11” X 1 /2”)
1
0805‑0067 Smooth

GASKETS
& SEALS
ELECTRICAL
& LIGHTING

EXPLORER™ SEAT HANDLEBARS,
•Comfortable touring design CONTROLS &
•Supple SaddleHyde™ offers a combination of comfort, glove-soft MIRRORS
leathery feel and weatherproof, no-maintenance good looks
•Exclusive, unique split-cushion design separates the seating surface
from the lumbar support, reducing tailbone and back pressure for
maximum long-range comfort CABLES
•SaddleGel™ in both driver and passenger portions increases comfort PART # DESCRIPTION
even during long trips FOR 82‑83 FXR
•Made in the U.S.A. 8750JS SaddleHyde

BRAKES

OIL TANKS,
FILTERS &
GAS TANKS

DESPERADO™ SEAT
•Supple SaddleHyde™ offers a combination of comfort, glove-soft DASHES
leathery feel and weatherproof, no-maintenance good looks; matches & GAUGES
all Desperado saddlebags and luggage
•Stepped seat provides rider back support
•Features SaddleGel™ in driver’s portion CHASSIS,
•Nostalgic styling from chrome studs, designer skirt and PART # DESCRIPTION SUSPENSION,
leather-tied concho FOR 82‑83 FXR FENDERS
•Made in the U.S.A. 0805‑0021 SaddleHyde & WHEELS

FLOORBOARDS
& PEGS
PROFILER SEAT
•Narrow styling, a thin profile and low riding height
•Driver’s portion features SaddleGel™ for unsurpassed levels HARDWARE
of comfort
•Supple SaddleHyde™ offers a combination of comfort, glove-soft
leathery feel and weather-resistant, no-maintenance good looks
•Made in the U.S.A.
PART # DESCRIPTION GENERAL
FOR 82‑83 FXR
8785FJ SaddleHyde

ALL PART NUMBERS IN BLUE ARE NEW 5
