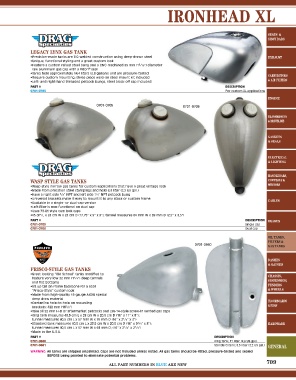

Page 711 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS

LEGACY LYNX GAS TANK
•Precision-made tanks are TIG-welded construction using deep-drawn steel EXHAUST
•Unique, functional styling and a great custom look
5
•Feature a custom raised steel bung and a CNC-machined 33 mm (1 /16”) diameter
raw aluminum gas cap with a Viton seal
®
•Tanks hold approximately 14,4 liters (3,8 gallons) and are pressure-tested
•Require custom mounting; three-piece weld-on steel mount kit included CARBURETORS
•Left- and right-hand threaded petcock bungs, steel block-off cap included & AIR FILTERS
PART # DESCRIPTION
0701‑0763 For custom XL applications

ENGINE
0701-0705 0701-0706
TRANSMISSION
& DRIVELINE

GASKETS
& SEALS

ELECTRICAL
& LIGHTING

HANDLEBARS,
WASP STYLE GAS TANKS CONTROLS &
•Wasp-style narrow gas tanks for custom applications that have a great vintage look MIRRORS
•Made from precision steel stampings and hold 8,3 liter (2,2 US gal.)
1
3
•Have a right side /8” NPT and left side /4” NPT petcock bung
•Universal brackets make it easy to mount it to any stock or custom frame
•Available in a single- or dual-cap version CABLES
•Left filler is non-functional on dual cap
•Uses 73-81 style cam lock caps
•45 cm L x 23 cm W x 23 cm D (17,75” x 9” x 9”); tunnel measures 64 mm W x 89 mm D (2,5” x 3,5”)
PART # DESCRIPTION BRAKES
0701‑0705 Single cap
0701‑0706 Dual cap

OIL TANKS,
FILTERS &
0701-0660 GAS TANKS

DASHES
& GAUGES
FRISCO-STYLE GAS TANKS
•Great looking “Old School” tanks modified to CHASSIS,
1
feature very low 32 mm (1 /4”) deep tunnels
and flat bottoms SUSPENSION,
•Sit up tall on frame backbone for a cool FENDERS
“Frisco-Style” custom look & WHEELS
•Made from high-quality 18-gauge AKDQ special
deep draw material
•Centerline hole-to-hole on mounting FLOORBOARDS
brackets: 422 mm (16 /8”) & PEGS
5
•Take all 22 mm H-D or aftermarket petcocks and L96-14-style screw-in vented gas caps
•King tank measures 40,5 cm L x 28 cm W x 20,5 cm D (16” x 11” x 8”);
tunnel measures 40,5 cm L x 57 mm W x 76 mm D (16” x 2 /4” x 3”)
1
•Standard tank measures 40,5 cm L x 23,5 cm W x 20,5 cm D (16” x 9 /4” x 8”); HARDWARE
1
1
1
tunnel measures 40,5 cm L x 57 mm W x 64 mm D; (16” x 2 /4” x 2 /2”)
•Made in the U.S.A.
PART # DESCRIPTION
0701‑0660 King tank; 11 liter (2,9 US gal.)
0701‑0661 Standard tank; 8,3 liter (2,2 US gal.) GENERAL

WARNING: All tanks are shipped unpainted. Caps are not included unless noted. All gas tanks should be fitted, pressure-tested and sealed
BEFORE being painted to eliminate potential problems.
709
ALL PART NUMBERS IN BLUE ARE NEW
