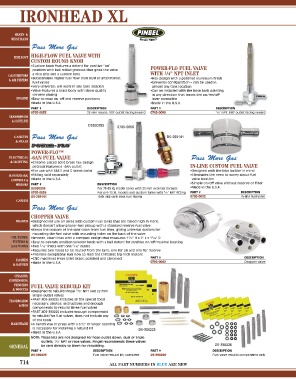

Page 716 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS

EXHAUST HIGH-FLOW FUEL VALVE WITH
CUSTOM ROUND KNOB
•Custom knob features a detent for positive “on” POWER-FLO FUEL VALVE
position with ball-milled grooves that gives the valve 1
CARBURETORS a nice grip and a custom look WITH /4” NPT INLET
& AIR FILTERS •Substantially higher fuel flow than OEM or aftermarket •Hex design with a polished aluminum finish
fuel valves •Universal configuration – can be used in
•Very universal; will work in any tank location almost any tank location
•Valve features a brass body with show-quality •Can be installed with the hose barb pointing
chrome plating in any direction that leaves the on/ res/ off
ENGINE •Easy-to-read on, off and reserve positions lever accessible
•Made in the U.S.A. •Made in the U.S.A.
PART # DESCRIPTION PART # DESCRIPTION
0705‑0033 22 mm round; 180° outlet facing inward 0705‑0098 1 /4” NPT, 180° outlet facing inward
TRANSMISSION
& DRIVELINE
DS390285 0705-0058

GASKETS DS-289141
& SEALS

POWER-FLO™
ELECTRICAL -6AN FUEL VALVE
& LIGHTING •Chrome-plated solid brass hex-design
petcock features a -6AN outlet IN-LINE CUSTOM FUEL VALVE
•For use with S&S E and G series carbs •Designed with the bike builder in mind
HANDLEBARS, •Fitting sold separately •Eliminates the need to worry about fuel
CONTROLS & •Made in the U.S.A. valve location
MIRRORS PART # DESCRIPTION •Simple on/ off valve without reserve or filter
DS390285 For 75-85 XL model tanks with 22 mm external threads •Made in the U.S.A.
0705‑0058 For pre-75 XL models and custom tanks with 3 /8” NPT fitting PART # DESCRIPTION
DS‑289141 -6AN S&S carb inlet fuel fitting 0705‑0032 In-line fuel valve
CABLES

CHOPPER VALVE
BRAKES •Designed for use on bikes with custom fuel tanks that are raised high in front,
which doesn’t allow proper fuel pickup with a standard reserve fuel valve
•Keeps the bottom of the tank clean from fuel lines, giving universal options for
mounting the fuel valve with mounting holes on the back of the valve
3
1
OIL TANKS, •Smooth, clean lines with a compact design that measures 1 /2” H x 2” L x 1 /8” D
FILTERS & •Easy-to-operate position selector knob with a ball detent for positive on/ off/ reserve locating
GAS TANKS •Two /16” inlets with one /16” outlet
5
5
•Requires two hoses to be routed from the tank: one for on and one for reserve
•Provides exceptional fuel flow to feed the thirstiest big-inch motors
DASHES •CNC-machined from billet brass, polished and chromed PART # DESCRIPTION
0705‑0042
Chopper valve
& GAUGES •Made in the U.S.A.
CHASSIS,
SUSPENSION,
FENDERS FUEL VALVE REBUILD KIT
& WHEELS •Designed to rebuild Pingel /8” NPT and 22 mm
3
single-outlet valves
FLOORBOARDS •PART #DS-390225 includes all the special tools
necessary, photos, instructions and enough
& PEGS
components to rebuild three fuel valves
•PART #DS-390226 includes enough components
to rebuild five fuel valves; does not include any
of the tools
1
HARDWARE •A bench vise or press with a 6 /2” or larger opening
is necessary for installing a rebuild kit DS-390225
•Made in the U.S.A.
NOTE: These kits are not designed for hose outlet down, dual or triple
outlets, /4” NPT or race valves. Pingel recommends these valves
1
GENERAL be sent directly to them for rebuilding. DS-390226
PART # DESCRIPTION PART # DESCRIPTION
DS‑390225 Fuel valve rebuild kit, complete DS‑390226 Fuel valve rebuild components only

714 ALL PART NUMBERS IN BLUE ARE NEW
