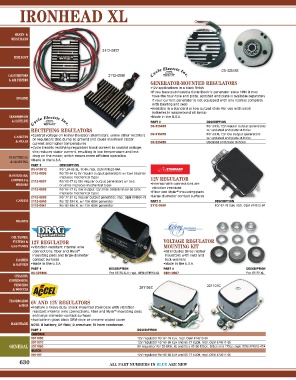

Page 632 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS

2112-0837
EXHAUST

DS-325483
CARBURETORS 2112-0840
& AIR FILTERS
GENERATOR-MOUNTED REGULATORS
•12V applications in a black finish
•If you have purchased a Cycle Electric generator since 1984 it may
have the four-hole end plate; updated end plate is available separately
ENGINE
if your current generator is not equipped with one (comes complete
with bearing and seal)
•Available in a standard or low output style (for use with small
batteries in wraparound oil tanks)
TRANSMISSION •Made in the U.S.A.
& DRIVELINE PART # DESCRIPTION
DS‑325483 For all XL 12V regular output generators
RECTIFYING REGULATORS w/ updated end plate (4-hole)
GASKETS •Control voltage on Harley-Davidson alternators, unlike other rectifiers DS‑313070 For all XL 12V low output generators
w/ updated end plate (4-hole)
& SEALS or regulators that dump to ground and cause maximum stator DS‑325485 Updated end plate (4-hole)
current and higher temperatures
•Cycle Electric rectifying regulators block current to control voltage;
this reduces stator current, resulting in low temperature and less
ELECTRICAL drag on the motor, which means more efficient operation
& LIGHTING •Made in the U.S.A.
PART # DESCRIPTION
DS‑313012 For L84-85 XL, 17,4A; repl. OEM #74523-84A
2112‑0836 For 58-64 XL 6V regular output generators w/ two brushes
HANDLEBARS, (replaces mechanical type)
CONTROLS & 2112‑0837 For 65-77 XL 12V regular output generators w/ two 12V REGULATOR
MIRRORS brushes (replaces mechanical type) •Internal wire connections are
2112‑0838 For 65-77 XL low output 12V small battery in 6V oil tank vibration resistant
®
(replaces mechanical type) •Fiber and Mylar insulating pads
2112‑0839 For 77-81 XL regular output generator; repl. OEM #74504-78 •Large-diameter contact surfaces
CABLES 2112‑0840 For 82-E84 XL w/ 10A (65A) generator PART # DESCRIPTION
2112‑0841 For 82-E84 XL w/ 13A (65B) generator 2112‑0560 For 67-78 XLH; repl. OEM #74510-64

BRAKES

OIL TANKS,
FILTERS & 12V REGULATOR VOLTAGE REGULATOR
GAS TANKS •Vibration-resistant internal wire MOUNTING KIT
®
connections, fiber and Mylar •Kit includes three rubber
insulating pads and large-diameter insulators with nuts and
DASHES contact surfaces lock washers
& GAUGES •Made in the U.S.A. •Made in the U.S.A.
PART # DESCRIPTION PART # DESCRIPTION
DS‑325496 For 67-78 XLH; repl. OEM #74510-64 2401‑0607 For 67-77 XL
CHASSIS,
SUSPENSION,
FENDERS 201107C
& WHEELS 201105C

FLOORBOARDS 6V AND 12V REGULATORS
& PEGS •Feature a heavy-duty, shock-mounted steel base with vibration-
®
resistant internal wire connections, fiber and Mylar insulating pads
and large-diameter contact surfaces
•Available in gloss black OEM-style or chrome-plated cover
HARDWARE NOTE: B battery; DF field; D armature; 61 horn condenser.
PART # DESCRIPTION
CHROME
201105C 12V regulator for 67-78 XLH; repl. OEM #74510-64
201107C 12V regulator for 65-66 XLH and 65-77 XLCH; repl. OEM #74511-65
GENERAL 201106C 6V regulator for 52-64 K, XL and XLH; 63-66 125cc, 165cc and 175cc; repl. OEM #74510-47A
BLACK
201107 12V regulator for 65-66 XLH and 65-77 XLCH; repl. OEM #74511-65

630 ALL PART NUMBERS IN BLUE ARE NEW
