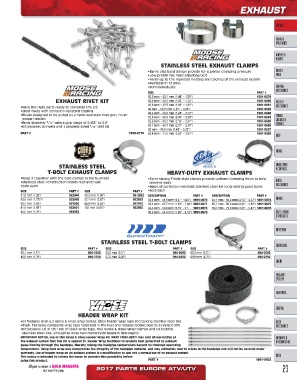

Page 23 - ATV 2017

EXHAUST

EXHAUST

PLOWS &
IMPLEMENTS

WINCHES &
MOUNTS
STAINLESS STEEL EXHAUST CLAMPS
•Barrel and band design provide for superior clamping pressure AUDIO &
•Low-profile hex head adjusting bolt VIDEO
•Holds up to the repeated heating and cooling of the exhaust system
•Available in 10 sizes
•Sold individually GENERAL
SIZE PART # ACCESSORIES
36,6 mm – 40,1 mm (1,44” – 1,58”) 1861-0679
EXHAUST RIVET KIT 39,6 mm – 43,2 mm (1,56” – 1,70”) 1861-0680 RACKS &
•Have the right parts ready to complete the job 42,9 mm – 47,5 mm (1,69” – 1,87”) 1861-0681 ACCESSORIES
46 mm – 50,6 mm (1,81” – 1,99”)
1861-0682
•Steel rivets with corrosion-resistant coating 49,3 mm – 50,8 mm (1,94” – 2,12”) 1861-0683
•Rivets designed to be pulled by a hand-operated rivet gun, no air 52,3 mm – 56,9 mm (2,06” – 2,24”) 1861-0684 TRUNKS,
power needed LUGGAGE &
•Rivet diameter /16” with a grip range of 0,125” to 0,6” 55,6 mm – 60,2 mm (2,19” – 2,37”) 1861-0685 STORAGE
3
3
•Kit includes 20 rivets and 1 properly sized /16” drill bit 58,7 mm – 63,3 mm (2,31” – 2,49”) 1861-0686
62 mm – 66,6 mm (2,44” – 2,62”) 1861-0687
PART # 1860-0176 66,8 mm – 71,4 mm (2,63” – 2,81”) 1861-0688 BODY

ARMOR
STAINLESS STEEL HANDLEBARS
& CONTROLS
T-BOLT EXHAUST CLAMPS HEAVY-DUTY EXHAUST CLAMPS
•Keep it together with the best clamps in the business •Extra-strong T-bolt-style clamps provide uniform clamping force to help WHEEL
•Stainless steel construction resists rust and heat prevent leaks
•Sold each •Made of corrosion-resistant stainless steel for long-lasting good looks ACCESSORIES
SIZE PART # SIZE PART # •Sold each
31,8 mm (1,25”) 952944 48,3 mm (1,90”) 95-2955 DESCRIPTION PART # DESCRIPTION PART #
34,9 mm (1,375”) 952948 52,1 mm (2,05”) 952958 38,1 mm - 41,6 mm (1,5” - 1,64”) 1861-0870 54,1 mm - 60,2 mm (2,13” - 2,37”) 1861-0874 BRAKES
38,1 mm (1,50”) 952950 88,9 mm (3,50”) 952975 41,4 mm - 47,7 mm (1,63” - 1,88”) 1861-0871 56,1 mm - 65,0 mm (2,21” - 2,56”) 1861-0875
41,9 mm (1,65”) 952951 102 mm (4,00”) 952983 44,4 mm - 50,8 mm (1,75” - 2”) 1861-0872 65,0 mm - 72,9 mm (2,56” - 2,87”) 1861-0876
44,5 mm (1,75”) 952952 49,3 mm - 55,4 mm (1,94” - 2,18”) 1861-0873 BELTS, CHAINS
& SPROCKETS

DRIVETRAIN

STAINLESS STEEL T-BOLT CLAMPS
SUSPENSION
SIZE PART # SIZE PART # SIZE PART #
38,1 mm (1,5”) 094-1500 50,8 mm (2,0”) 094-2000 63,5 mm (2,5”) 094-2500
44,5 mm (1,75”) 094-1750 57,2 mm (2,25”) 094-2250 69,9 mm (2,75”) 094-2750
ENGINE

FUEL/AIR
SYSTEMS

ELECTRICAL

LIGHTING
HEADER WRAP KIT
•Kit features laser-cut Vance & Hines wrap clamps, black header wrap tape and locking stainless steel ties RIDER
•Black, fiberglass composite wrap tape helps lock in the heat and reduces radiant heat by a realistic 50% ACCESSORIES
•Kit includes 7,6 m (25’) roll of black wrap tape, two Vance & Hines Wrap Clamps and six locking
stainless steel ties, enough to wrap two motorcycle headers thoroughly
IMPORTANT NOTICE: Use of this Vance & Hines Header Wrap Kit (PART #1861-0622) may void all warranties of HARDWARE &
the exhaust system that this Kit is applied to. Header Wrap functions to insulate heat generated by exhaust MERCHANDISING
gases flowing through the headpipe, thereby raising the headpipe temperature beyond its intended operating
temperature. Using heat wrap may compromise the integrity of the headpipe material, and may ultimately lead to cracks in the headpipe and will not be covered under
warranty. Use of header wrap on an exhaust system is a modification to and not a normal use of an exhaust system.
This notice is intended to inform the buyer to consider this possibility before INDEX
using this product. PART # 1861-0622
All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 23
are new this year.
