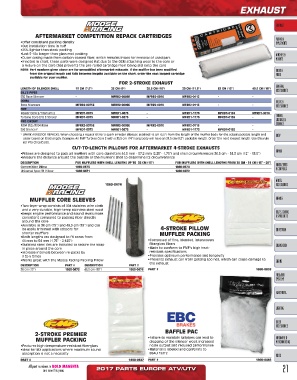

Page 21 - ATV 2017

EXHAUST

EXHAUST

AFTERMARKET COMPETITION REPACK CARTRIDGES PLOWS &
•Offer consistent packing density IMPLEMENTS
•Cut installation time in half
•25% lighter than stock packing
•Last 5-10x longer than glass mat packing WINCHES &
•Outer casing made from carbon-coated fiber, which remains intact for removal of used part MOUNTS
•If noted in chart, these parts were designed flat due to the OEM attaching wool to the core or
a fixture on the core that prevents the pre-rolled cartridge from being slid onto the core
NOTE: Part numbers given above are for unmodified aftermarket exhausts. If the muffler has been modified AUDIO &
from the original length and falls between lengths available on the chart, order the next longest cartridge VIDEO
available for your muffler.
FOR 2‑STROKE EXHAUST
LENGTH OF SILENCER SHELL 19 CM (7,5”) 23 CM (9”) 25,5 CM (10”) 29 CM (11,5”) 33 CM (13”) 40,5 CM (16”) GENERAL
ACCESSORIES
BILL’S PIPES
250 Race Silencer ‑ MFRR2‑0009E MFRR2‑0010 MFRR2‑0115 ‑ ‑
DOMA RACKS &
Race Silencers MFRR2‑0075E MFRR2‑0009E MFRR2‑0010 MFRR2‑0115 ‑ ‑ ACCESSORIES
FMF
Power Core 2/ Titanium 2 MFRD1‑0075 MFRD1‑0875 ‑ MFRD1‑1175 MFRD1‑0135 MFRD1‑0016 TRUNKS,
Turbine Core 2/Q 2-Stroke 1 MFRD1‑0075 MFRD1‑0875 ‑ MFRD1‑1175 MFRD1‑0135 ‑
PRO CIRCUIT LUGGAGE &
R304 Std./ R304 Race MFRR2‑0075E MFRR2‑0009E MFRR2‑0010 MFRR2‑0115 ‑ ‑ STORAGE
296 Silencer 1 MFRD1‑0075 MFRD1‑0875 ‑ MFRD1‑1175 MFRD1‑0135 ‑
1 SPARK ARRESTOR REPACKS: When choosing a repack kit for a spark arrestor silencer, subtract 14 cm (5,5”) from the length of the muffler body for the actual packable length and BODY
order based on that length. Example: An FMF Turbine Core 2 with a 35,5 cm (14”) long body will have an 21,5 cm (8,5”) packable length. Order the next longest length. Use this rule
for Pro Circuit also.
CUT‑TO‑LENGTH PILLOWS FOR AFTERMARKET 4‑STROKE EXHAUSTS
•Pillows are designed to pack all mufflers with core diameters 44,5 mm - 57,2 mm (2,25”- 1,75”) and shell circumferences 30,5 cm - 34,3 cm (12” - 13,5”) ARMOR
•Measure the distance around the outside of the muffler’s shell to determine its circumference
DESCRIPTION FOR MUFFLERS WITH SHELL LENGTHS UP TO 38 CM (15”) FOR MUFFLERS WITH SHELL LENGTHS FROM 38 CM ‑ 51 CM (15” ‑ 20”) HANDLEBARS
Competition Pillow 1860‑0573 1860‑0574 & CONTROLS
Universal Spec 31 Pillow 1860‑0471 1860‑0472

WHEEL
1860‑0474 ACCESSORIES

MUFFLER CORE SLEEVES BRAKES
•Two-layer wrap consists of 304 stainless wire cloth
and a very durable, high-temp stainless steel wool
•Keeps engine performance and sound levels more BELTS, CHAINS
& SPROCKETS
consistent compared to packing fiber directly
around the core
•Available in 38 cm (15”) and 48,5 cm (19”) and can
be easily trimmed with scissors for 4‑STROKE PILLOW DRIVETRAIN
shorter mufflers MUFFLER PACKING
•Both lengths are designed to fit cores from
44 mm to 54 mm (1,75” - 2,125”) •Composed of fine, blended, interwoven
•Stainless steel ties are included to secure the wrap fiberglass fibers SUSPENSION
in place around the core •Made to conform to FMF’s high heat-
•Increase intervals between re-packs by resistant specifications
3 to 5 times •Provides optimum performance and longevity
•Works great with the Moose Racing Packing Pillow •Prevents exhaust can from getting too hot, which can cause damage to ENGINE
DESCRIPTION PART # DESCRIPTION PART # the exhaust
38 cm (15”) 1860‑0473 48,5 cm (19”) 1860‑0474 PART # 1860‑0828
FUEL/AIR
SYSTEMS

ELECTRICAL

LIGHTING

RIDER
ACCESSORIES
2‑STROKE PREMIER BAFFLE PAC
MUFFLER PACKING •Failure to maintain tailpipes can lead to HARDWARE &
clogging of the silencer wool, increased
MERCHANDISING
•Features high temperature-resistant fiberglass noise output and reduced performance
•Ideal for MX applications where maximum sound •Material is labeled and conforms to
absorption is not a necessity BSAU 193T2
INDEX
PART # 1860‑0827 PART # 1860‑0436
All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 21
are new this year.
