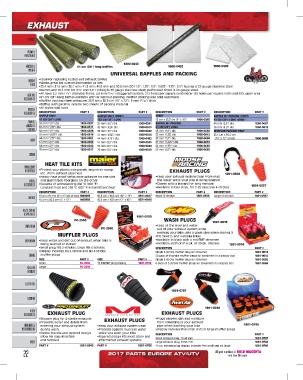

Page 22 - ATV 2017

EXHAUST

EXHAUST

PLOWS &
IMPLEMENTS

1860‑0245
WINCHES & 61 cm (24”) long baffles 1860‑0463 1860‑0468
MOUNTS
UNIVERSAL BAFFLES AND PACKING
AUDIO & •Ideal for replacing rusted-out exhaust baffles
VIDEO •Works great for custom fabrication as well
•25,4 mm; 31,8 mm; 38,1 mm; 41,3 mm; 44,5 mm and 50,8 mm OD (1,0”; 1,25”; 1,5”; 1,625”; 1,75”; 2,0”) tubing is 22-gauge stainless steel
•64 mm and 76,2 mm OD (2,5” and 3,0”) tubing is 16-gauge stainless steel; perforated sheet is 20-gauge steel
3
1
GENERAL •All have 3,2 mm ( /8”) diameter holes; 4,8 mm ( /16”) staggered centers, 213 holes per square centimeter (33 holes per square inch) and 40% open area
ACCESSORIES •61 cm (24”) long baffles available with or without packing; muffler packing also sold separately
5
•Muffler packing sheet measures 25,5 cm x 30,5 cm (10” x 12”); 8 mm ( /16”) thick
•Baffles with packing include two sheets of packing material
RACKS & •All styles sold each
ACCESSORIES DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
BAFFLE ONLY BAFFLE ONLY (CONT) SHEET BAFFLE W/ PACKING (CONT)
61 CM (24”) LONG 122 CM (48”) LONG 15 cm x 25,5 cm (6” x 10”) 1860‑0245 61 CM (24”) LONG (CONT)
TRUNKS, 25 mm (1,0”) dia. 1860‑0237 25 mm (1,0”) dia. 1860‑0241 BAFFLE W/ PACKING 64 mm (2,5”) dia. 1860‑0467
LUGGAGE & 32 mm (1,25”) dia. 1860‑0611 32 mm (1,25) dia. 1860‑0613 61 CM (24”) LONG 76 mm (3,0”) dia. 1860‑0618
STORAGE 38 mm (1,5”) dia. 1860‑0238 38 mm (1,5”) dia. 1860‑0242 25 mm (1,0”) dia. 1860‑0463 MUFFLER PACKING ONLY
41 mm (1,625”) dia. 1860‑0614 41 mm (1,625”) dia. 1860‑0616 32 mm (1,25) dia. 1860‑0612 25,5 cm x 30,5 cm
BODY 44 mm (1,75”) dia. 1860‑0461 44 mm (1,75”) dia. 1860‑0462 38 mm (1,5”) dia. 1860‑0464 (10” x 12”) sheet 1860‑0468
51 mm (2,0”) dia. 1860‑0239 51 mm (2,0”) dia. 1860‑0243 41 mm (1,625”) dia. 1860‑0615
64 mm (2,5”) dia. 1860‑0240 64 mm (2,5”) dia. 1860‑0244 44 mm (1,75”) dia. 1860‑0465
76 mm (3,0”) dia. 1860‑0617 76 mm (3,0”) dia. 1860‑0619 51 mm (2,0”) dia. 1860‑0466
ARMOR
HEAT TILE KITS
HANDLEBARS
& CONTROLS •Protect your plastic side panels, engine air scoop, EXHAUST PLUGS
etc., from exhaust pipe heat 1861‑0556
•Handy heat-proof strips have adhesive on one side •Keep your exhaust system clean from mud
WHEEL and aluminized fiberglass on the other and water while your bike is being washed
ACCESSORIES •Capable of withstanding 204 °C (400 °F) •Comes with a lanyard for easy removal 1861‑0557
constant heat and 260 °C (500 °F) intermittent heat •Available in two sizes, for 2-strokes and 4-strokes
DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
BRAKES 15 cm x 51 mm (6” x 2”) (set of two) M69995 30,5 cm x 30,5 cm (12” x 12”) 0521‑0927 Small (2-stroke) 1861‑0556 Large (4-stroke) 1861‑0557

15 cm x 30,5 cm (6” x 12”)
30,5 cm x 102 cm (12” x 40”)
0521‑0928
M69998

BELTS, CHAINS
& SPROCKETS
1861‑0159
PG‑2550 WASH PLUGS 1861‑0013
DRIVETRAIN •Keep all the mud and water
PG‑2560 out of your exhaust system while
washing your bike; also a great idea when storing it
MUFFLER PLUGS •Fit most 2- and 4-stroke bikes
SUSPENSION •Keep water and dirt out of exhaust when bike is •Available in black with a red FMF streamer
being washed or stored •Available each or in 6-pk. or 20-pk. displays 1861‑0014
•Small plug fits 2-strokes; large fits 4-strokes DESCRIPTION PART #
•Display includes six 2-stroke and six 4-stroke Single 4-stroke muffler plug w/ streamer 1861‑0013
ENGINE muffler plugs 20 pack of 4-stroke muffler plugs w/ streamers in a display box 1861‑0014
SIZE PART # SIZE PART # Single 2-stroke muffler plug w/ streamer 1861‑0585
Small PG‑2550 12 muffler plug display 1861‑0159 6-pack of 2-stroke muffler plugs w/ streamers in a display box 1861‑0586
FUEL/AIR Large PG‑2560
SYSTEMS
ELECTRICAL
1861‑0787
LIGHTING

1861‑0788
RIDER
ACCESSORIES EXHAUST PLUG EXHAUST PLUGS
•Silicone plug for 4-stroke exhausts EXHAUST PLUGS •Plugs prevent dirt and moisture
•Prevents water and debris from from collecting in your exhaust
HARDWARE & entering your exhaust system •Keep your exhaust system clean pipe when washing your bike 1861‑0794
MERCHANDISING during wash •Protects against mud and water •Display includes five small and six large muffler plugs
•Center handle and tapered design while you wash your bike DESCRIPTION PART #
allow for easy insertion •Tapered design fits most stock and Small exhaust plug, 18-40 mm 1861‑0787
INDEX and removal aftermarket exhaust systems Large exhaust plug, 32-55 mm 1861‑0788
PART # 1861‑0942 PART # 1861‑0708 11-pc. exhaust plug display, includes five small and six large 1861‑0794

22 2017 PARTS EUROPE ATV/UTV All part numbers in BOLD MAGENTA
are new this year.
