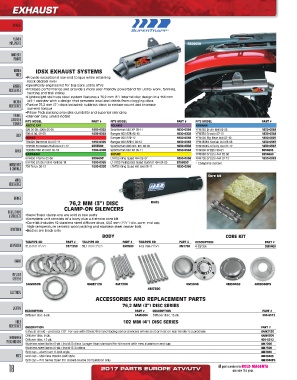

Page 18 - ATV 2017

EXHAUST

EXHAUST

PLOWS &
IMPLEMENTS 8356650

WINCHES &
MOUNTS

AUDIO & IDSX EXHAUST SYSTEMS
VIDEO
•Provide exceptional low‑end torque while retaining
stock decibel level
GENERAL •Specifically engineered for big‑bore utility ATVs
ACCESSORIES •Increase performance and provide a more user‑friendly powerband for utility work, farming,
hunting and trail riding
•Lightweight stainless steel system features a 76,2 mm (3”) internal disc design in a 114 mm
RACKS & (4,5”) canister with a design that prevents mud and debris from clogging discs
ACCESSORIES •Twelve 76,2 mm (3”) discs included; subtract discs to reduce sound and increase
low‑end torque
•Pillow Pack packing provides durability and superior silencing
TRUNKS, •Silencer only, unless noted
LUGGAGE & FITS MODEL PART # FITS MODEL PART # FITS MODEL PART #
STORAGE ARCTIC CAT POLARIS YAMAHA
400 04‑08, 400A 06‑08 1830‑0302 Sportsman 550 XP 09‑11 1830‑0364 YFM350 Bruin 4x4 03‑06 1830‑0368
BODY 500/A 04, 06‑09 1830‑0302 Ranger 800 RZR 08‑10 1830‑0303 YFM350 Grizzly 07‑10 1830‑0368
HONDA Ranger 800 RZR 12 1830‑0363 YFM400 Big Bear 4x4 07‑10 1830‑0307
TRX420 Rancher 4x4 07‑11 1830‑0305 Ranger 800 RZR S 09‑12 1830‑0363 YFM450FA Kodiak 4x4 03‑06 1830‑0367
TRX500 Foreman/ Rubicon 01‑12 8353500 Sportsman 800 H.O. EFI 08‑09 1830‑0304 YFM450FG Grizzly 4x4 07‑12 1830‑0367
ARMOR TRX650/ 680 Rincon 03‑11 1830‑0306 Sportsman 850 XP 09‑11 1830‑0364 YFM600 Grizzly 98‑01 8354605
KAWASAKI SUZUKI YFM660 Grizzly 4x4 02‑08 8354660
KVF650 Prairie 02‑06 8356650 1 LTA700 King Quad 4x4 05‑07 1830‑0366 YFM700 Grizzly 4x4 07‑12 1830‑0328
KVF750 Brute Force 4x4i 05‑11 1830‑0365 LT‑V700 Twinpeaks Quad Runner 4x4 04‑05 8356650 1 1 Complete system.
HANDLEBARS 750 Teryx 08‑12 1830‑0330 LTA750 King Quad AXi 4x4 08‑11 1830‑0366
& CONTROLS
Core kit
WHEEL
ACCESSORIES

BRAKES
76,2 MM (3”) DISC Body
CLAMP‑ON SILENCERS
BELTS, CHAINS
& SPROCKETS •SuperTrapp clamp‑ons are sold in two parts
•Complete unit consists of a body plus a 4‑stroke core kit
3
•Core kit includes 12 stainless steel diffuser discs, 44,5 mm (1 /4”)‑dia. core, end cap,
high‑temperature ceramic wool packing and stainless steel center bolt
DRIVETRAIN •Bodies are black only
BODY CORE KIT
TAILPIPE OD PART # TAILPIPE OD PART # TAILPIPE OD PART # DESCRIPTION PART #
SUSPENSION 31,8 mm (1 /4”) 3171250 38,1 mm (1 /2”) 3M1500 44,5 mm (1 /4”) 3M1750 4‑stroke 3M0400
3
1
1

ENGINE
FUEL/AIR
SYSTEMS
3AM6506 4AM2120 4M7206 4M3046 4M3046S 4M3046PS
4M7306
ELECTRICAL
ACCESSORIES AND REPLACEMENT PARTS
76,2 MM (3”) DISC SERIES
LIGHTING
DESCRIPTION PART # DESCRIPTION PART #
Diffuser disc, 6‑pk. 3AM6506 Diffuser disc, 12‑pk. 304‑6512

RIDER 102 MM (4”) DISC SERIES
ACCESSORIES DESCRIPTION PART #
Exhaust shield – protects 120°. For use with Street/ Trail and Racing series silencers where soot or heat on rear fender is a problem 4AM2120
HARDWARE & Diffuser disc, 6‑pk. 4AM6506
MERCHANDISING Diffuser disc, 12‑pk. 404‑6512
Stainless steel bolts (6‑pk.); hold 20 discs. Longer than standard for silencers with new aluminum end cap 4M7206
Stainless steel bolts (6‑pk.); hold 15‑34 discs 4M7306
End cap – aluminum 6‑bolt style 4M3046
INDEX End cap – stainless steel 6‑bolt style 4M3046S
End cap – Pro Series Open for closed course competition only 4M3046PS
18 2017 PARTS EUROPE ATV/UTV All part numbers in BOLD MAGENTA
are new this year.
