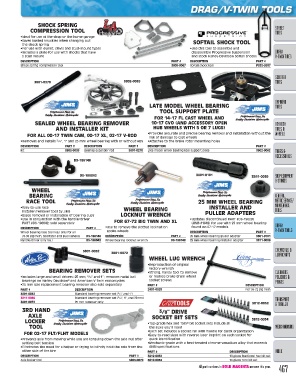

Page 467 - Tires 2017

DRAG/V-TWIN TOOLS

SHOCK SPRING
COMPRESSION TOOL STREET
TIRES
•Ideal for use at the shop or the home garage
•Saves busted knuckles when changing out SOFTAIL SHOCK TOOL
the shock spring
•For use with eyelet, clevis and stud-mount types •Use this tool to assemble and
•Includes a plate for use with shocks that have disassemble Progressive Suspension DRAG/
a stud mount and stock Harley-Davidson Softail shocks V-TWIN TIRES
DESCRIPTION PART # DESCRIPTION PART #
Shock spring compression tool 3805‑0067 Softail shock tool PS32‑5507

SCOOTER
3801‑0270 3802‑0035 TIRES

OFFROAD
LATE MODEL WHEEL BEARING TIRES
TOOL SUPPORT PLATE
FOR 14‑17 FL CAST WHEEL AND
SEALED WHEEL BEARING REMOVER 10‑17 CVO (AND ACCESSORY OPEN ATV/UTV
AND INSTALLER KIT HUB WHEELS WITH 5 OR 7 LUGS) TIRES &
FOR ALL 00‑17 TWIN CAM, 00‑17 XL, 02‑17 V‑ROD •Provides accurate and precise bearing removal and installation without the WHEELS
risk of damage to cast wheels
3
•Removes and installs /4”, 1” and 25 mm wheel bearing with or without ABS •Attaches to the brake rotor mounting holes
DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
Kit 3802‑0035 Bearing expander rod 3801‑0270 Late model wheel bearing tool support plate 3802‑0062 TUBES &
ACCESSORIES
DS‑196146

DS‑196042 3801‑0101 3811‑0039 SHOP EQUIPMENT
& STANDS

WHEEL
BEARING GENERAL,
RACE TOOL 25 MM WHEEL BEARING METRIC SERVICE/
•Easy-to-use race WHEEL BEARING INSTALLER AND MAINTENANCE
installer/ remover tool by JIMS PULLER ADAPTERS TOOLS
•Eases removal or installation of bearing cups LOCKNUT WRENCH
•Use in conjunction with the handle/ driver FOR 67‑72 BIG TWIN AND XL •Updates discontinued PART #DS-196295
PART #DS-196042; sold separately (JIMS #1042) for use with 25 mm wheel bearing DRAG/
DESCRIPTION PART # •Use to remove the slotted locknut on found on 07-17 models V-TWIN TOOLS
Wheel bearing race tool (ea.) only for all spoke wheels DESCRIPTION PART #
73-99 Big Twin, Sportster and Buell wheels DS‑196146 DESCRIPTION PART # 25 mm wheel bearing/ puller adapter 3801‑0101
Handle/ driver only (ea.) DS‑196042 Wheel bearing locknut wrench DS‑196148 25 mm wheel bearing/ installer adapter 3811‑0039

3801‑0032 3801‑0072 CHEMICALS &
LUBRICANTS
WHEEL LUG WRENCH
•Reproduction of original
factory wrench
BEARING REMOVER SETS •Strong, handy tool to remove CLEANERS,
•Includes large and small drivers: 25 mm, /4” and 1”; removes radial ball or replace brake drum wheel POLISHES &
3
bearings on Harley-Davidson and American V-Twin motorcycles socket screws PAINTS
®
•25 mm size replacement bearing remover also sold separately PART # DESCRIPTION
PART # DESCRIPTION 2401‑0528 For 36-72 Big Twin
3801‑0032 Standard bearing remover set ( 3 /4” and 1”)
3811‑0084 Standard bearing remover set ( 3 /4”, 1”, and 25mm) TRANSPORT
3801‑0072 25 mm remover only 3812‑0032 & TRAILER

3RD HAND 3 /8” DRIVE
AXLE SOCKET BIT SETS
LOCKER •Top-grade hex and Torx bit socket sets include all 3812‑0034
®
TOOL the sizes you’ll need MERCHANDISING
FOR 02‑17 FLT/ FLHT MODELS •Each set includes a socket rail with handle for quick organization
•Easy-to-read sizes with reverse laser imprint on each socket for
•Prevents axle from moving while you are torquing down the axle nut after quick identification
setting belt tension •Mechanic-grade with a heat-treated chrome vanadium alloy that exceeds
•Eliminates the need for a helper or trying to blindly hold the axle from the ANSI specifications
other side of the tire PART # DESCRIPTION INDEX
DESCRIPTION PART # 3812‑0032 10-piece fractional hex bit set
Axle locker tool 3805‑0070 3812‑0034 10-piece Torx bit set

467
All part numbers in BOLD MAGENTA are new this year.
