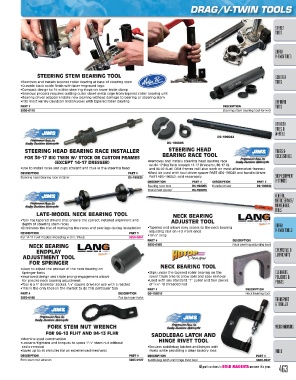

Page 463 - Tires 2017

DRAG/V-TWIN TOOLS

STREET
TIRES

DRAG/
V-TWIN TIRES

STEERING STEM BEARING TOOL SCOOTER
•Removes and installs tapered roller bearing at base of steering stem TIRES
•Durable black oxide finish with laser engraved logo
•Compact design to fit within steering stops on lower triple clamp
•Removal process requires cutting outer sheet metal cage from tapered roller bearing unit
•Bearing driver adapter installs new bearing without damage to bearing or steering stem
•Fits most Harley‑Davidson motorcycles with tapered roller bearing OFFROAD
PART # DESCRIPTION TIRES
3805‑0118 Steering stem bearing tool for H‑D

ATV/UTV
TIRES &
WHEELS
DS‑196042
DS‑196005
STEERING HEAD BEARING RACE INSTALLER STEERING HEAD TUBES &
FOR 36‑17 BIG TWIN W/ STOCK OR CUSTOM FRAMES BEARING RACE TOOL ACCESSORIES
(EXCEPT 14‑17 DRESSER) •Removes and installs steering head bearing race
on 84‑17 Big Twin (except 14‑17 Dressers), 86‑17 XL
•Use to install races and cups straight and true in the steering head and 94‑02 Buell OEM frames (will also work on most aftermarket frames)
DESCRIPTION PART # •Must be used with tool driver spacer PART #DS‑196029 and handle/ driver
Steering head bearing race installer DS‑198625 PART #DS‑196042; sold separately SHOP EQUIPMENT
DESCRIPTION PART # DESCRIPTION PART # & STANDS
Bearing race tool DS‑196005 Handle/ driver DS‑196042
Tool driver spacer DS‑196029
GENERAL,
METRIC SERVICE/
MAINTENANCE
TOOLS
LATE‑MODEL NECK BEARING TOOL NECK BEARING
•Tool has tapered drivers that ensure the correct installed alignment and ADJUSTER TOOL
depth of steering stem races DRAG/
•Eliminates the risk of damaging the races and bearings during installation •Tapered end allows easy access to the neck bearing V-TWIN TOOLS
DESCRIPTION PART # adjusting star on H‑D front ends
1
For 14‑17 FLHT models (including H‑D FL Trikes) 3850‑0361 •18 /2” long
PART # DESCRIPTION
NECK BEARING 3850‑0165 Neck bearing adjusting tool

ENDPLAY CHEMICALS &
ADJUSTMENT TOOL LUBRICANTS
FOR SPRINGER
•Used to adjust the preload of the neck bearing on NECK BEARING TOOL
Springer forks •Slips under the tapered roller bearing on the CLEANERS,
•Improved design and triple prong engagement allows lower triple tree to allow safe and easy removal POLISHES &
for precise neck bearing adjustment •Used with any standard “T” puller and two pieces PAINTS
5
•Tool is a 1” diameter socket, /8” square drive for use with a ratchet of /16”‑18 threaded rod
3
•This is the only tool on the market to do this particular task PART # DESCRIPTION
PART # DESCRIPTION DS‑196015 Neck bearing tool
3850‑0160 For Springer forks TRANSPORT

& TRAILER

FORK STEM NUT WRENCH MERCHANDISING
FOR 96‑13 FLHT AND 94‑13 FLHR SADDLEBAG LATCH AND
•Machine steel construction HINGE RIVET TOOL
1
•Loosens/ tightens and torques to specs 1 /2” stem nut without
radio removal •Secures saddlebag latches and hinges with
•Saves up to 45 minutes for an experienced mechanic rivets while providing a clean factory look INDEX
DESCRIPTION PART # DESCRIPTION PART #
Fork stem nut wrench 3805‑0107 Saddlebag latch and hinge rivet tool 3850‑0247

463
All part numbers in BOLD MAGENTA are new this year.
